INSTRUCTION MANUAL
LED SOLAR STREET LIGHT WITH SOLAR PANEL
TECHNICAL DATA
MODEL VT-ST63W VT-ST120W VT-ST180W
SKU 95532, 98241
95533, 98240,
98417
95534
SOLAR PANEL
WATTS
6W 8W 12W
LUMENS 800 lm 1000 lm 1200 lm
BEAM ANGLE 120° 120° 120°
LED CHIP TYPE 2835 2835 2835
NUMBER OF LEDs 60 120 180
CRI 70 70 70
LIFE SPAN 20000 Hours 20000 Hours 20000 Hours
ON/OFF CYCLE 50000 Times 50000 Times 50000 Times
MAXIMUM
MOUNTING
HEIGHT
3 Meter 4 Meter 5 Meter
OPERATIONAL
TEMPERATURE
-20°C to +60°C -20°C to +60°C -20°C to +60°C
BATTERY
CAPACITY
5000 mAh 9000mAh 10000mAh
BATTERY TYPE
LiFePO4 LiFePO4 LiFePO4
DC VOLTAGE DC 3.2V DC 3.2V DC 3.2V
CHARGING TIME 4-6 Hours 4-6 Hours 4-6 Hours
WORKING TIME 12-15 Hours 12-15 Hours 12-15 Hours
MATERIAL PC PC PC
DIMENSION 360x187x55mm 470x190x55mm 600x197x55mm
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully
before starting the installation and keep this manual handy for future reference. If you have any another query, please contact
our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best.
The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect
installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect
removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24
Hours a day would void the warranty. This product is warranted for manufacturing defects only.
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
Solar Panel & Solar Light
Solar charging
(The battery is in the lamp housing)
Intermal six angle screw fixation
Intermal six angle screw fixation
Solar charging
(The battery is in the lamp housing)
Remote Screw FixExpansion Screw

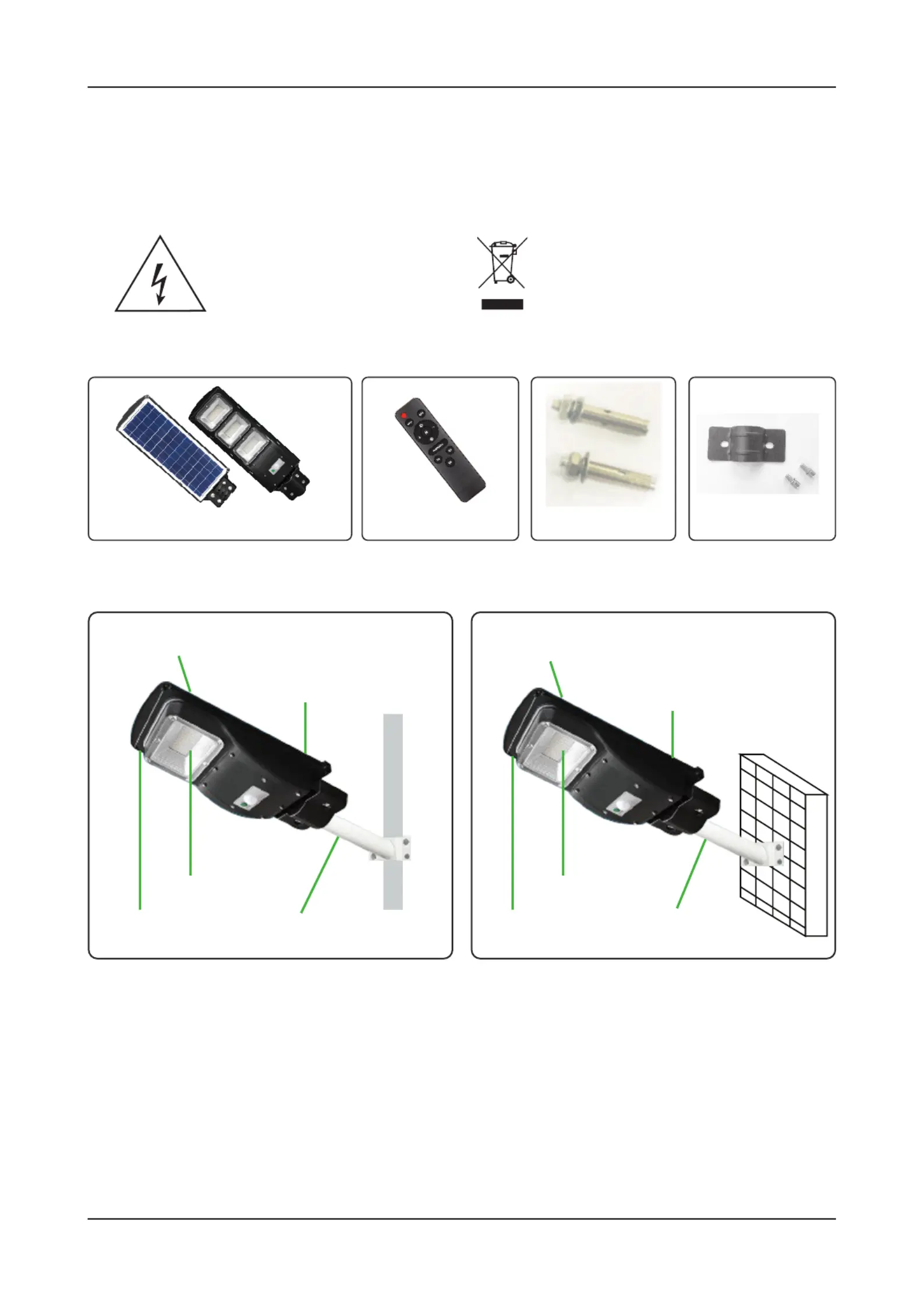

PACKAGE CONTENT
INSTALLATION INSTRUCTIONS
LAMP POST INSTALLATION WALL MOUNT INSTALLATION
• Before installing please remove all the parts to check if all are in good condition or not.
• Install the Arm Stand on a wall or on a Lamp Pole with the Expansion Screws
• Ensure the solar panel faces the sunlight. Adjust the angle using the inner six-angle screw to
maximize sun exposure.
• Aer installation test the light using the remote control.
• The remote control is designed with an operation distance of 8-10m
WARNING
1. Installation must be performed by a qualified electrician.
2. The light source of this luminaire is not replaceable; when the light source reaches its end of life
the whole luminaire shall be replaced.
Light Source
Light Source
Human remote
control module
Human remote
control module
Arm Stand
(For Wall/Pole Installation)
Arm Stand
(For Wall/Pole Installation)
Open when dark
Then comes to
Full light mode
High bright
OFF
Full light mode
Low bright
4 hour regular
6 hour regular
Open when dark
Then comes to
Sensor Mode
Half light mode
2 hour regular

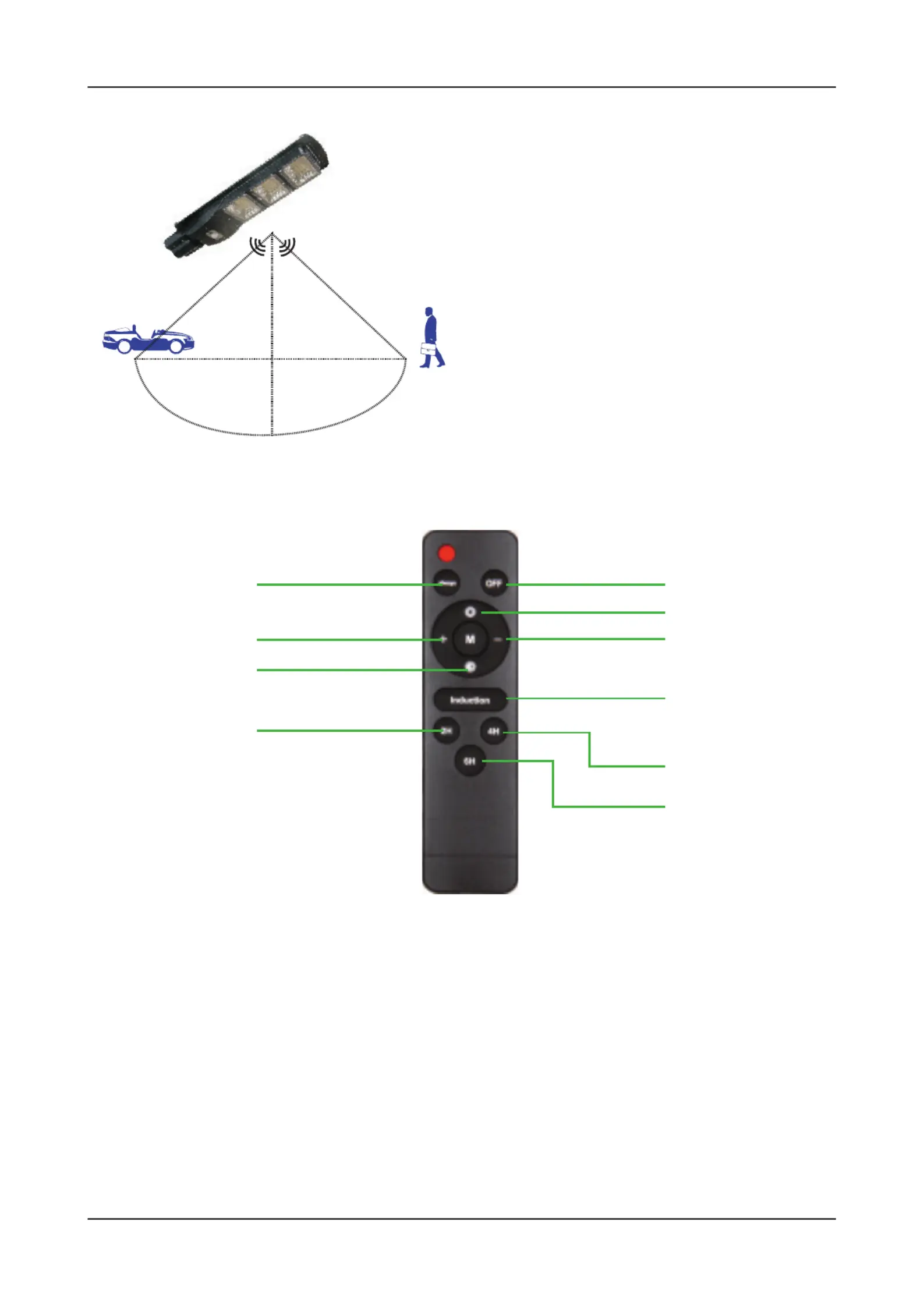

REMOTE CONTROLLER INSTRUCTIONS
FUNCTIONAL MODES
1. First mode
Long press 5-8 seconds Radar mode, Mov-
ing objects into the sensing area, All the
lights are on. Leave sensing area , Light
opening.(Human sensor is eective)
2. Second mode
(1seconds press): Light on medium bright-
ness (Radar-induction is not eective)
3. Third mode
(1seconds press): O
SOLAR PANEL MAINTENANCE & WARNING
• Do not use solvents, petrol, etc. Otherwise the light will be damaged.
• Clean the light with a dry, lint-free cloth.
• Check the solar panel for dirt regularly. If dirt or is present remove it to guarantee
flawless function of the product.
• Especially during the winter, keep the product free from snow and ice.
• Confirm installation direction is correct (solar panel should be at top).
• Confirm no objects blocking the solar panel to receive sunlight.
• Keep away from the fire.
• Don’t immerse in the water.
