Issue 2
947973
1

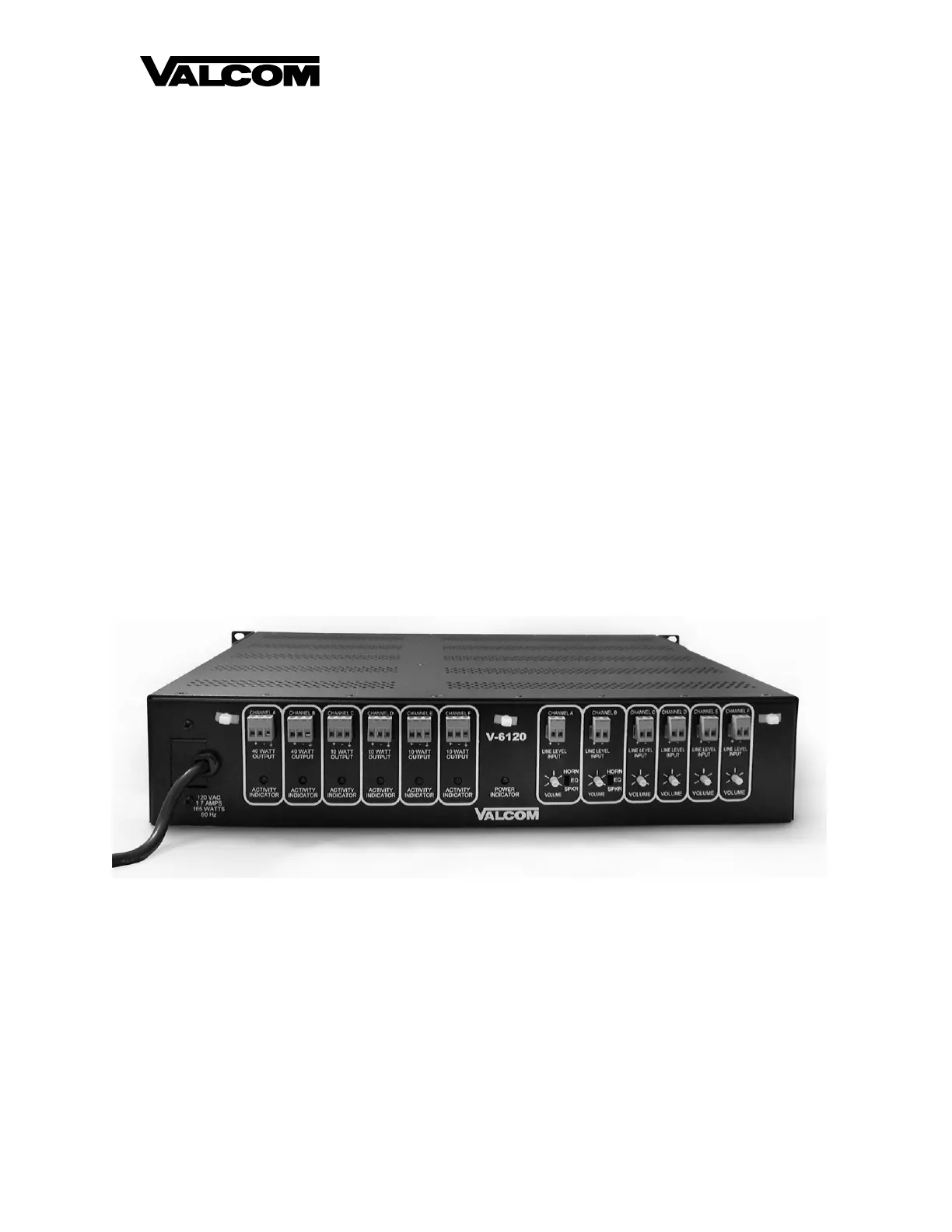

V-6120
6-Channel Amplifier
INTRODUCTION
The V-6120 6-Channel Amplifier is designed
as a replacement amplifier for existing
25-Volt Speaker Lines. When used with
Valcom’s 25-Volt retrofit intercom systems,
the V-6120 eliminates the need to install
separate amplifiers for each one-way zone.
Most of Valcom’s 25-Volt compatible station
cards feature a line level output suitable for
connection to the line level inputs of the
V-6120. This allows users to provide audio
to up to 6 zones of common area paging per
V-6120.
Features:
2u 19” Rack Mounting
6 Independent Amplifier Channels
3 Convenient Strain Relief Points
LED Activity Indicator per channel
Power Requirements:
120 VAC/1.7A; 165W
Weight:
21.0 lbs (9.53 kg)
Dimensions:
3.5" H x 17.0" W x 15.0" D
(8.89 cm x 43.18 cm x 38.1 cm)
INSTALLATION
All connections to the V-6120 are made on the rear of the amplifier. There are 6 line level
(-10dBm) inputs, each featuring an independent volume control, and 6 corresponding speaker
outputs. Channels A and B are designed to drive up to a 40 watt load of 25-Volt speakers each or
horn loudspeakers. These 2 channels also feature a switch selectable EQ to enhance the
amplifier’s output for horn or speaker loads. Channels C, D, E and F are designed to drive up to a
10 watt load of 25-Volt speakers each. The inputs may be bridged together; providing multiple
outputs from a single input signal. The V-6120 Amplifiers outputs may not be bridged
together.
