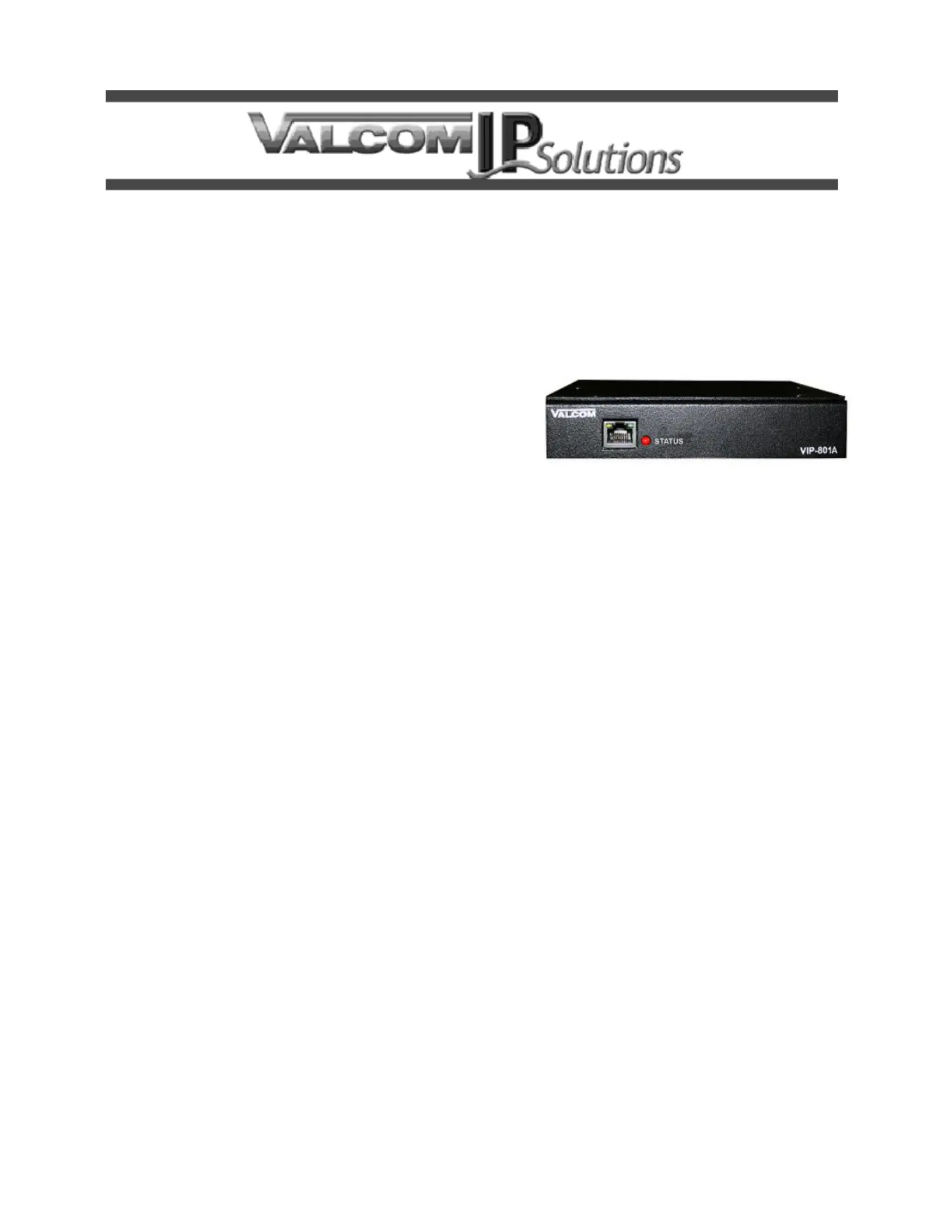

1 947767

ISSUE 3

VIP-A, VIP-801A- 801V4

NETWORK AUDIO PORT

INTRODUCTION

The VIP-801A and VIP-801A- Network Audio V4

Ports enable voice access to a single zone of one-

way paging over an IP network, allowing page

zones to be extended anywhere network

connectivity is available. The VIP-801A can be

programmed as a SIP (Session Initiation Protocol)

device for connectivity to virtually any Voice over IP

(VoIP) telephone system.Both models are identical

in t, form and function.

SPECIFICATIONS

Features

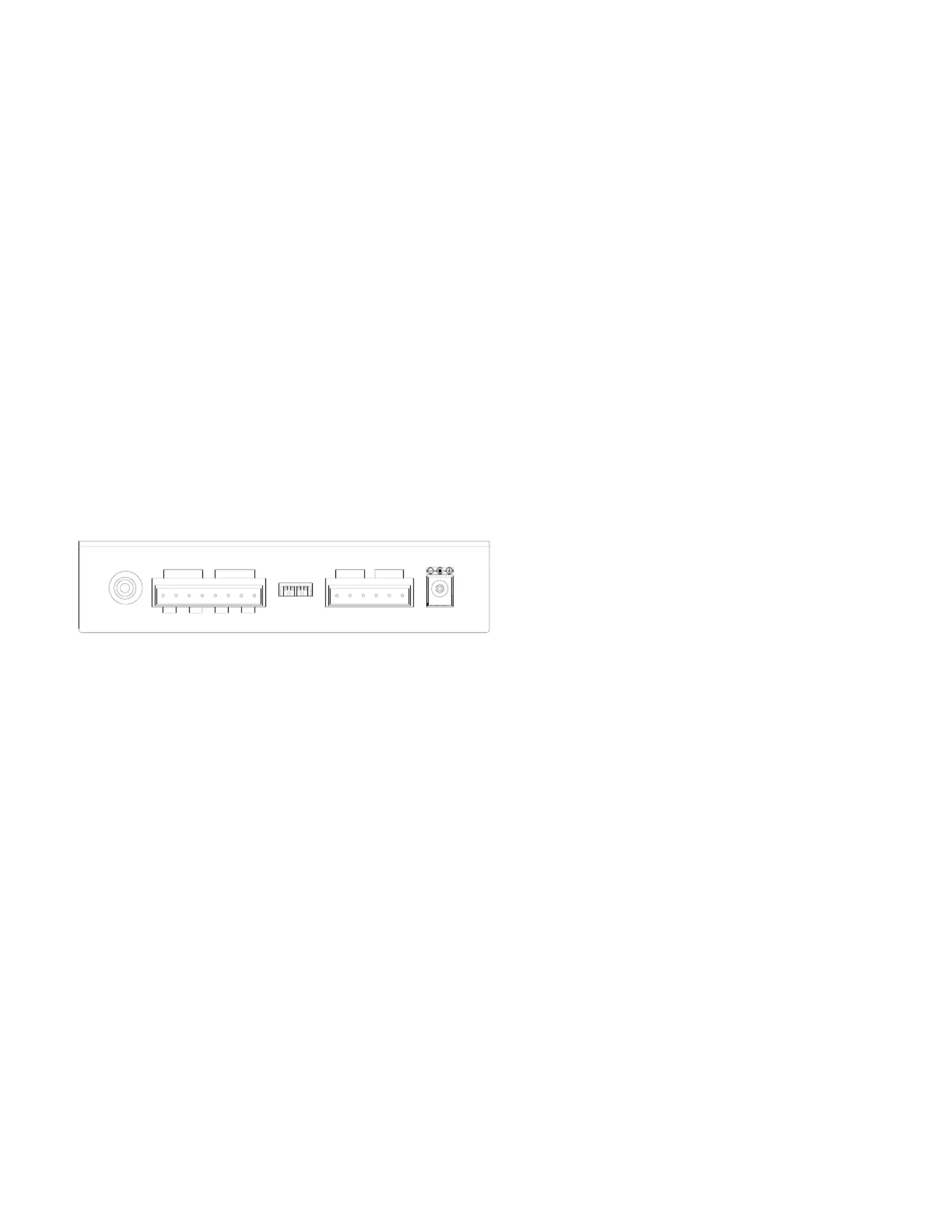

•1 Audio Input

•2 Audio Outputs

•2 Form C Relays

•1 Contact Closure Input

•1 SIP identity for registering to a VoIP telephone

system

•-jack for network connection RJ45

•Front panel activity LED

•Provides audio for up to 40 Valcom one-way

amplied speaker assemblies

•AUX audio input via RCA jack

•Contact closure or VOX operation of audio input

•Removable screw terminal connectors provided

for audio and relay interfaces

•AUX input audio mutes during page

•Output control contact closure provided during

paging output

•Compatible with - or 70-Volt ampliers 25

•Barrel jack for optional DC power

•Power over Ethernet (PoE) 802.3af compatible

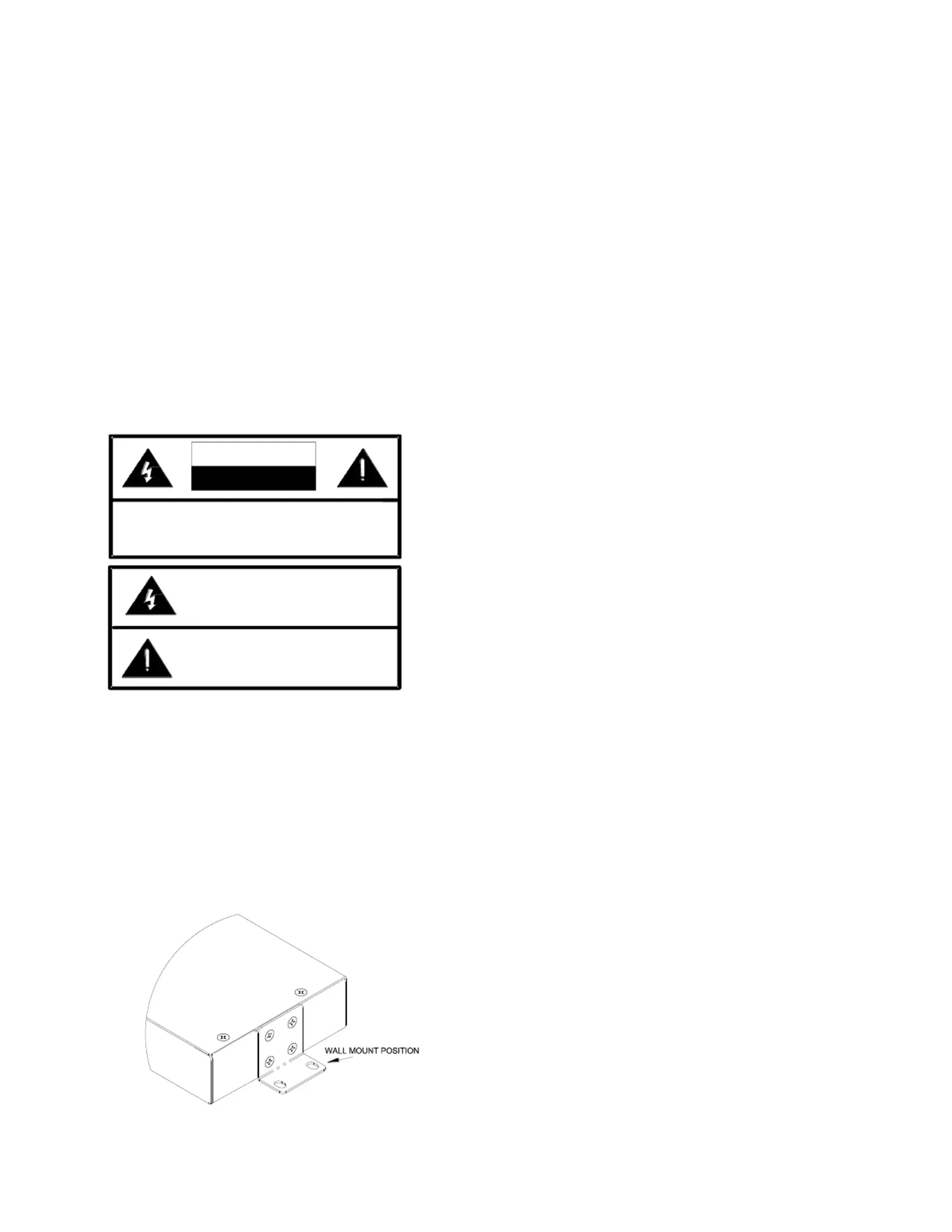

Dimensions/Weight

• H x 6.13" W x 5.25" D 1.38”

(3.50cm H x 15.6cm W x 13.33cm D)

•Weight: 1.25 lbs. (0.57 kg)

Nominal Specications

Input Impedance: 600 Ohms

Input Level: -10dBm nominal

Voice Switch Sensitivity: -21dBm

AUX Input Impedance: 8 to 600 Ohms

AUX Input Level: -10dBm nominal

Output Impedance: 50 Ohms

Output Level: - 10dBm nominal

Relay Current: 1 Amp @ 24VDC

Nominal Power Requirements

Via rear panel barrel connector:

Voltage: 24VDC

Current: 3mA 25

Via 802.3af PoE Ethernet Switch:

802.3af: Class 3

Environment

Temperature: 0 to +40° C

Humidity: 0 to 85% non-precipitating
