ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

H0269

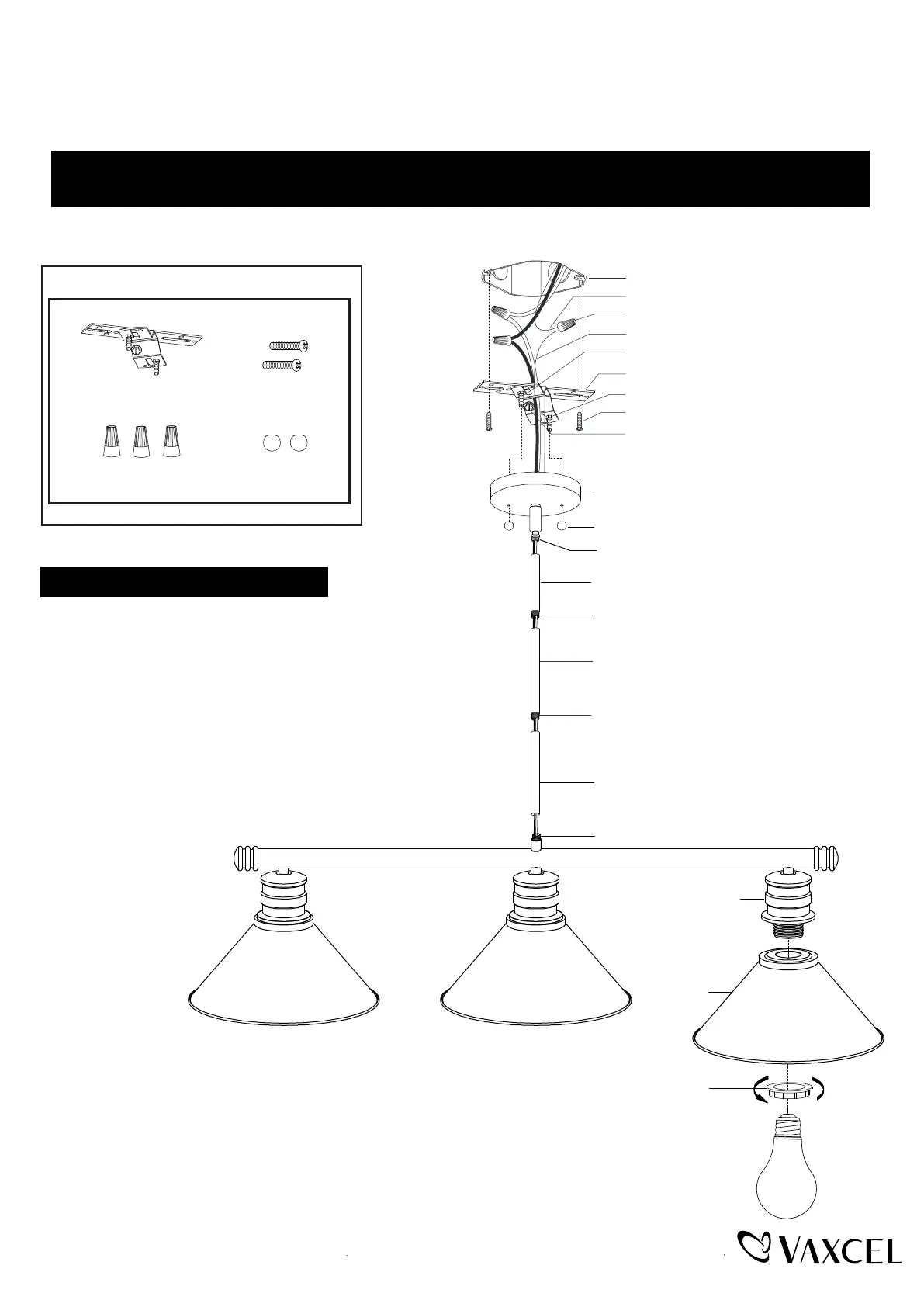

Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Mounting Screw (B)

Wire Connector (C)Bolt Nut (D)

Cross Bar Unit (A)

Canopy Kit

Bolt Nut (D)

OutletBox

HouseGround Wire

Wire Connector (C)

Fixture Ground Wire

Fixture Mounting Screw

Cross Bar Unit (A)

Green Ground Screw

Lock Nut

Mounting Screw (B)

Upper Rod

Threaded Pipe

Threaded Pipe

Middle Rod

Threaded Pipe

Lower Rod

Threaded Pipe

Fixture

Shade

Socket Ring

Max.60W Type A Bulb

(not included)

1. Attach cross bar unit (A) to the outlet box using two

mounting screws (B).

2. Rod Connections:

a. Thread the fixture wire from the fixture through the

lower rod, then secure the lower rod onto fixture using

the threaded pipe.

b. Thread the fixture wire through the middle rod and then

secure the middle rod onto the lower rod using the

threaded pipe.

c. Thread the fixture wire through the upper rod, then

secure the upper rod onto the middle rod using the

threaded pipe.

Note: Length

adjustable from

14-1/4" to 68-1/4". Use

fewer rods if shorter

length is desired.

3.

Thread the fixture wire through the canopy kit, then secure the

rod assembly to the set threaded pipe of the canopy kit.

Turn off the power at fuse or circuit box.

Installation Steps

220221
