ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THIS INSTRUCTIONS.

C0272

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

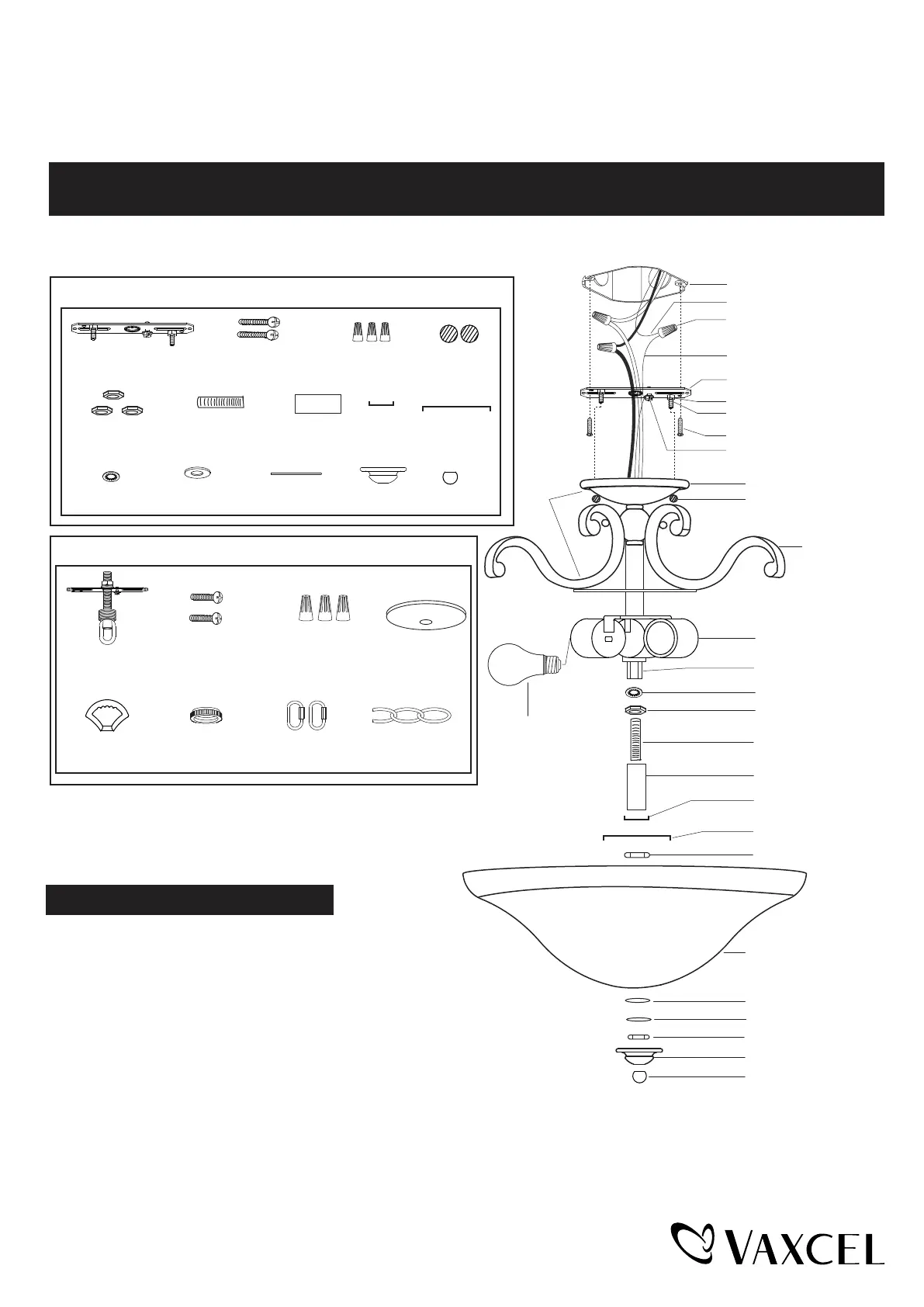

Hardware Package for Ceiling Light (included):

Turn off the power at fuse or circuit box.

Installation Steps

Outlet Box

House Ground Wire

Fixture Mounting Screw

Mounting Strap Unit (A)

Green Ground Screw

Lock Nut

Mounting Screw (B)

Fixture Ground Wire

Wire Connector (C)

1. Attach the mounting strap unit (A) to the outlet box by

using two mounting screws (B).

2.

Screw the threaded pipe (F) into the coupling

on the socket base, then secure with a hex

nut

(E) and washer (J).

3. Attach the tube (G) and cap-1 (H) to the coupling by

inserting the threaded pipe

(F), then attach cap-2 (I)

to the hex nut (E).

Hardware Package for Pendant Light (included):

Canopy-1

Bolt Nut (D)

Arm

Fixture

Hex Nut (E)

Cap (M)

Metal Pad (L)

Rubber Pad (K)

Glass Shade

Socket Base

Coupling

Hex Nut (E)

Washer (J)

Threaded Pipe (F)

Tube (G)

Cap-1 (H)

Hex Nut (E)

Cap-2 (I)

Max. 100W Type A Bulb

(not included)

Finial (N)

Mounting Screw (B)Wire Connector (C)Mounting Strap Unit (A)

Hex Nut (E)

Cap-2

(I)

Rubber Pad (K)

Threaded Pipe

(F)

Tube

(G)

Cap-1

(H)

Bolt Nut (D)

Washer (J)

Metal Pad (L)

Cap (M)

Finial (N)

Mounting Strap

Unit (O)

Wire Connector (Q)

Collar (T)Loop (S)

Mounting Screw (P)

Canopy (R)

Quick Link (U)

Chain (V)

For Ceiling Light:

Page 1 / 3
