ASSEMBLY AND INSTALLATION

INSTRUCTIONS

W0383

T

Turn on the power at fuse or circuit box.

W

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2.READ

AND SAVE THESE INSTRUCTIONS.

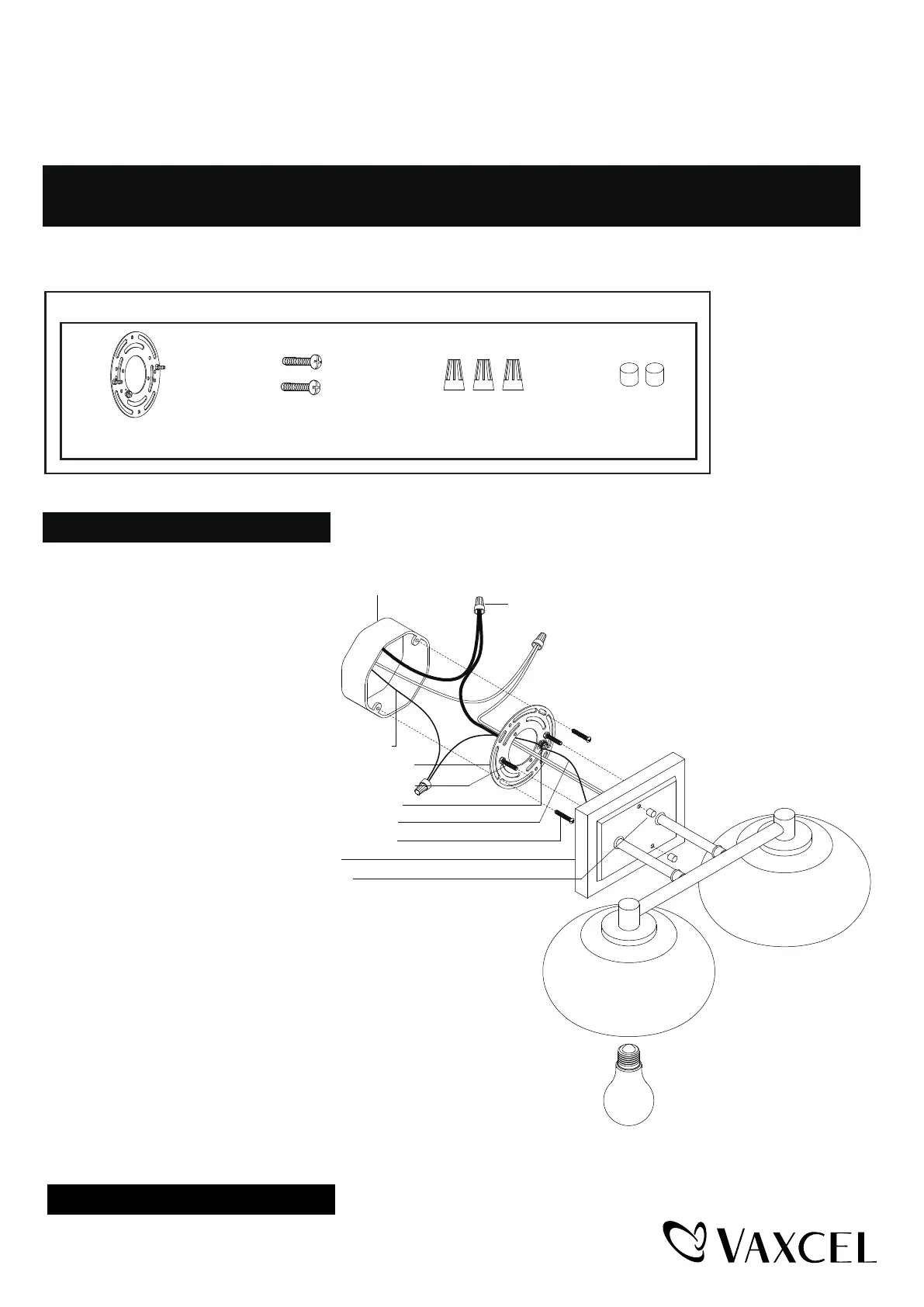

Hardware Package (included):

Mounting Screw (B)Wire Connector (C)Bolt Nut (D)Mounting Plate Unit (A)

Backplate

Bolt Nut (D)

Fixture Ground Wire

Outlet Box

Wire Connector (C)

House Ground wire

Mounting Plate Unit (A)

Green Ground Screw

Mounting Screw (B)

Fixture Mounting Screw

Max 60W Medium base bulb

(not included)

Turn off the power at fuse or circuit box

Installation Steps

1.Attach mounting plate unit (A) to

the outlet box using two mounting

screws (B). Adjust the length of the

preinstalled fixture mounting screws

if necessary.

Note: Make sure that the fixture

mountingscrews are lined up

horizontally to make the fixture

level.

2.Connect the smooth

wire (marked) to black

wire (power), the ribbed

wire (unmarked) to white

wire (neutral) with the wire

connectors (C) provided.

Connect the copper wire

on the light fixture to the

mounting plate unit (A) by

securing it with the green

ground screw, then connect

it to the house ground wire with

wire connectors (C).

Carefully put all the wires into outlet box.

3.

Attach the backplate to the mounting plate unit (A) by

aligning and inserting the two fixture mounting screws

from the mounting plate unit (A) into the open holes on

the backplate, then expose fixture mounting screws

before screwing the two bolt nuts (D).

4.Install 2 X 60W medium base bulbs (not included).

See relamping label at socket area or packaging for maximum wattage allowed.

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
