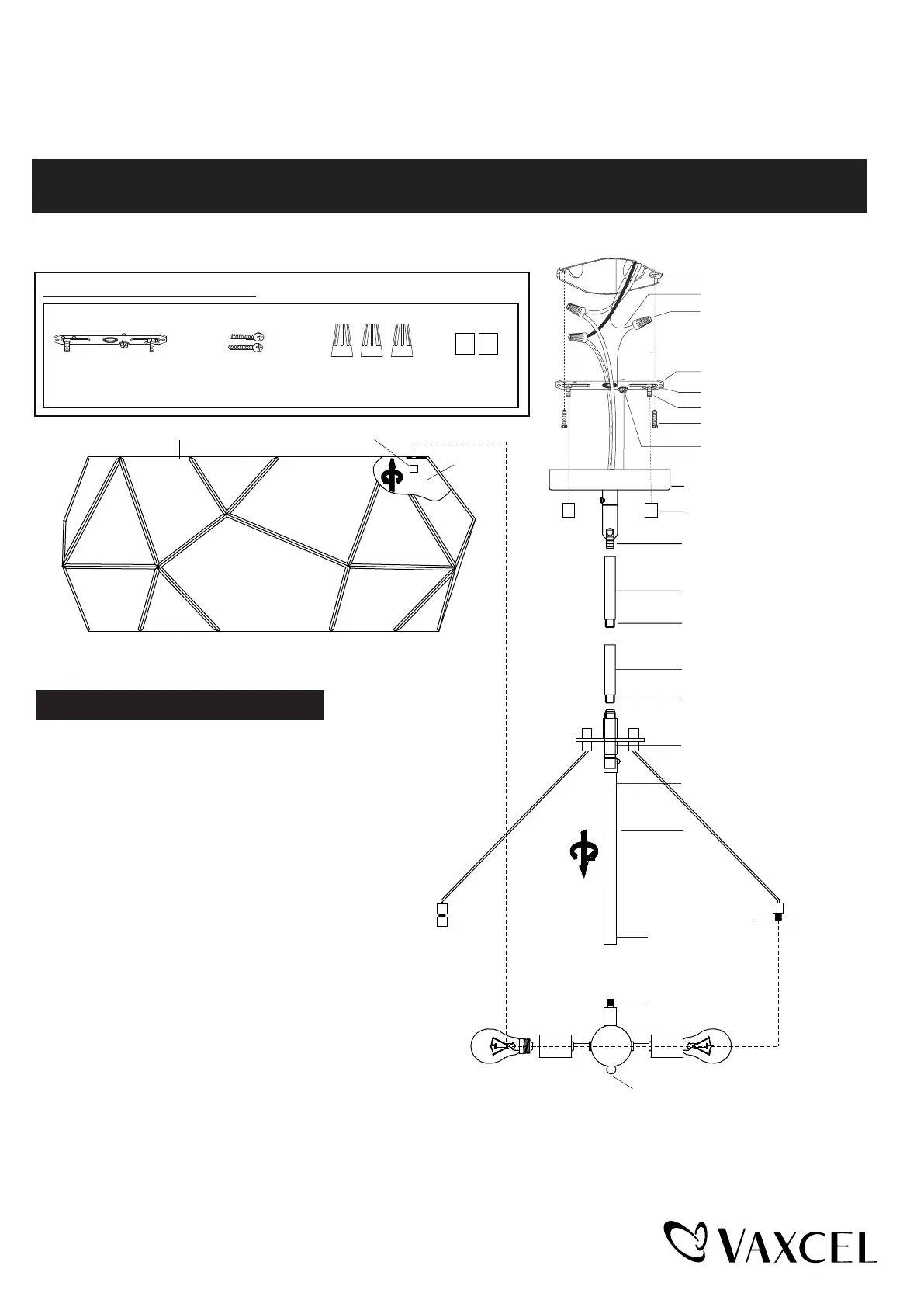

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

P0393

Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Mounting Strap Unit (A)

Mounting Screw (B)Wire Connector (C)

Bolt Nut (D)

Threaded Pipe

Fixture Canopy

Bolt Nut (F)

Upper Rod

Threaded Pipe

Threaded Pipe

Middle Rod

Lower Rod

OutletBox

HouseGround Wire

Wire Connector (C)

Fixture Mounting Screw

Mounting Strap Unit (A)

Green Ground Screw

Lock Nut

Mounting Screw (B)

Threaded Pipe

Plastic Screw

Center Rod

Threaded Pipe

Ring

Glass Shade

Fuse Bolt Nut

Fixture

Stud

Max.60W

Medium Base Bulb

(not included)

Turn off the power at fuse or circuit box

Installation Steps

1. Attach the mounting strap (A) to the outlet box by

using two mounting screws (B).

2. Connect the center rod to the fixture by using the

threaded pipe.

3. Rod connections:

a. Thread the fixture wire from the fixture through the

lower rod, then secure the lower rod onto fixture

using the threaded pipe.

b. Thread the fixture wire through the middle rod, then

secure the middle rod onto the lower rod using the

threaded pipe.

c. Thread the fixture wire through the upper rod, then

secure the upper rod onto the middle rod using the

threaded pipe.

d. Thread the fixture wire through the canopy, then

secure the canopy onto the upper rod using the

threaded pipe.

Note: Length adjustable from 24-3/8″ to 66-3/8″

Use fewer rods if shorter length is desired.

Page 1 / 2

230303
