ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
P0328
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Green Ground Screw (E)
Fixture Mounting Screw (D)Mounting plate (A)
Bolt Nut (G)
Mounting Screw (B)
Lock Nut (F)
Wire Connector (C)
Turn off the power at fuse or circuit box
Installation Steps
1. Thread two fixture mounting screws (D) through the mounting plate (A),
then secure them with two lock nuts (F) (two on each side of the
mounting plate (A).) Adjust the length of the fixture mounting screws
(D) if necessary.
Note: Make sure the fixture mounting screw are lined up horizontally
to make the fixture level.
2. Attach the mounting plate (A) to the outlet box by using two
mounting screws (B).
3. Rod connections:
a. Thread the fixture wire from the fixture through the lower rod,
then secure the lower rod onto the fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod, then secure the
middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, then secure the
upper rod onto the middle rod using the threaded pipe.
The height can be adjustable to 28-1/2" ~ 85-1/2", by using
the rods.
4. Thread the fixture wire through the canopy, then secure the
rod assembly to the set threaded pipe of the canopy.
5. Pull out the source wires from the outlet box.
Make wire connections using wire connectors (C) as
follows:
---Connect the hot wire (black insulation) from the
fixture to the black wire from the power source.
---Connect the neutral wire (white insulation) from the
fixture to the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the
mounting plate (A) with the green ground screw (E),
then connect it to the house ground wire with the
wire connector (C).
Carefully put the wires back into the outlet box.
191106

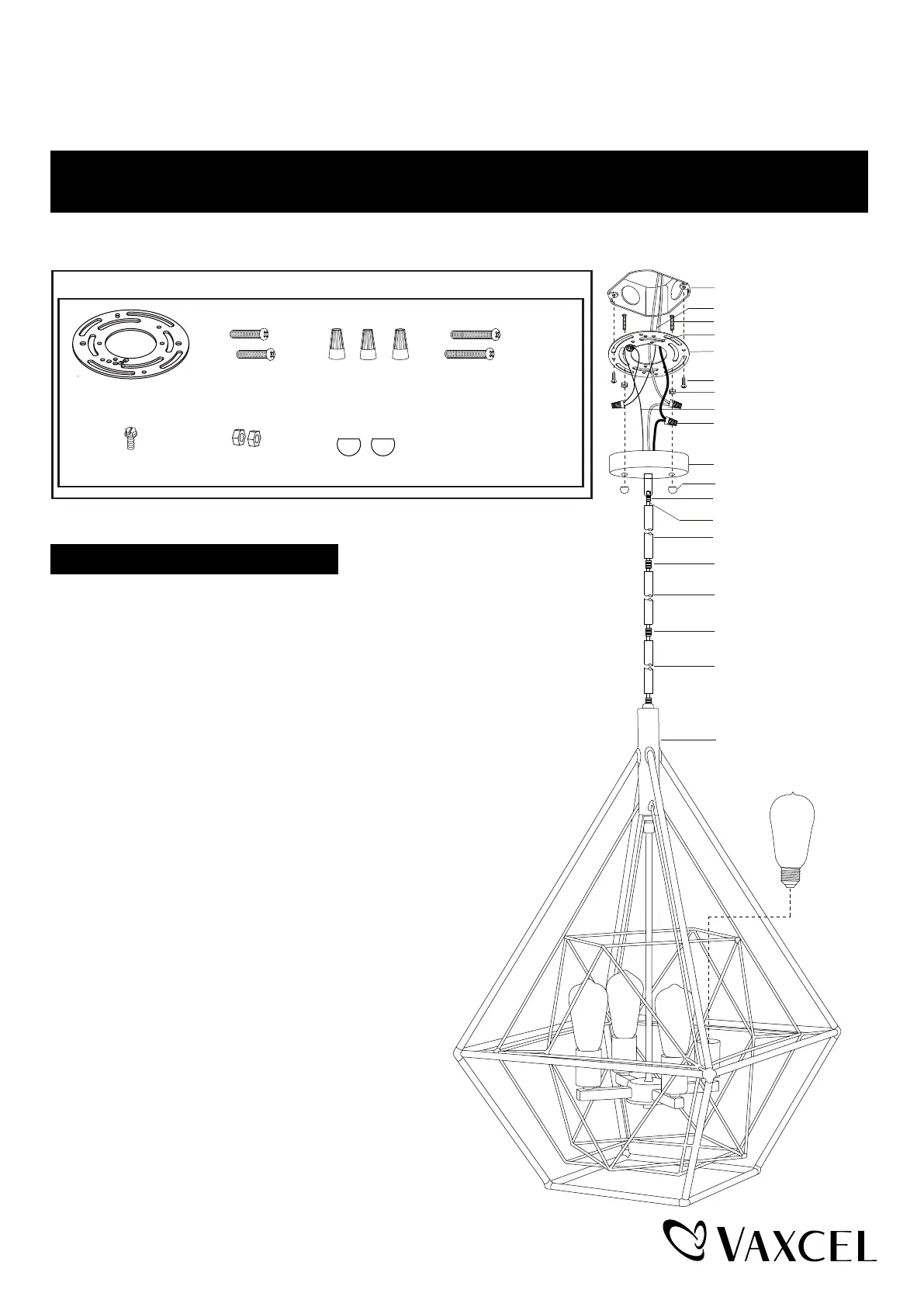

House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw (D)
Wire Connector (C)
Mounting Plate (A)
Green Ground Screw (E)
Mounting Screw (B)
Lock Nut (F)
Canopy
Bolt Nut (G)
Outlet Box
Set Threaded Pipe
Fixture Wire
Upper Rod
Middle Rod
Lower Rod
Threaded Pipe
Threaded Pipe
Fixture
Medium Base Bulb Max.60W
(not included)
