ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instruction.
H0303
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box
Turn on the power at fuse or circuit box
Installation Steps
Page 1 / 2
1
. Attach the mounting plate to the outlet box by
using two mounting screws (A).
2. Pull out the source wires from the
outlet box, make wire
connections using wire
connectors (B) as follows:
---Connect the hot wire
(black insulation) from the
fixture to the black wire from
the power source.
---Connect the neutral wire (white insulation) from the fixture to
the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the mounting plate with the green ground screw, then
connect it to the house ground wire with the wire connector (B).
Carefully put the wires back into the outlet box.

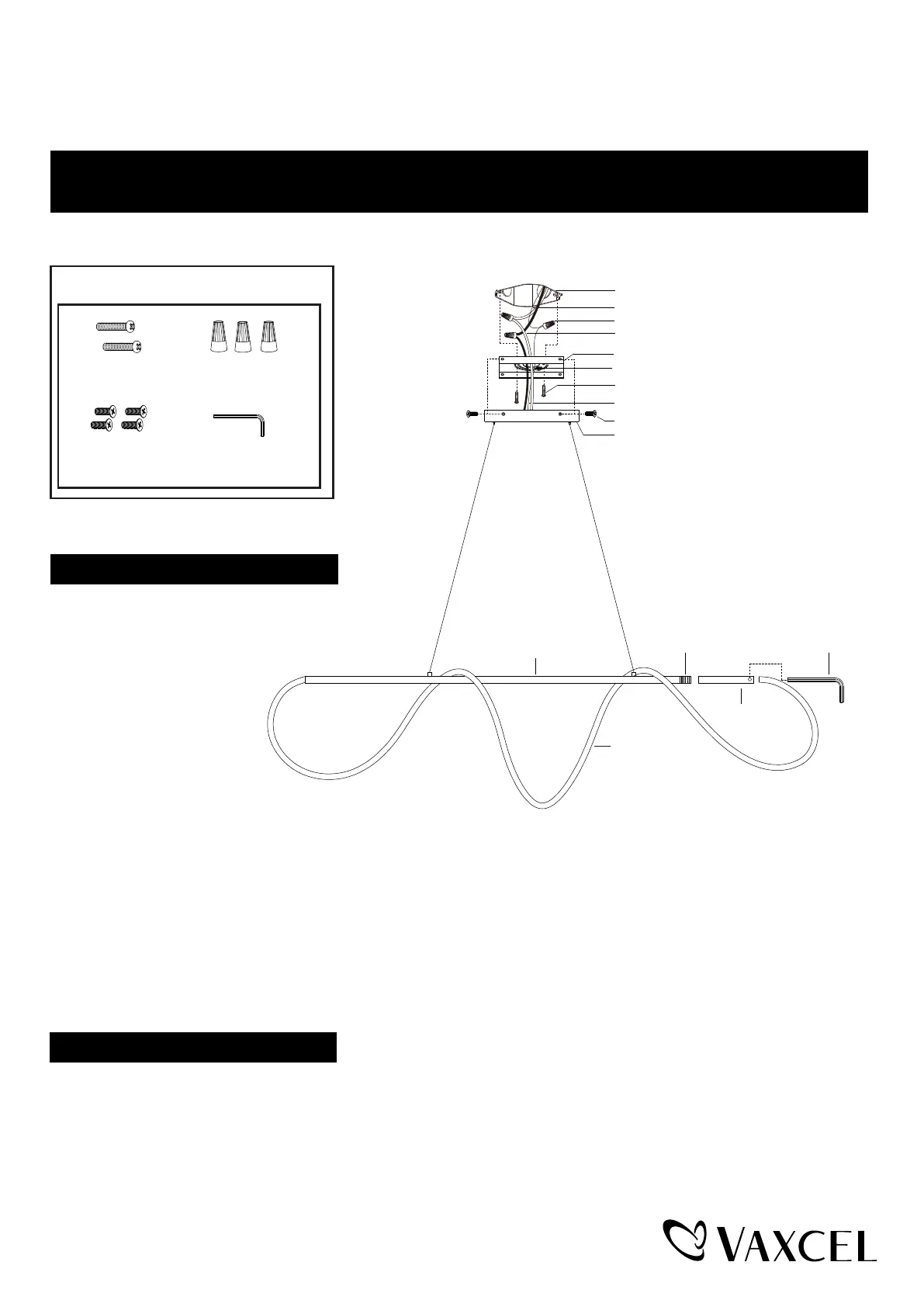

3. Attach the canopy kit to the mounting plate by aligning holes, then secure four set screws (C) from the holes of the
canopy into the open holes of the mounting plate.
4. Attach the rod to the fixture with the threaded pipe, then wrap the tube around the fixture according to the shape
you preferred. Finally insert the end of the tube into the rod, then secuew it using "L" screwdriver (D).
"L" Screwdriver (D)
Note: Dimming range: 100% full illumination to 10% of full illumination.
This fixture is dimmable with a forward phase electronic dimmer. Dimmers tested to be compatible
with this fixture are the Lutron: TGCL-153PH, MACL-153MH, SCL-153P, DVWCL-153PH.
If you are unfamiliar with electrical installations, it is recommended you have a qualified electrician
for your installations.
240430
Set Screw (C)
Mounting Screw (A)
Wire Connector (B)
Canopy Kit
Outlet Box
House Ground Wire
Wire Connector (B)
Green Ground Screw
Mounting Screw (A)
Fixture Wire
Fixture Ground Wire
Mounting Plate
Set Screw (C)
Fixture
Tube
Threaded Pipe
"L" Screwdriver (D)
Rod
