ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instructions.
H0296
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
Installation Steps
1
. Unscrew the bolt nuts (D), take out the mounting plate unit (A) and
then attach to the outlet box by using two mounting screws (B).
2. Rod Connections:
a. Thread the fixture wire through the lower rod, then secure the lower
rod onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod and then secure the
middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, then secure the upper
rod onto the middle rod using the threaded pipe.
Note: Length adjustable from 13-1/2" to 67-1/2".
Use fewer rods if shorter length is desired.
3. Thread the fixture wire through the canopy
kit, then secure the rod assembly to the set
threaded pipe of the canopy kit.
4. Pull out the source wires from the
outlet box. Make wire connections
using wire connectors (C) as follows:
---Connect the smooth-coated
wire (marked) from the fixture to
the black wire from the power source.
---Connect the ribbed-coated
wire (unmarked) from the fixture
to the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the mounting
plate unit (A) with the green ground screw, then connect it
to the house ground wire with the wire connector (C).
Carefully put the wires back into the outlet box.
5. Attach the canopy kit to the mounting strap unit (A) by inserting the
fixture mounting screws, then secure it with two bolt nuts (D).
6. Attach the glass shades to the socket carefully, then secure them with
the socket rings.

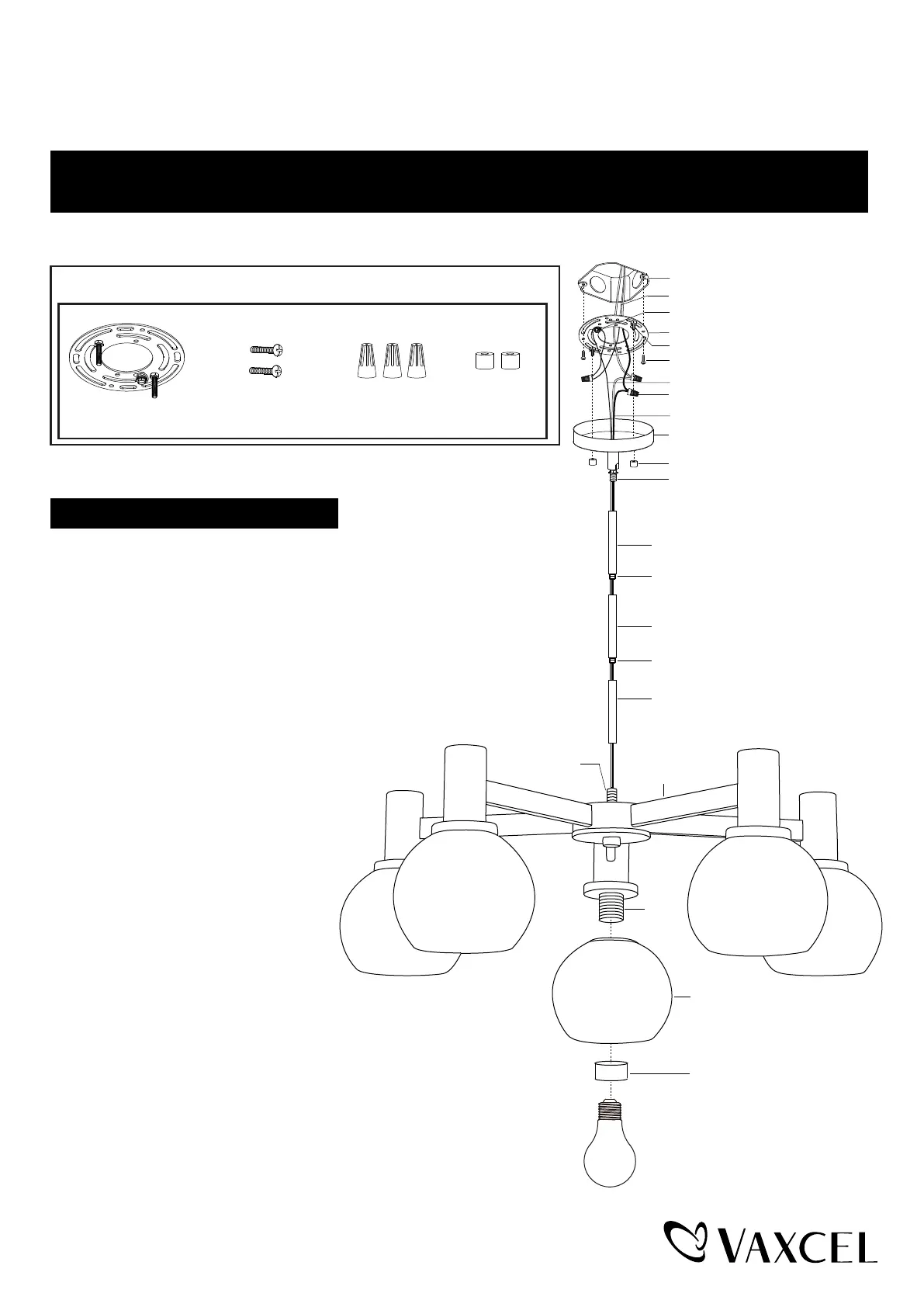

Hardware Package (included):
Wire Connector (C)
Mounting Screw (B)
Mounting plate Unit (A)
Bolt Nut (D)
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Bolt Nut (D)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Fixture Wire
Outlet Box
Canopy Kit
Page 1 / 2
Max. 60W Medium
Base Bulb (not included)
Set Threaded Pipe
Fixture
Upper Rod
Middle Rod
Lower Rod
Threaded Pipe
Threaded Pipe
Threaded Pipe
Socket
Glass Shade
Socket Ring
231121
Produktspezifikationen
| Marke: | Vaxcel |
| Kategorie: | Beleuchtung |
| Modell: | Marshall H0296 |
