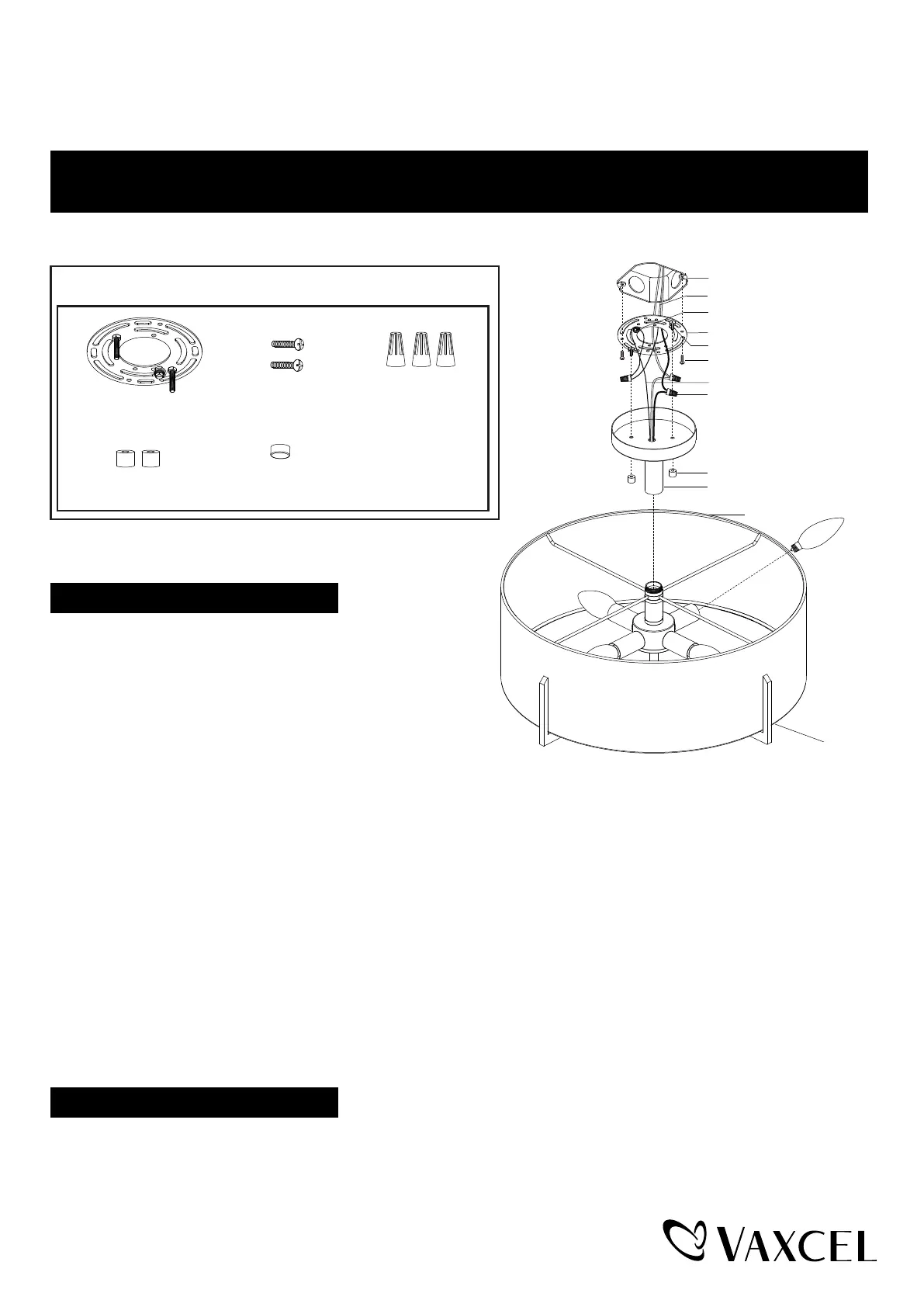

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2.READ AND SAVE THIS INSTRUCTIONS.

C0277

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Turn off the power at fuse or circuit box

Turn on the power at fuse or circuit box

Installation Steps

1

.

Unscrew the bolt nuts(D), take out the mounting plate unit

(A)andthen attach to the outlex box by using two

mountingscrews (B).

2.Connect the tube to the fixture.

3.Pull out the source wires from the outlet box.

Make wire connections using wire connectors (C) as follows:

---Connect the hot wire (black insulation) from the power source to

the black wire from the fixture.

---Connect the neutral wire (white insulation) from the power source

to the white wire from the fixture.

---Attach the fixture ground wire (bare wire) to the mounting plate with the green ground screw,

or connect to the source ground wire if available.

Carefully put the wires back into the outlet box.

4.Install 4 x 60W Max. candelabra base bulbs (not included). See relamping label at socket area or packaging for

maximum wattage allowed.

5.Attach the fixture onto the mounting strap unit (A) and tighten it with two bolt nuts (D).

6.Attach the fixture to the mounting plate unit (A) by inserting the finial (E).

NOTE: Depth of threaded pipe may need to be adjusted to properly fit the finial.

221109

Wire Connector (C)Mounting Screw (B)

Mounting plate Unit (A)

Bolt Nut (D)

Finial (E)

Page 1 / 2

House Ground Wire

Fixture Ground Wire

Fixture Mounting Screw

Wire Connector (C)

Bolt Nut (D)

Mounting Plate Unit (A)

Green Ground Screw

Mounting Screw (B)

Outlet Box

Tube

Fixture

Max. 40W

Type B Bulb

(not included)

Acrylic Diffuser
