Hex Nut (F)

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

C0258 / C0308

Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Turn off the power at fuse or circuit box

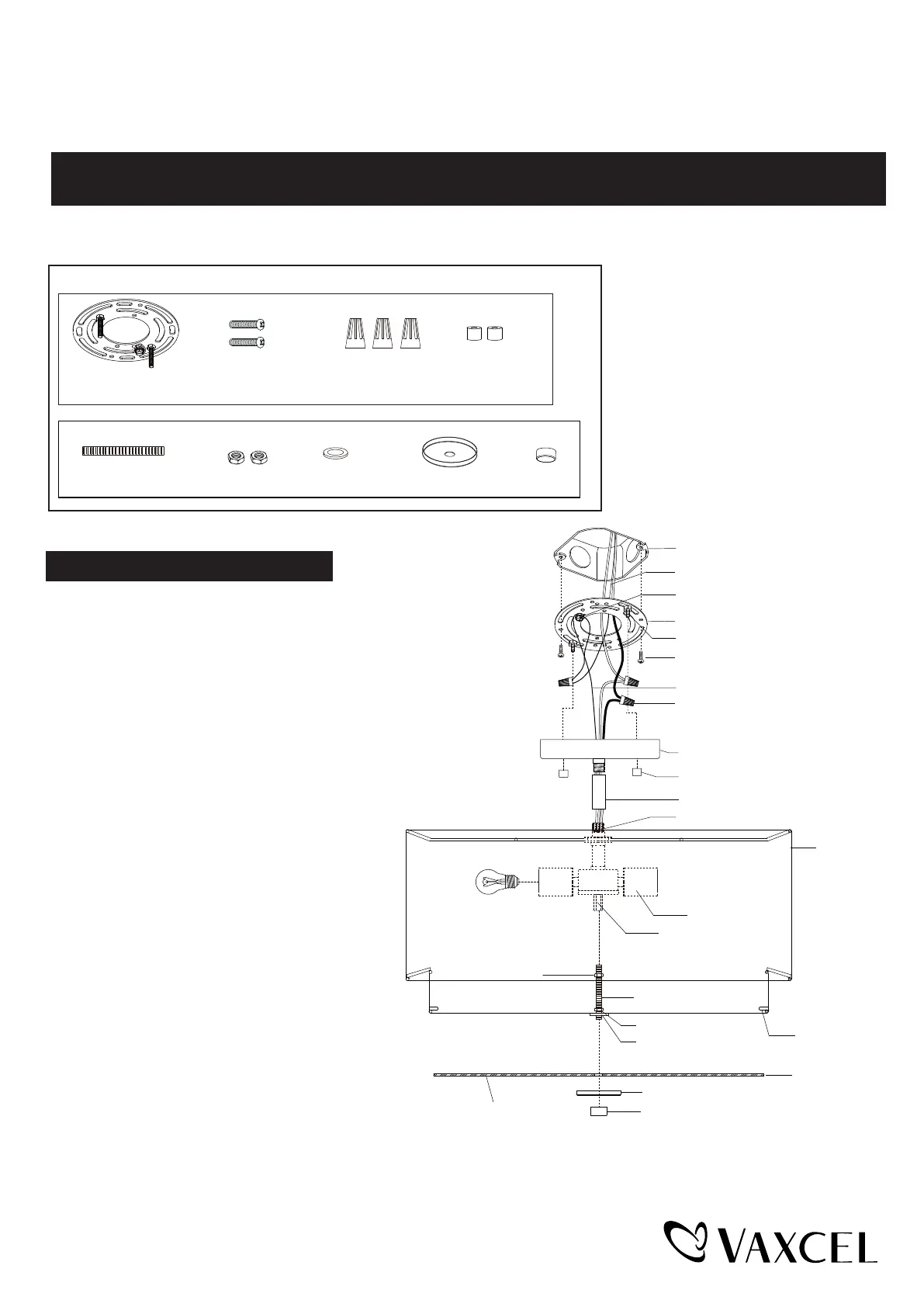

Installation Steps

Canopy

Bolt Nut (D)

Threaded Pipe

Mounting Screw (B)Wire Connector (C)Bolt Nut (D)

Mounting Plate Unit (A)

House Ground Wire

Fixture Ground Wire

Fixture Mounting Screw

Wire Connector (C)

Mounting Plate Unit (A)

Green Ground Screw

Mounting Screw (B)

Outlet Box

Page 1 / 2

240222

Max. 60W Medium Base bulb

(not included)

Socket

Coupling

Tube

Hex Nut (F)

Metal Pad (G)

Long Threaded Pipe (E)

Decorative Cup (H)

Finial (I)

Acrylic Diffuser

Frosted Side

Bracket

Linen Shade

Hex Nut (F)

Metal Pad (G)Long Threaded Pipe (E)Decorative Cup (H)Finial (I)

1

. Attach the mounting plate unit (A) to the outlet box by

using two mounting screws (B).

2.

Thread the fixture wire through the tube and the canopy.

3. Attach one end of the tube to the canopy, then connect the other

end to the threaded pipe of the fixture.

4. Install 4 x 60W Max. medium base bulbs (not included).

See relamping label at socket area or packaging for

maximum wattage allowed.

5. Attach the long threaded pipe

(E)

to coupling,

then secure the preinstalled hex nut

(F)

.

6.

Attach the hex nut

(F)

and the metal pad

(G)

to

the long threaded pipe

(E)

, slip the acrylic diffuser

and decorative cap

(H)

up through the long

threaded pipe

(E)

, then secure them with the

finial

(I)

.

NOTE: The depth of the lower hex nut (F) and

the metal pad (G) in long threaded pipe may

need to be adjusted to properly fit the acrylic

diffuser. The acrylic diffuser should be flatly

laid on three brackets, and the frosted side of

the acrylic diffuser should be faced down.
