ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

P0369

Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

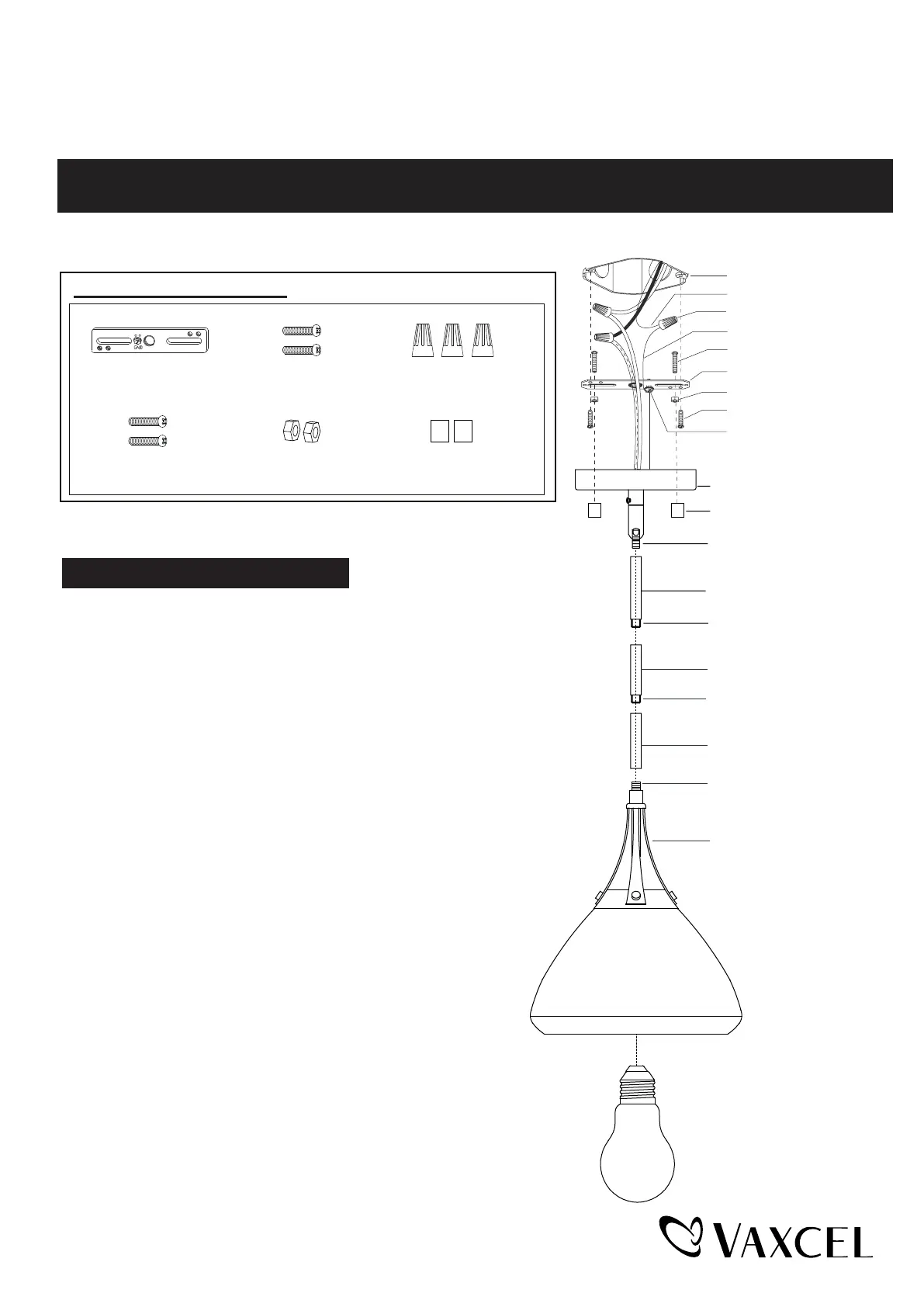

Mounting Strap (A)

Mounting Screw (B)Wire Connector (C)

Fixture Mounting Screw (D)

Lock Nut (E)Bolt Nut (F)

Threaded Pipe

Fixture Canopy

Bolt Nut (F)

Upper Rod

Threaded Pipe

Threaded Pipe

Middle Rod

Lower Rod

OutletBox

HouseGround Wire

Wire Connector (C)

Fixture Ground Wire

Fixture Mounting Screw (D)

Mounting Strap (A)

Green Ground Screw

Lock Nut (E)

Mounting Screw (B)

Threaded Pipe

Fixture

Turn off the power at fuse or circuit box

Installation Steps

1. Thread two fixture mounting screws (D) through the

mounting strap (A), then secure with two lock nuts (E),

adjust the length of the fixture mounting screws (D)

if necessary.

2. Attach the mounting strap (A) to the outlet box by

using two mounting screws (B).

3. Rod connections:

a. Thread the fixture wire from the fixture through

the lower rod, then secure the lower rod onto

fixture using the threaded pipe.

b. Thread the fixture wire through the middle rod,

then secure the middle rod onto the lower rod

using the threaded pipe.

c. Thread the fixture wire through the upper rod,

then secure the upper rod onto the middle rod

using the threaded pipe.

d. Thread the fixture wire through the canopy,

then secure the canopy onto the upper rod

using the threaded pipe.

Note: Length adjustable from 17-1/4” to 59-3/8”,

use fewer rods if shorter length is desired.

Max.60W Medium

Base bulb

(not included)

211029
