Seite 1/2

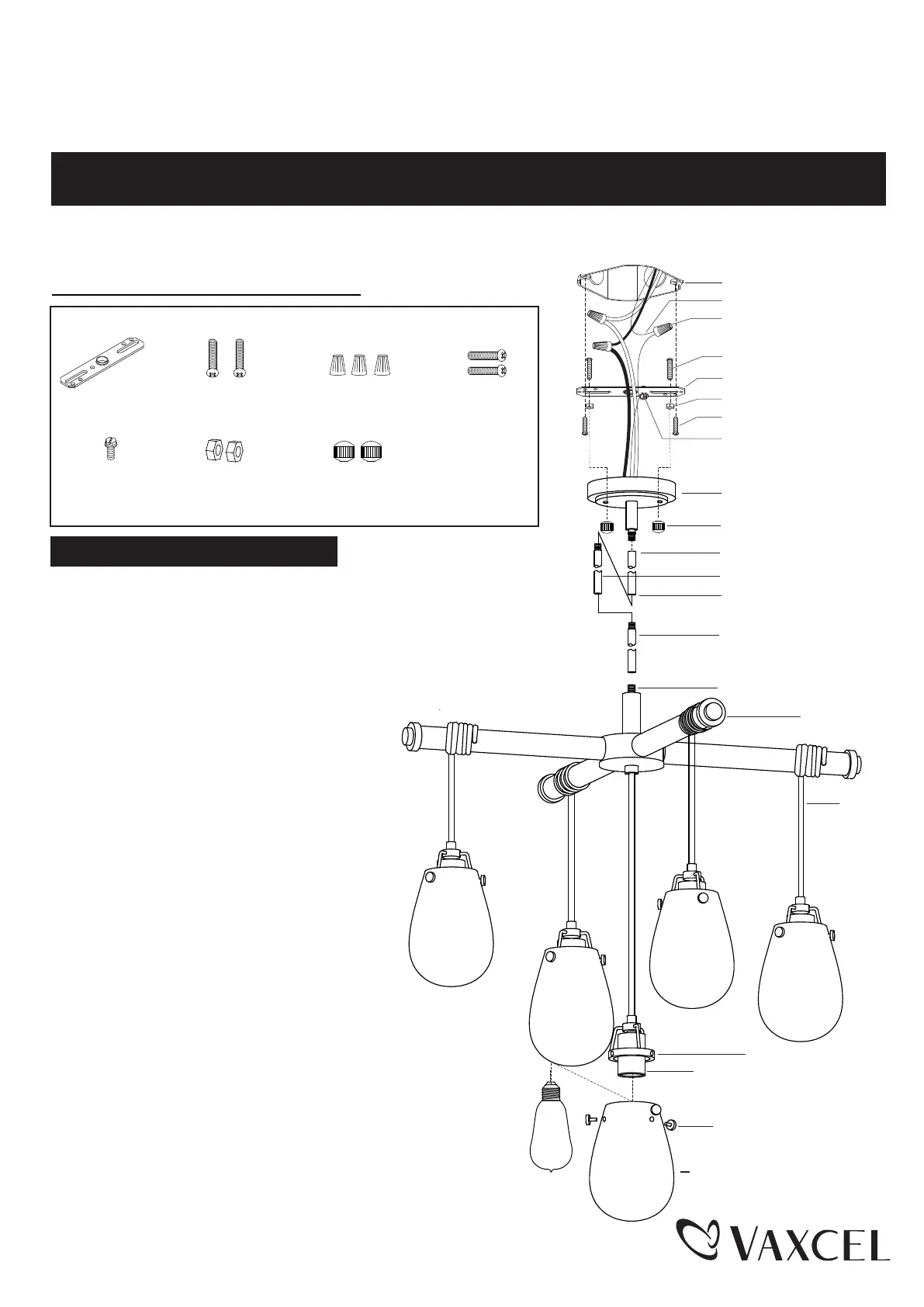

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
H0184
For Pendant Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
Mounting Strap (A) Fixture Mounting
Screw(D)
Wire Connector (C)
For Pendant Installation Steps
Lock
Nut (F)
Canopy Cover Assembly
Ball Nut (G)
Ball Nut (G)
Upper Rod
Threaded Pipe
Threaded Pipe
Middle Rod
Lower Rod
Socket
Glass Shade
Glass Holder
Outlet Box
House Ground Wire
Wire Connector(C)
Fixture Mounting Screw (D)
Mounting Strap(A)
Green Ground Screw(E)
Lock Nut(F)
Mounting Screw(B)
1. Thread two fixture mounting screws through the mounting strap,
and then secure with two lock nuts. Adjust the length of the fixture
mounting screws if necessary.
2. Attach the mounting strap to the outlet box by using two mounting
screws.
3. Rod Connections:
a. Thread the fixture wire from the fixture
through the lower rod, and then secure the
lower rod onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod,
and then secure the middle rod onto the lower
rod using the threaded pipe.
c. Thread the fixture wire through the upper rod,
and then secure the upper rod onto the middle
rod using the threaded pipe.
d. Thread the fixture wire through the canopy
cover assembly, and then secure the canopy
cover assembly onto the upper rod using the
threaded pipe.
Note: Length adjustable from 29" to 89".
Use fewer rods if shorter length is desired.
5. Connecting the wires with wire connectors as follows:
---Connect the black wire from the fixture to the black wire
from the power source.
---Connect the white wire from the fixture to the white wire
from the power source.
---Attach the fixture ground wire (usually green insulation
or bare wire) to the mounting plate with the green
ground screw. Then connect it to the house ground wire
with the wire Connector.
6. Attach the canopy cover assembly to the mounting strap by
inserting the fixture mounting screws, and then secure it with
two ball nuts.
171110
Green Ground
Screw (E)
Mounting Screw (B)
Main Fixture
Set Screw
Cord
Vintage Bulb
Max.60W
(not included)
