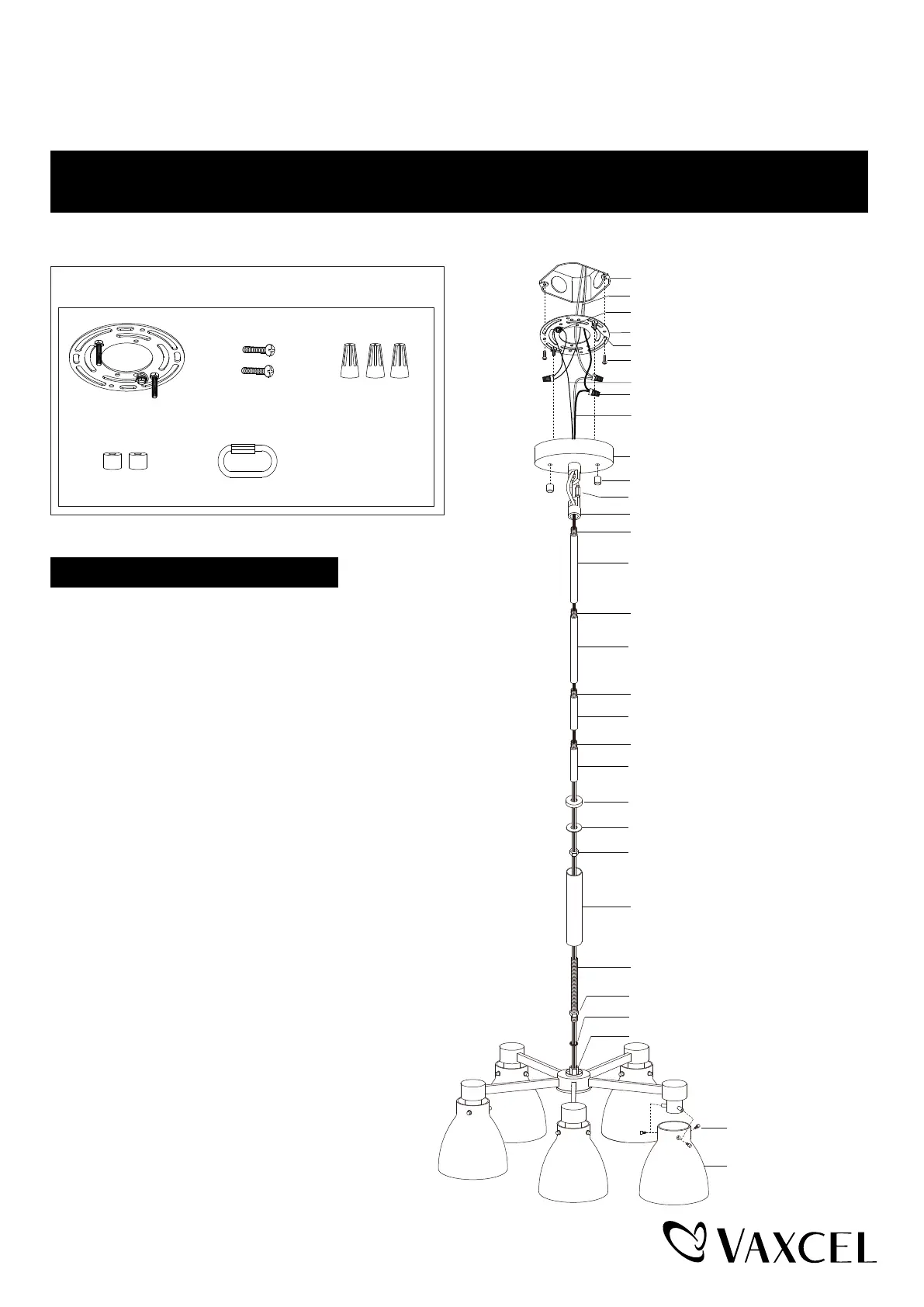

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instructions.
H0307
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
Installation Steps
Hardware Package (included):
Wire Connector (C)
Mounting Screw (B)
Mounting Plate Unit (A)
Bolt Nut (D)Quick Link (E)
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Bolt Nut (D)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Fixture Wire
Outlet Box
Fixture Loop
Canopy Unit
Quick Link (E)
Coupling
Fixture Screw
Glass Shade
Upper Rod
Middle Rod
Threaded Pipe
Threaded Pipe
Middle Rod
Threaded Pipe
Lower Rod
Threaded Pipe
Tube
Metal Pad
Hex Nut-a
Tube Cap
Threaded Pipe
Hex Nut-b
Washer
1. Unscrew the two bolt nuts (D). Remove the mounting plate unit (A)
from the canopy unit.
2. Attach the mounting plate unit (A) to outlet box with the mounting
screws (B).
3. Thread the fixture wires from the fixture through the threaded pipe,
then secure the threaded pipe tightly to the coupling with the washer
and hex nut-b. Thread the fixture wires from the fixture through the
tube, hex nut-a, metal pad, tube cap in sequence, then attach them
to the fixture. (Adjust the hex nut-a to right position against the metal
pad).
3. Rod connection:
a. Thread the fixture wires from the fixture through the lower rod,
then secure the lower rod onto the fixture using the threaded pipe.
b. Thread the fixture wires from the fixture through the middle rods,
then secure the middle rods onto the lower rod using the threaded
pipe.
c. Thread the fixture wires from the fixture through the upper rod,
then secure the upper rod onto the middle rod using the
threaded pipe.
d. Thread the fixture wires from the fixture through the fixture
loop, then secure the fixture loop onto the upper rod
using the threaded pipe.
Note: The fixture height can be adjusted to 57"
by using the rods. Use fewer rods if shorter height
is desired.
4. Thread the fixture wires through the quick link (E)
and canopy unit, then connect canopy unit and
fixture loop with quick link (E).
Page 1 / 2
240814
