ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THIS INSTRUCTION.

P0364

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Turn off the power at fuse or circuit box.

Installation Steps

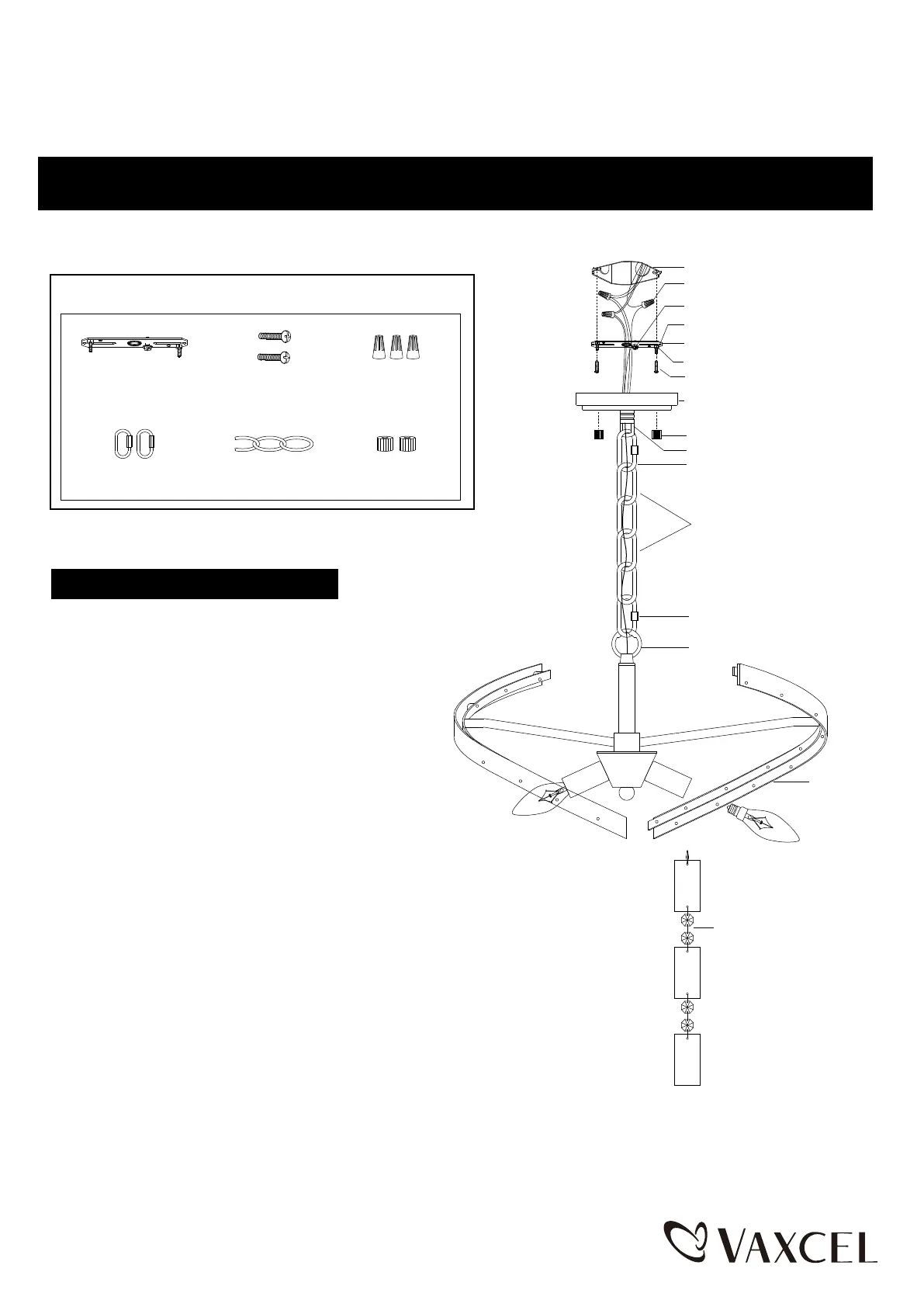

Mounting Strap Unit (A)

Lock Nut

Mounting Screw (B)

Wire Connector (C)

Fixture Mounting Screw

Green Ground Screw

Outlet Box

Hardware Package(included):

Mounting Strap Unit (A)Wire Connector (C)Mounting Screw (B)

Loop Lock (D)

Chain (E)Bolt Nut (F)

Canopy

Bolt Nut (F)

Loop Lock (D)

Fixture Loop

Loop Lock (D)

Loop

Chain (E)

Candelabra Base Bulb

Max.60W (not included)

Handmade Shell String

Fixture

1. Attach the mounting strap unit (A) to the outlet box

using two mounting screws (B).

2. Choose the length of the chain (E) you need,

use pliers (not included) to open and remove

excess chain section, then weave the fixture

wire and the fixture ground wire through the

chain (E) and canopy.

3. Connect one end of the chain (E) with the

loop by using a loop lock (D).

4. Connect the other end of the chain (E) with the

fixture loop by using another loop lock (D).

5. Thread the fixture wire and fixture ground wire

through mounting strap unit (A).

6. Pull out the outlet wires and house ground wire from the outlet box.

Make wire connections using the wire connectors (C):

---The smooth wire (marked) from the fixture to the black wire from the

power source.

---The ridged wire (unmarked) from the fixture to the white wire from the

power source.

---Attach the fixture ground wire to the mounting strap unit (A) with the green

ground screw, then connect it to the house ground wire with a wire

connector (C).

Carefully put the wires back into the outlet box.
