151025
Bulb Type A Max.60W
(not included)
1. Thread the fixture mounting screws through mounting strap, and then
secure them with two lock nuts. Adjust the length of fixture mounting
screws if necessary.
2. Attach mounting strap to the outlet box using two mounting screws.
3. Rod Connections:
a. Thread the fixture wire from the fixture through the lower rod, and then
secure the lower rod onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod, and then secure the
middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, and then secure the
upper rod onto the middle rod using the threaded pipe.
Note: Length adjustable from 16-1/4" to 58-1/4". Use
fewer rods if shorter length is desired.
4.
Thread the fixture wire through the canopy kit, and then secure the rod
assembly to the set nipple of the canopy kit.
5. Pull out the source wires from the outlet box. Make wire connections
using wire nuts as follows:
---Connect the smooth-coated wire (marked) from the fixture to the
black wire from the power source.
---Connect the ribbed-coated wire (unmarked) from the fixture to the
white wire from the power source.
---Attach the fixture grounding wire to the mounting strap with the
green grounding screw, and then connect it to the house
grounding wire with a wire nut.
Carefully put the wires back into the outlet box.
6. Attach the canopy kit to the mounting strap by inserting the fixture
mounting screws, and then secure it with two ball nuts.
7. Install a bulb (not included). Check relamping label at socket area or
packaging for maximum allowed wattage.

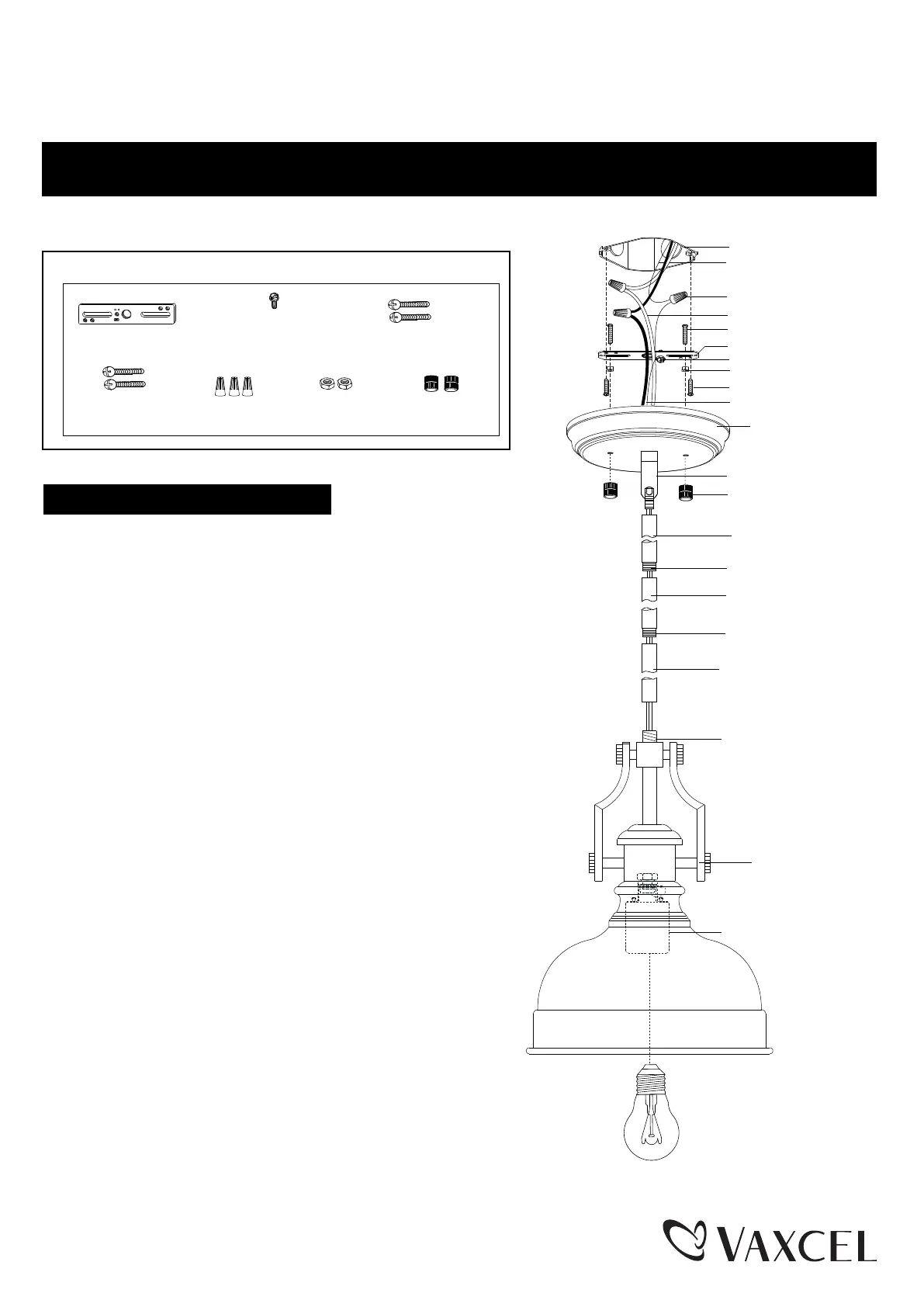

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.
P0193
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
Mounting Screw (C)
Lock Nut (F)
Wire Nut (E)
Mounting Strap (A)
Fixture Mounting
Screw (D)
Green Grounding
Screw (B)
Canopy Kit
Outlet Box
House Grounding Wire
Wire Nut (E)
Lock Nut(F)
Mounting Strap (A)
Green Grounding Screw (B)
Mounting Screw (C)
Upper Rod
Middle Rod
Lower Rod
Fixture
Threaded Pipe
Threaded Pipe
Threaded Pipe
Fixture Wire
Fixture Mounting Screw(D)
Fixture Grounding Wire
Socket
Set Nipple
Ball Nut(G)
Ball Nut(G)
Produktspezifikationen
| Marke: | Vaxcel |
| Kategorie: | Beleuchtung |
| Modell: | Keenan P0193 |
