ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

W0486

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

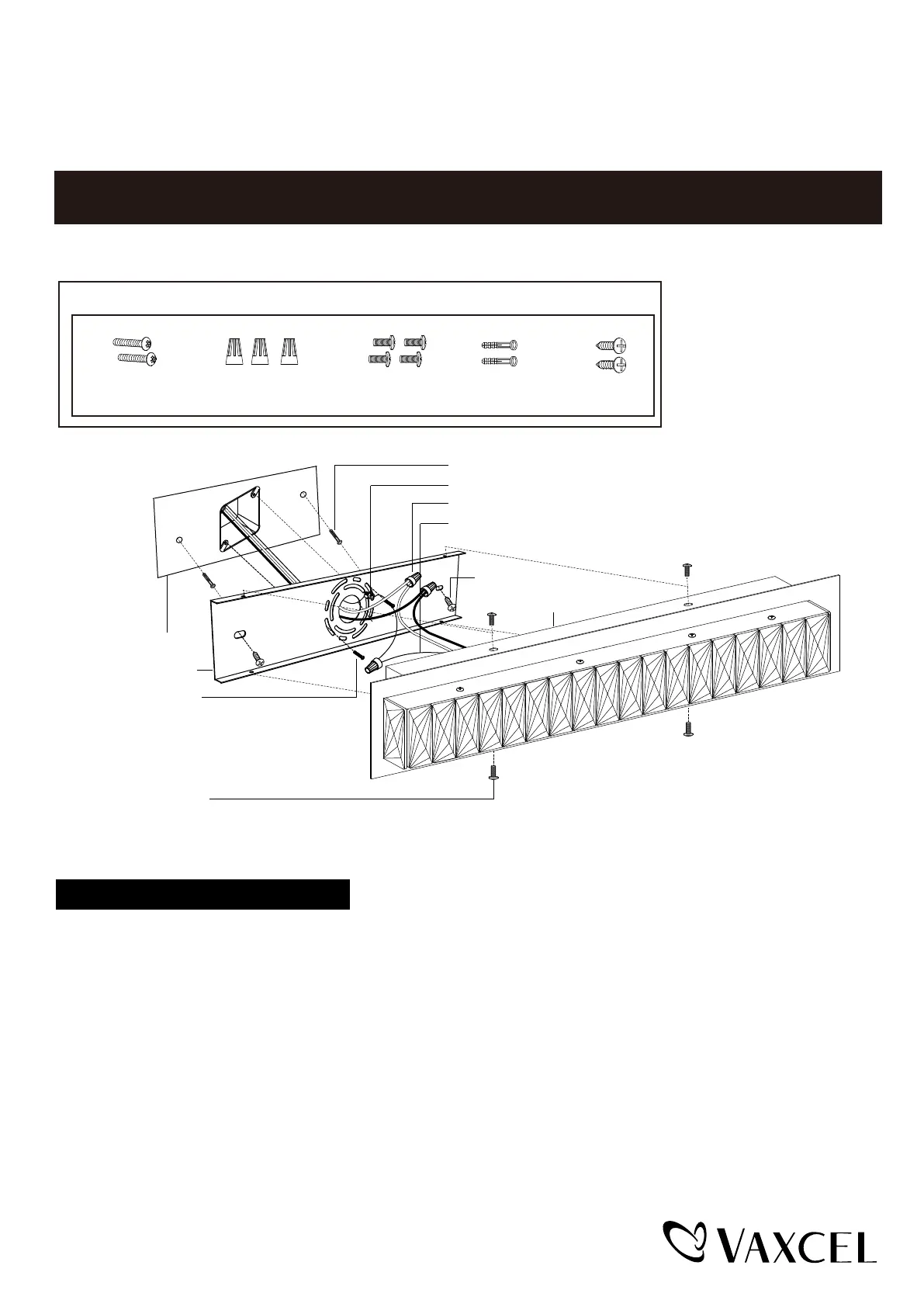

1. Unscrew the four set screws (C). Remove the mounting plate from the backplate.

2. Fix the mounting plate to the wall.

2a. For cement and drywall material:

Hold the mounting plate to the outlet box and mark the outermost set holes on the wall surface for drilling.

Remove the mounting plate from the outlet box. Drill two holes. Thread the anchors (D) into the holes,

and then attach the mounting plate to the outlet box by using two mounting screws (A). Secure the drywall

screws (E) through the set holes into the anchors (D).

2b. For wooden material:

Attach the mounting plate to the outlet box by using two mounting screws (A), and then secure the drywall

screws (E) through the set holes to the wall.

Turn off the power at fuse or circuit box.

Mounting Screw (A)Wire Connector (B)Set Screw (C)

Page 1 / 2

Installation Steps

Anchor (D)Drywall Screw (E)

240422

Outlet Box

Mounting Screw (A)

Wire Connector (B)

Fixture Ground Wire

Backplate

Set Screw (C)

Mounting Plate

Green Ground Screw

Anchor (D)

Drywall Screw (E)
