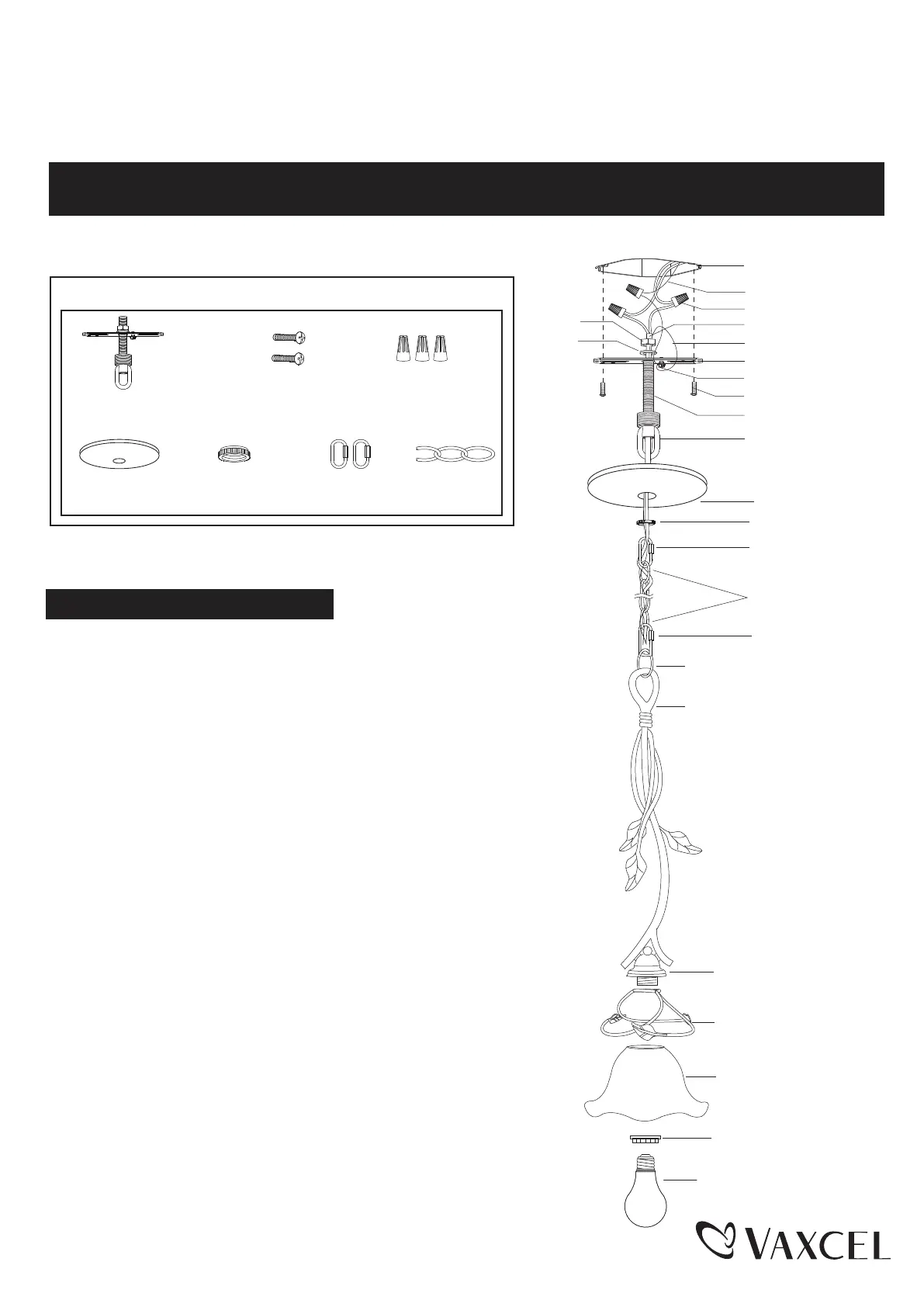

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save this instructions.

PD38807OL

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Turn off the power at fuse or circuit box.

Installation Steps

Mounting Strap Unit (A)Wire Connector (C)

Collar (E)

Mounting Screw (B)

Canopy (D)

Quick Link (F)

Chain (G)

Outlet Box

Housing Ground Wire

Wire Connector (C)

Fixture Wire

Fixture Ground Wire

Mounting Strap Unit (A)

Green Ground Screw

Mounting Screw (B)

Threaded Pipe

Hex Nut

Washer

Top Loop

Canopy (D）

Collar (E)

Quick Link (U)

Quick Link (F)

Chain (G)

Fixture

Loop

Glass Holder

Decoration Ring

Glass Shade

Socket Ring

Max. 100W Medium Base Bulb

(not included)

1. Attach the mounting strap unit (A) to the ceiling box by using two

mounting screws (B).

2. Adjust the length of the chain (G) you needed, then weave the fixture

wire and the fixture ground wire through the chain (G), collar (E) and

canopy (D).

3. Connect one end of the chain (G) with the loop by using a quick link (F).

4. Connect the other end of the chain (G) with the top loop by using

another quick link (F).

5. Make wire connections with wire nuts:

---Connect the smooth wire (marked) from fixture to the black wire

from power source.

---Connect the ridged wire(unmarked) from fixture to the white wire

from power source.

---Attach the ground wire to the mounting strap unit (A) with the green

ground screw, then connect it to the house ground wire with the wire

connector (C).

Carefully tuck wires back into the ceiling box.

6. Attach the canopy to the mounting strap unit (A) by inserting the

top loop, and then secure with the collar (E).

7. Place the glass shade into the decoration ring, attach them

upwards to the glass holder, and then secure with the socket

ring.

Page 1 / 2
