ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical

codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

H0175

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

161013

Turn off the power at fuse or circuit box

Installation Steps

Hardware Package (included):

Mounting Strap (A)

Mounting Screw (B)

Green Grounding

Screw (C)

Hex Nut (F)

Wire Nut (D)

Canopy (H)

Top Loop (I)

Collar (J)

Threaded Pipe (E)

Washer (G)

Loop Lock (K)

Chain (L)

1. Attach the threaded pipe to the mounting strap, and then secure it

with a washer and a hex nut.

2. Attach the mounting strap to the outlet box by using two

mounting screws.

3. Secure the top loop to the threaded pipe.

4. Secure the loop to the set threaded pipe of the fixture body.

5. Connect the chain:

- Determine length of chain needed to achieve

desired fixture height. (To remove excess chain

section, use pliers to bend link open.)

- Weave the fixture wires and fixture grounding wire

through the chain, collar and canopy.

6. Connect one end of the chain to the loop using

a loop lock.

7. Connect the other end of the chain to top loop

by using the other loop lock.

8.Thread the fixture wire and fixture

grounding wire through the top

loop, threaded pipe and mounting

strap.

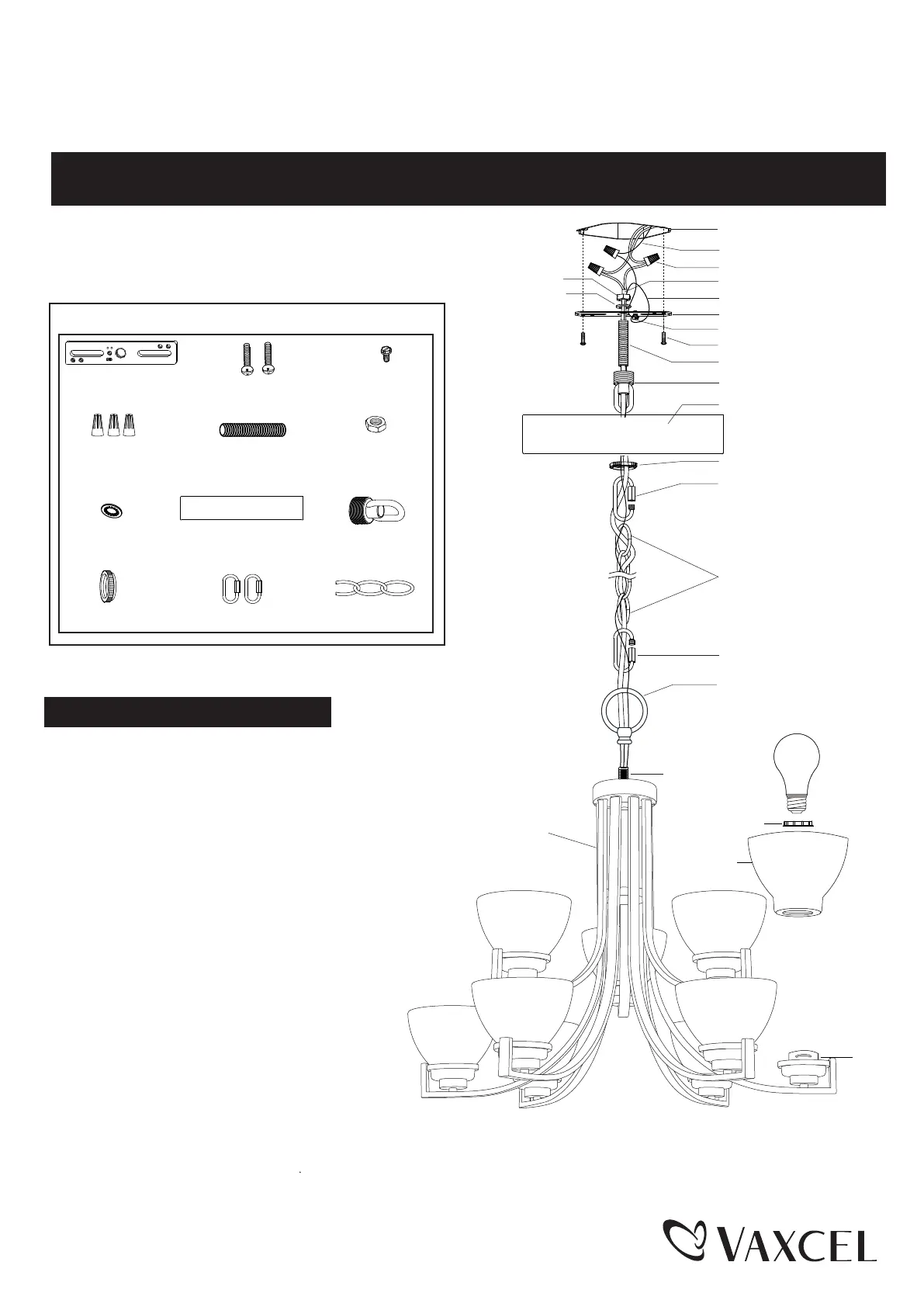

Outlet Box

House Grounding Wire

Wire Nut(D)

Fixture Wire

Fixture Grounding Wire

Mounting Strap(A)

Green Grounding Screw(C)

Mounting Screw(B)

Threaded Pipe (E)

Canopy(H)

Top Loop(I)

Hex Nut(F)

Washer(G)

Collar(J)

Loop Lock(K)

Loop Lock(K)

Chain(L)

Loop

Set Threaded PIpe

Socket

Glass Shade

Fixture Body

Socket Ring

Bulb Type A Max.100W

(not included)
