1. Attach the mounting strap unit (A) to the outlet box by using

two mounting screws (B).

2. Choose two certain same length of the chains (F) you need,

hook one end of the chains (F) to the arms, and then weave the

fixture wire and the ground wire through one of the chains .

Then connect the other end of the chains (F) to the loops by

using the loop locks (E).

3. Thread the fixture wire and ground wire through the loop

and canopy (G) in order.

4. Make wire connections using wire connectors (C):

---The smooth wire (marked) from fixture to the

black wire from power source.

---The ridged wire (unmarked) from fixture

to the white wire from power source.

---Attach the fixture ground wire

to the mounting strap unit (A)

with the green ground screw.

Then connect it to the house

ground wire with the

wire connector (C).

Carefully tuck wires back

into the outlet box.

200916

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THIS INSTRUCTION.

H0259

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

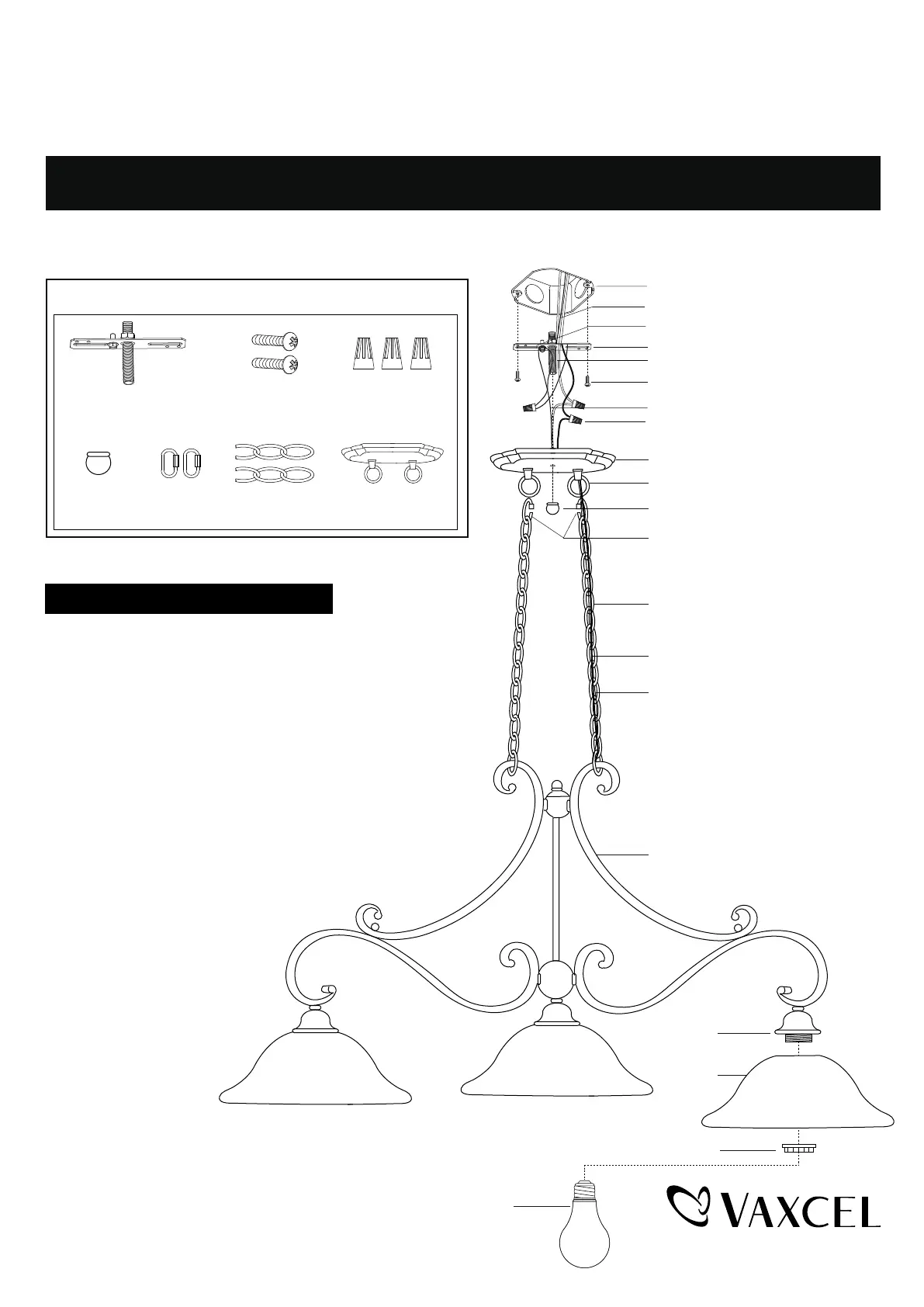

Hardware Package (included):

Turn off the power at fuse or circuit box.

Installation Steps

Mounting Strap Unit (A)Mounting Screw (B)

Finial (D)

Wire Connector (C)

Loop Lock (E)Canopy (G)

Chain (F)

House Ground Wire

Fixture Ground Wire

Wire Connector (C)

Mounting Strap Unit (A)

Green Ground Screw

Mounting Screw (B)

Canopy (G)

Loop

Finial (D)

Loop Lock (E)

Chain (F)

Fixture Ground Wire

Arm

Glass Holder

Glass Shade

Socket Ring

Fixture Wire

Threaded Pipe

Outlet Box

Medium Base Bulb

Max.100W (not included)
