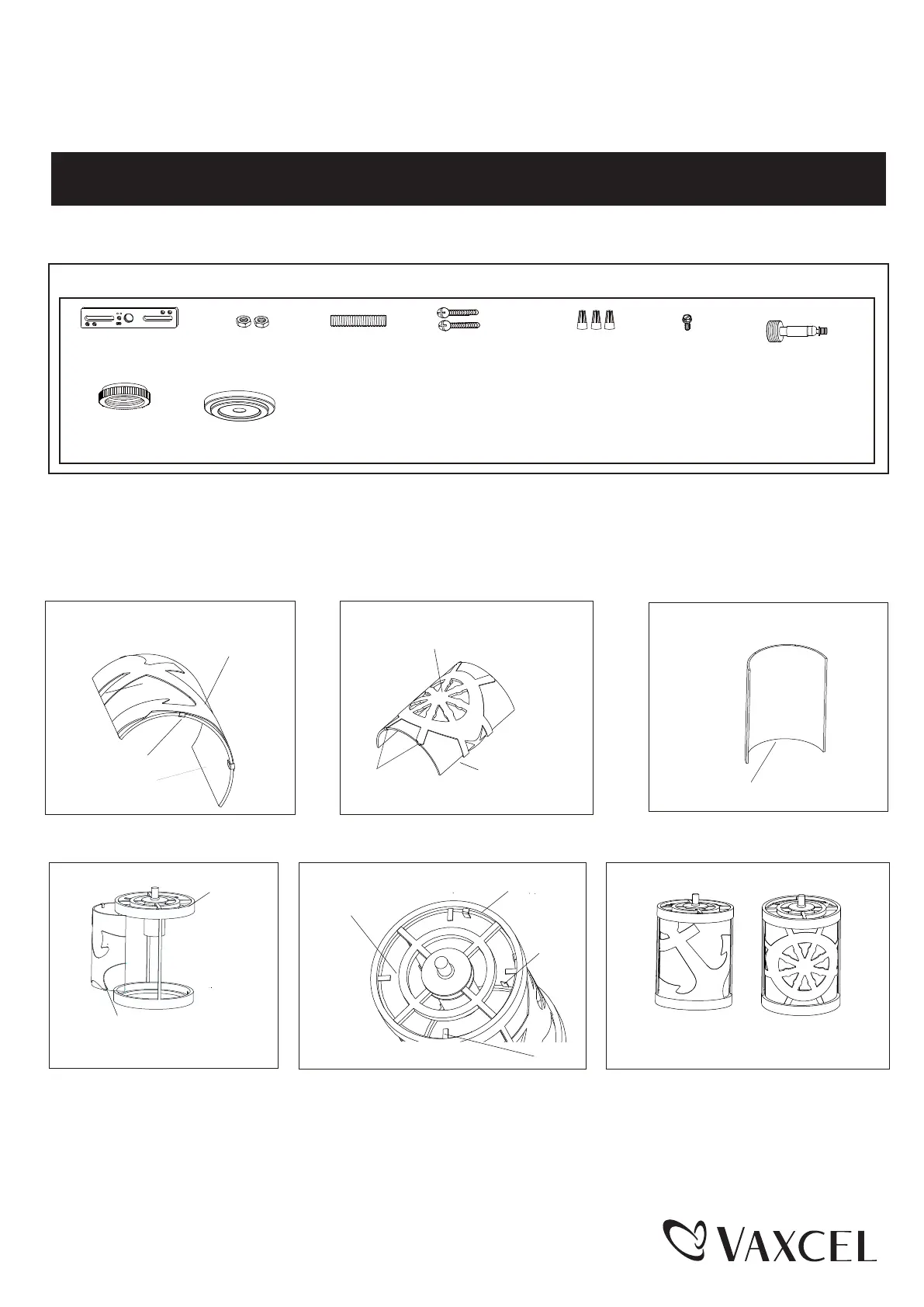

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
P0221 / P0225
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
170105
Important: You may choose the glass panel (with or without metal-cut silhouette, see Fig.1 & Fig. 2 & Fig. 3) for
installation as you desire.
Preparation For Installation
Mounting Screw (D)
Hex Nut (B)
Wire Nut (E)
Mounting Strap (A)
Nipple (C)
Green Grounding
Screw (F)
Coupling Kit (G)
Collar (H)
Canopy (I)
Glass Panel
Glass Panel
Glass Panel
Metal Frame
Metal-Cut Silhouette
Metal-Cut Silhouette
Clip
Clip
Glass Panel (with or without
Metal-Cut Silhouette)
Glass Panel (with or without
Metal-Cut Silhouette)
Metal Frame
Fig.1
Fig.2
Fig.3
Fig.5
Fig.6
Fig.4
Metal-Cut Silhouette Assembly: Secure the clips of metal-cut silhouette onto the glass panel tightly. Adjust the surface
radian of metal-cut silhouette to match the surface of glass.(Fig.1 &Fig.2))
1. Gently slide the glass panel (with or without metal-cut silhouette) into the metal frame as shown on Fig. 3
2. Having one side of glass panel located into the slot of “L” clips first, and then secure another side by folding the clips on
it (see Fig. 4)
3. See the finished look of glass panels with complete metal-cut silhouettes as shown on Fig. 5.
Glass Panel Assembly (with or without Metal-Cut Silhouette):
Clip
“L” Clip
Front View
Back View
