1. Loosen the plastic headless screw on the canopy by using a

flat head screwdriver (F) .

2. Measure the desired length of the cord (a) from the canopy to

the shade and leave additional 9" cord (b) above the canopy

(include the canopy), then cut off the unnecessary cord.

(See Fig.1)

3. Adjust strain relief at 9" position from the top of the cord.

4. Mark the 3" cord (c) from the top of the cord (b). Use a knife

to peel off the insulation of the cord (c) carefully to show the

3 inside wires. (See Fig.1)

Caution : Cutting too deep may cut off three inside wires

and destroy the insulation surface of the three inside wires.

5. Peel off the 3 wires from the top about 3/8" long (d) to

expose the copper for wiring.

6. Attach the mounting strap

unit (A)

to outlet box by using

two mounting screws

(B)

.

7. Pull out the source wires from the outlet box. Make wire

connections using wire connectors (C) as follows:

• Connect the hot wire (black insulation) from the fixture to

the black wire from the power source.

• Connect the neutral wire (white insulation) from the fixture to

the white wire from the power source.

• Attach the fixture ground wire (green insulation) to the house

ground wire with a wire connector (C).

Carefully put all of the wires back into the outlet box.

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save this instruction.

P0362

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Turn off the power at fuse or circuit box.

Installation Steps

Mounting Screw (B)Wire Connector (C)

Strain Relief (E)

Mounting Strap Unit (A)

Bolt Nut (D)

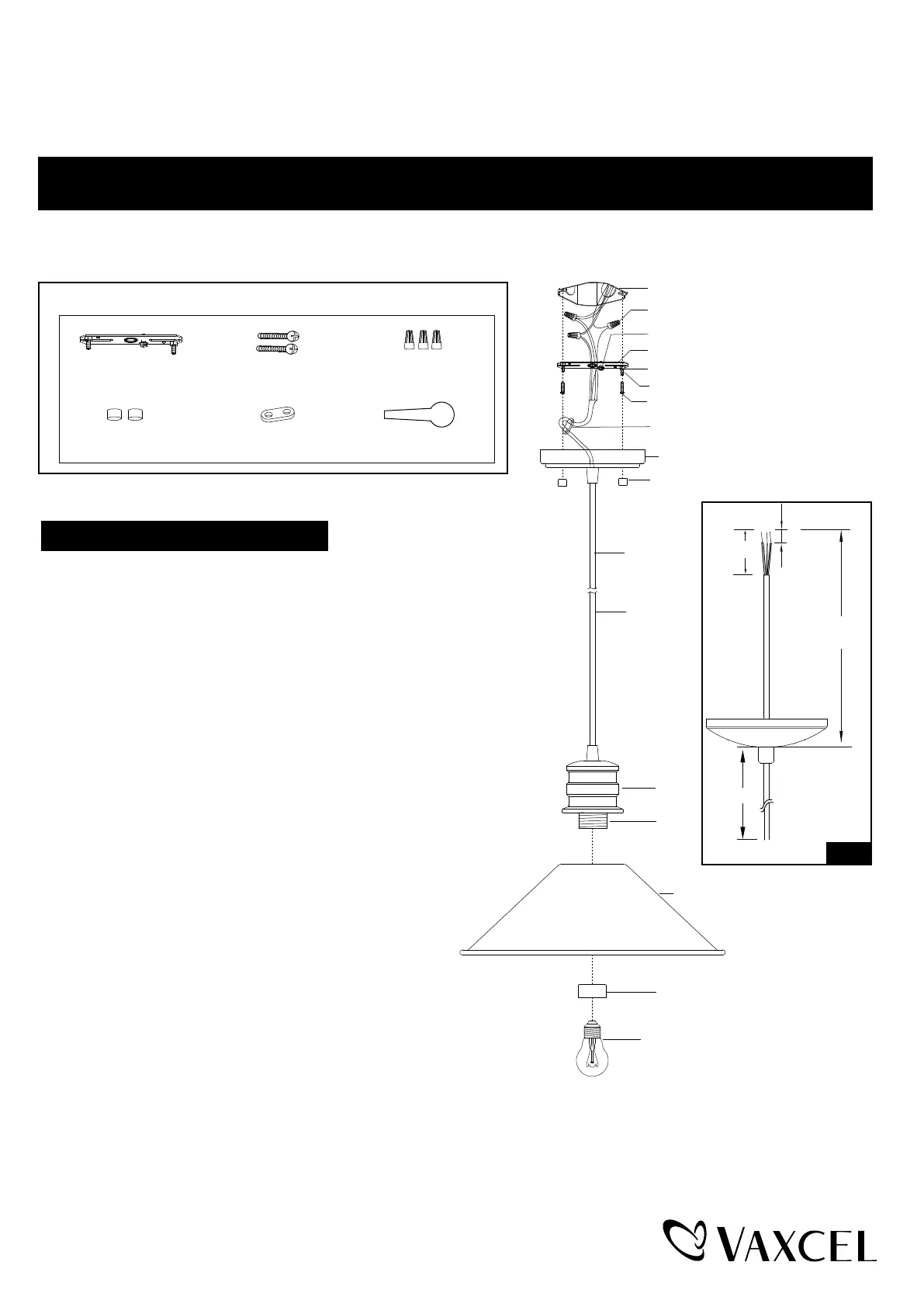

Fig.1

a

c (3")

d (3/8")

b (9")

Fixture

Shade

Socket

Cord

Fixture Wire

Socket Ring

Max.60W Medium Base Bulb

(not included)

Strain Relief (E)

Bolt Nut (D)

Mounting Strap Unit (A)

Lock Nut

Wire Connector (C)

Green Ground Screw

Fixture Mounting Screw

Mounting Screw (B)

Outlet Box

Canopy

Flat Head Screwdriver (F)
