1. Rod Connections:
a. Thread the fixture wire from the fixture through the lower rod, then
secure the lower rod onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod, and then secure the
middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod and the hook, then
secure the upper rod onto the middle rod using the threaded pipe,
attach the hook onto the upper rod using the threaded pipe.
The height can be adjustable to 15"~57", by using the rods.
2. Thread the fixture wire through canopy, then hook the rod assembly
to the loop.
3.
Unscrew two ball nuts, remove mounting strap from canopy
4. Attach the mounting strap to outlet box by using two mounting screws.
5. Pull out the source wires from the outlet box. Make wire connections
using wire nuts as follows:
---Connect the smooth-coated wire (marked) from the fixture to the black
wire from the power source.
---Connect the ribbed-coated wire (unmarked) from the fixture to the white
wire from the power source.
---Attach the fixture grounding wire to the mounting strap with the green
grounding screw. Then connect it to the house grounding wire with a
wire nut.
Carefully put the wires back into the outlet box.
6. Attach the canopy to the mounting strap by inserting the fixture mounting screws, and secure it with two ball nuts.
7. Attach bulb(not included) to the socket. See relamping label at socket area or packaging for maximum allowed wattage.
8. Attach the glass shade to the fixture, secure it with three set screws.
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.
P0153 / P0154
141117
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

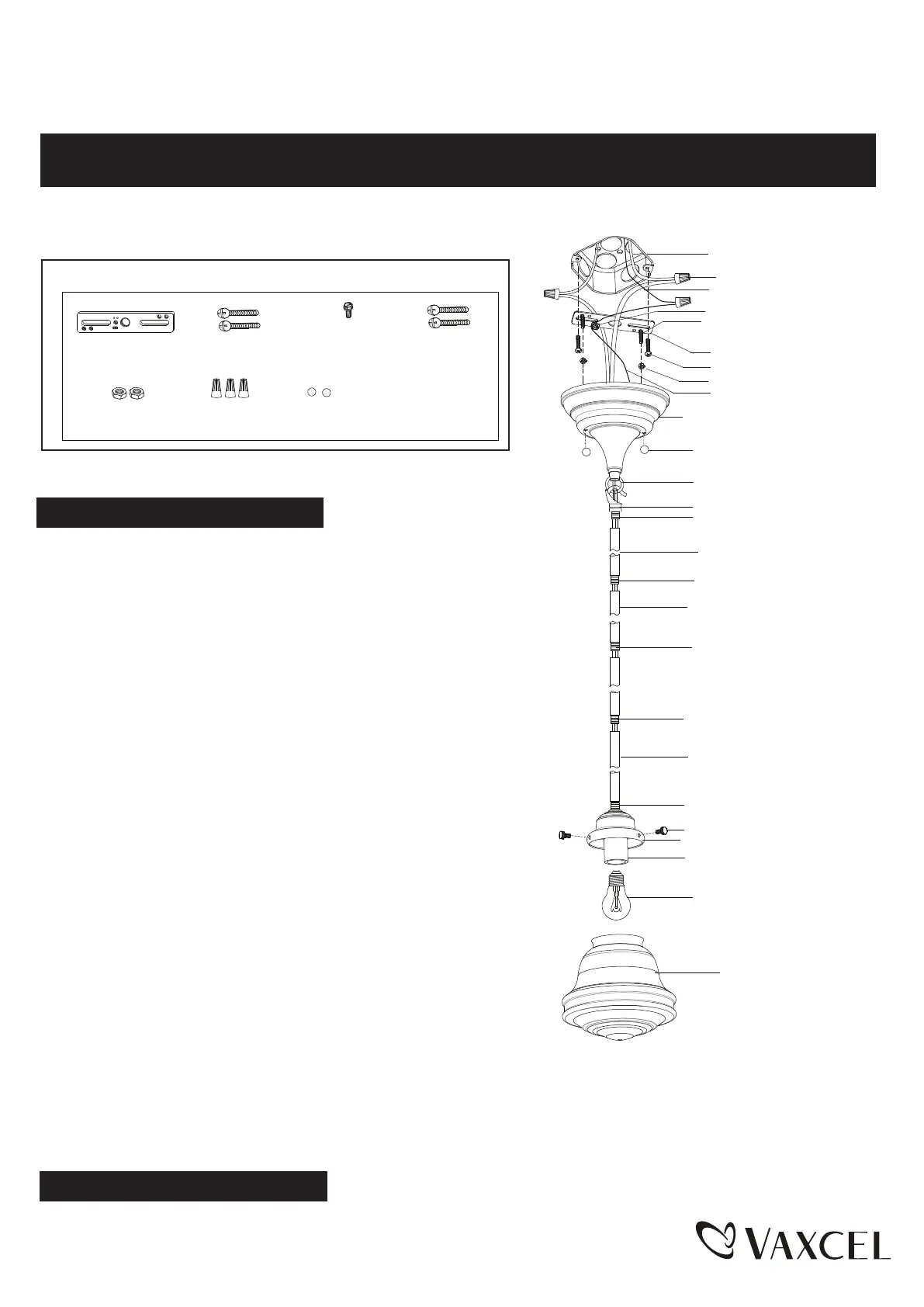

Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
Mounting Screw (B)
Lock Nut (E)
Wire Nut (F)
Mounting Strap (A)
Fixture mounting
Screw (D)
Green Grounding
Screw (C)
Ball Nut(G)
Canopy
Outlet Box
House Grounding Wire
Wire Nut (F)
Green Grounding Screw(C)
Fixture mounting screw(D)
Mounting Strap(A)
Mounting Screw(B)
Lock Nut(E)
Ball Nut(G)
Loop
Upper Rod
Hook
Threaded Pipe
Lower Rod
Middle Rod
Threaded Pipe
Set Screw
Socket
Fixture
Glass Shade
Threaded Pipe
Threaded Pipe
Threaded Pipe
Bulb Type A Max.60W
(Not Included)
Fixture Grounding Wire
Turn on the power at fuse or circuit box.
