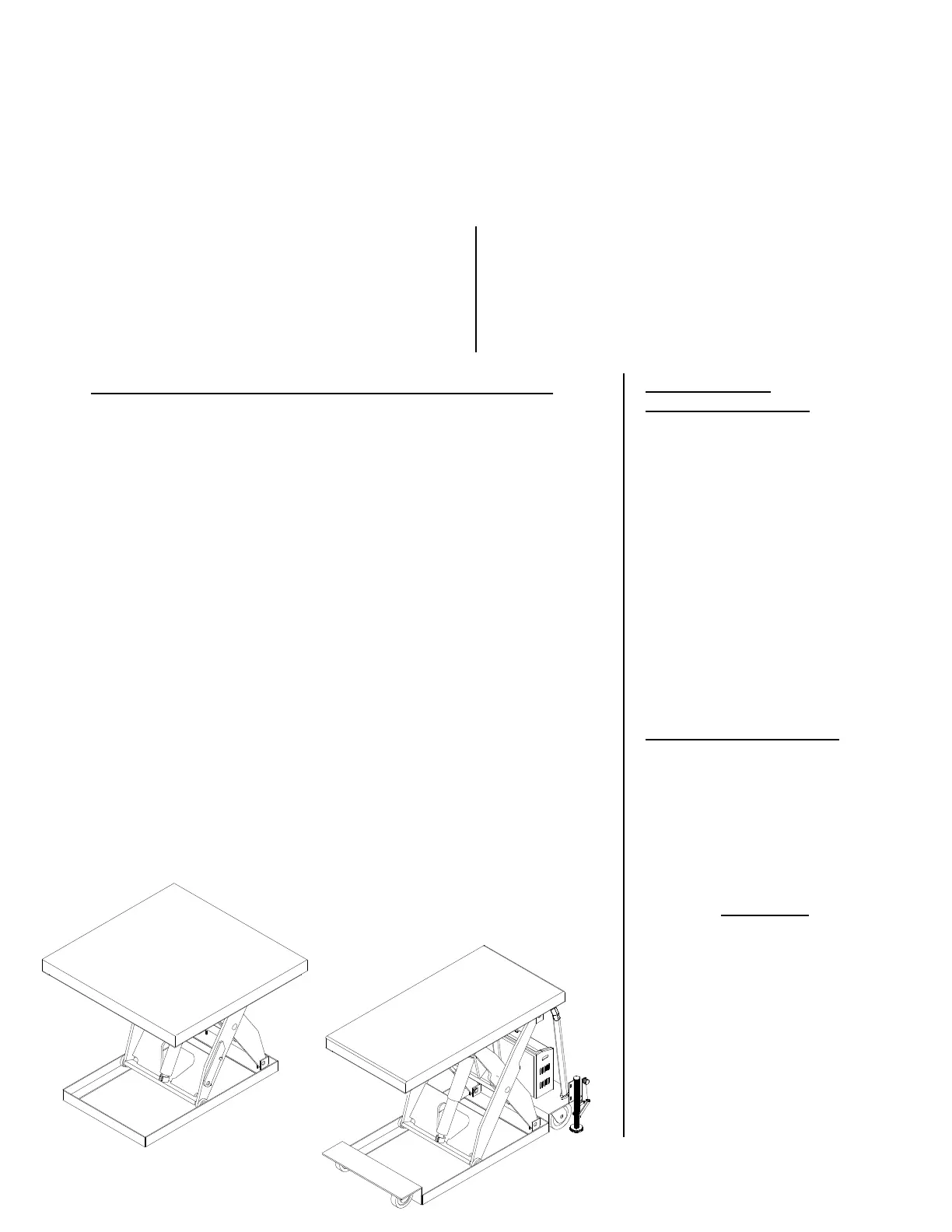

EHLT, EHLTD & PST, 24-126-120, 0413.doc

V

ESTIL MFG.CO. 1

VESTIL MANUFACTURING CORP.

2999 N. Wayne St., Angola, IN 46703

Ph: 260-665-7586 · Fax: 260-665-1339

E-mail: [email protected] · Website: www.vestil.com

MODELS EHLT(1-4K),EHLTD(2K,70RH)&PST(1-3K),

43”-55” RAISED HEIGHTS

Serial number ____________

Installation Instructions ……..................…………....… 2

Operation Instructions ……………………….….…… 3-4

Routine Maintenance & Safety Checks …………….… 5

Structural, Exploded Parts (EHLT) .............…….….…. 6

Structural, Exploded Parts (PST) ...........………............ 7

Structural Bill of Materials (EHLT & PST) ................... 8

Motor & Transformer Connections ................................ 9

Electrical & Hydraulic Diagrams .............................. 10-12

Power Unit’s Operation ………………...…..………... 13

DC Power Unit, Exploded Parts ................................ 14-15

AC Power Unit, Exploded Parts ................................ 16-17

Troubleshooting …………………………....………… 18

Safety Label Identification .............................................19

Warranty …………………………………….……..…. 20

IMPORTANT NOTES,WARNINGS AND SAFETY INSTRUCTIONS

Ensure that all employees understand and follow the following.

Failure to read and understand this owner’s manual before using or

servicing the scissor lift constitutes a misuse of the product. All persons

who will install, use, or care for this product must be familiar with this

information.

oNon-portable units must be securely anchored to a level concrete surface.

oThe scissor lift is intended for use only on level, concrete surfaces.

oThe lift’s load must be centered and evenly distributed on the platform.

oThe platform should be lowered before transporting any loads (PST only).

oThe load must be removed and the platform fully lowered before any work

is performed on the scissor lift.

oDo not use the scissor lift if any damage or unusual noise is observed.

oAlways watch the load carefully when the scissor lift is in operation.

oEnsure that all information/ safety/warning labels remain in place and are

legible. See the labels page.

oFor battery-powered units, review the Battery Info page.

oDo not use brake fluid or jack oils in the hydraulic system. If oil is needed,

use an anti-wear hydraulic oil with a viscosity grade of

150 SUS at 100°F, (ISO 32 cSt @ 40°C), or Dexron transmission fluid.

oContact the manufacturer for any needed MSDS information.

Do not perform any modifications to the scissor lift without the

manufacturer’s approval. Failure to receive authorization for changes to

the equipment could void the warranty.

Maintenance and repairs are to be done only by personnel qualified to

perform the required work. Consideration will not be given for warranty

repair charges without prior written authorization by the manufacturer.

WHEN ORDERING

REPLACEMENT PARTS:

We take pride in using quality

parts on the equipment we

manufacture. We are not

responsible for equipment

problems resulting from the use

of unapproved replacement

parts.

To order replacement or

spare parts for this equipment,

contact the factory.

In any communication with

the factory please be prepared

to provide the machine’s serial

number, which is indicated on

the machine dataplate.

RECEIVING INSTRUCTIONS

It is possible that this product

could incur damage during

transit.

Inspect the unit closely when

it arrives. If you see evidence

of damage or rough handling to

either the packaging or to the

product when it is being

unloaded, immediately

make a

note of it on the Bill Of Lading!

It is important that you

remove the product’s packaging

upon its arrival to ensure that

there is no concealed damage

or to enable a timely claim with

the carrier for freight damage.

Also verify that the product

and its specifications are as

ordered.

OWNER’S

MANUAL
