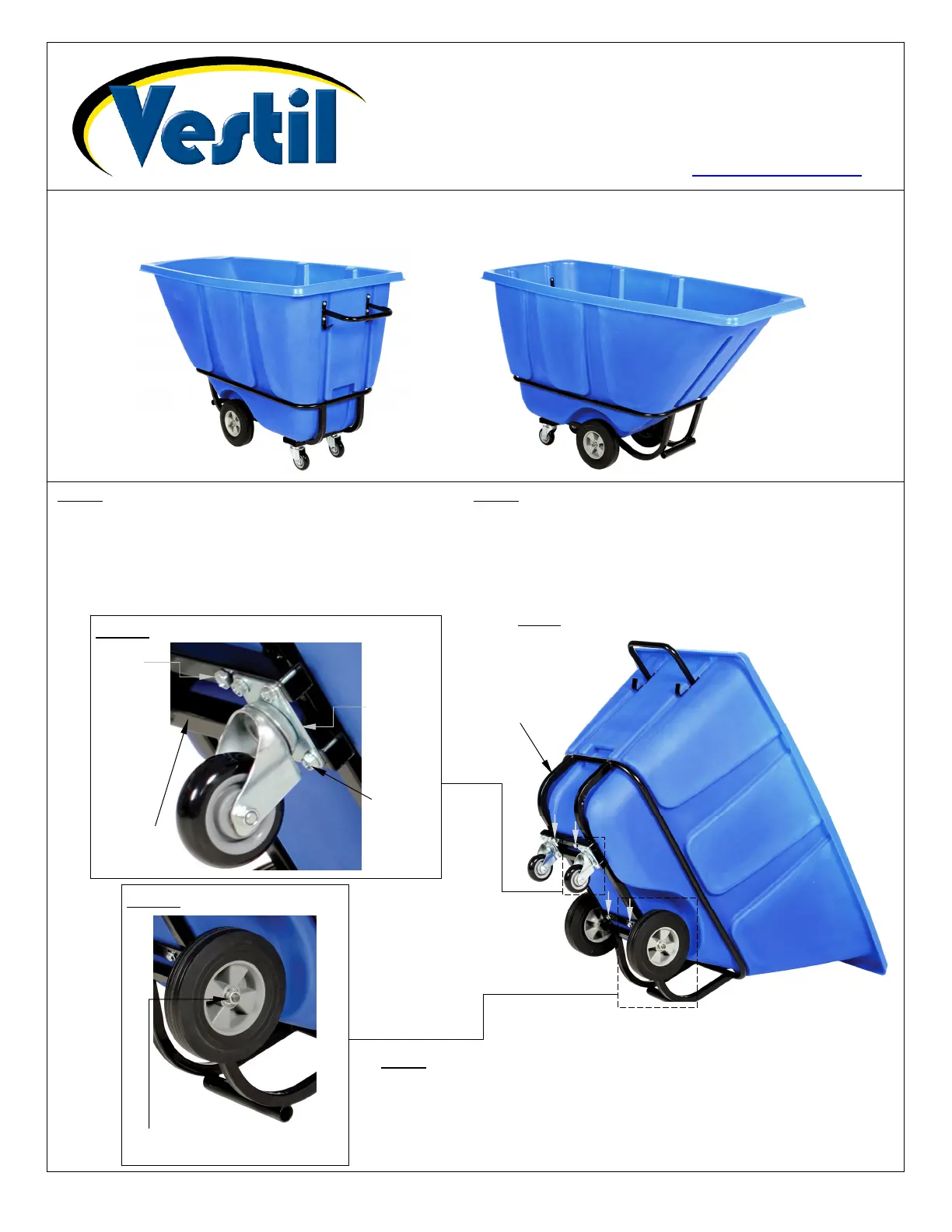

Rev. 2/18/2015 TDT-50-HD, MANUAL.doc

Copyright 2015 Vestil Manufacturing Corp. Page 1 of 2

TDT-50-HDSERIES HEAVY DUTY MOLDED POLYURETHANE BINS (0.5YD

3

)

ASSEMBLY MANUAL

FIG. 1: Complete bin assembly

VESTIL MANUFACTURING CORP.

2999 North Wayne Street, P.O. Box 507, Angola, IN 46703

Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868

Fax: (260) 665-1339

www.vestilmfg.com e-mail: [email protected]

FIG. 1A: Attach casters

Step 2: Fasten the carriage to the underside of the bin at

the four locations highlighted with light-colored arrows

below. To attach the carriage to the bin, use the 4 large hex

head screws provided with the product. Insert the screws

through slots in the cross rails of the undercarriage and into

the bin as shown in FIG. 1A.

Step 3: Slide a wheel onto each end of the axle. The threaded ends of

the axle should project from the wheel hubs. Secure each wheel to the

axle with hex nuts as shown in FIG. 1B.

FIG. 1B: Attach wheels to axle

Tighten hex nut against metal

hub to secure wheel on axle

Step 1: Fasten the casters (2) to the carriage. [NOTE:

Attach casters before attaching carriage to bottom of bin.]

Align the bolt holes in the mounting brackets of the

casters with the corresponding bolt holes in the cross

rails of the undercarriage; then install the (small) caster

bolts through the holes and secure them with hex nuts as

shown in FIG. 1

A

.

Carriage

Cross rail

of carriage

Hex

head

screw

Caster

bolt and

hex nut

Mounting

bracket
