VCH SERIES

COOK & HOLD

CABINETS

MODEL

VCH5 ML-126339

VCH8 ML-126340

VCH16 ML-126341

VCH88 ML-126342

CATALOG OF

REPLACEMENT PARTS

MODEL VCH16

For additional information on Vulcan-Hart or to locate an authorized parts

and service provider in your area, visit our website at www.vulcanhart.com

VULCAN-HART

DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC

WWW.VULCANHART.COM

P.O. BOX 696, LOUISVILLE, KY 40201-0696

TEL. (800) 814-2028

FORM 37118 (Oct. 2007)

– 2 –

VCH SERIES COOK & HOLD CABINET REPLACEMENT PARTS

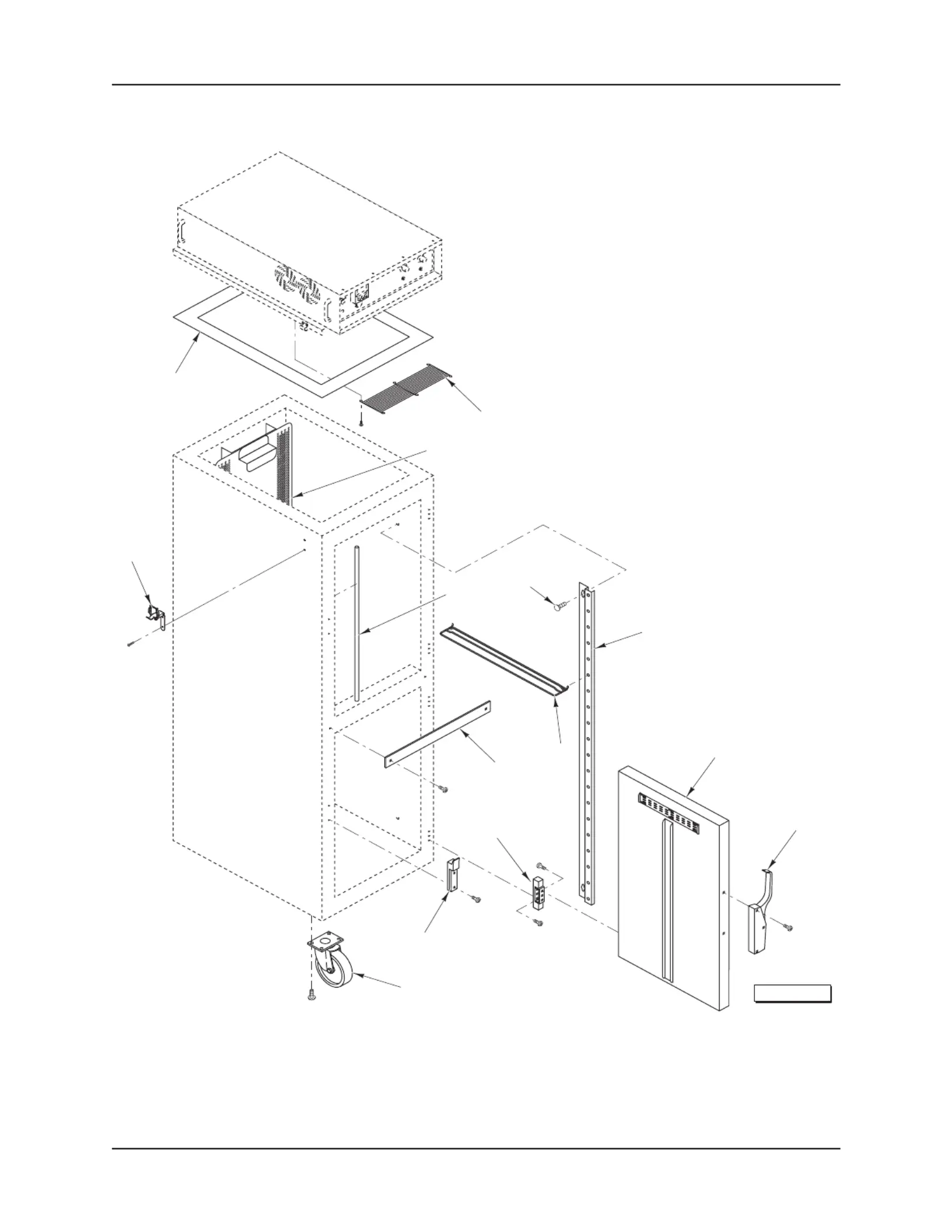

CABINET AND DOOR

18-19

1 4

1 6

2 - 3 - 4

1 5

1 4

1 1 - 1 2 - 1 3

8 - 9 - 1 0

2 0

PL-57201-V

1 7

– 3 –

REPLACEMENT PARTS VCH SERIES COOK & HOLD CABINET

CABINET AND DOOR

ILLUS. PART

PL-57201-V NO. NAME OF PART AMT.

1 00-851800-00066 Gasket – Hot Top Seal (Orange) ........................................................................................... AR

2 00-851800-00091 Tunnel – Air Flow (VCH5) ......................................................................................................... 1

3 00-851800-00092 Tunnel – Air Flow (VCH8, VCH88) ......................................................................................... AR

4 00-851800-00093 Tunnel – Air Flow (VCH16) .......................................................................................................1

5 00-851800-00037 Grate – Blower Air .................................................................................................................. AR

6 00-851800-00017 Gasket – Door Seal (Black) (Sold Per Foot) ........................................................................... AR

7 00-851800-00026 Bolt – Retaining (Side Rack) ................................................................................................... AR

8 00-851800-00075 Support – Rack (VCH8, VCH88) ............................................................................................... 4

9 00-851800-00076 Support – Rack (VCH16) .......................................................................................................... 4

10 00-851800-00074 Support – Rack (VCH5) ............................................................................................................ 4

11 00-851800-00053 Door (VCH8, VCH88) .............................................................................................................. AR

12 00-851800-00054 Door (VCH16) ............................................................................................................................ 1

13 00-851800-00052 Door (VCH5) ..............................................................................................................................1

14 00-851800-00056 Latch – Door (Complete w/Catch) .......................................................................................... AR

15 00-851800-00310 Slide – Universal (Set of 2) ..................................................................................................... AR

16 00-851800-00329 Bar – Divider (VCH16) .............................................................................................................. 1

17 00-851800-00018 Hinge – Door ............................................................................................................................ AR

18 00-851800-00038 Caster – Heavy Duty (Rigid) ..................................................................................................... 2
