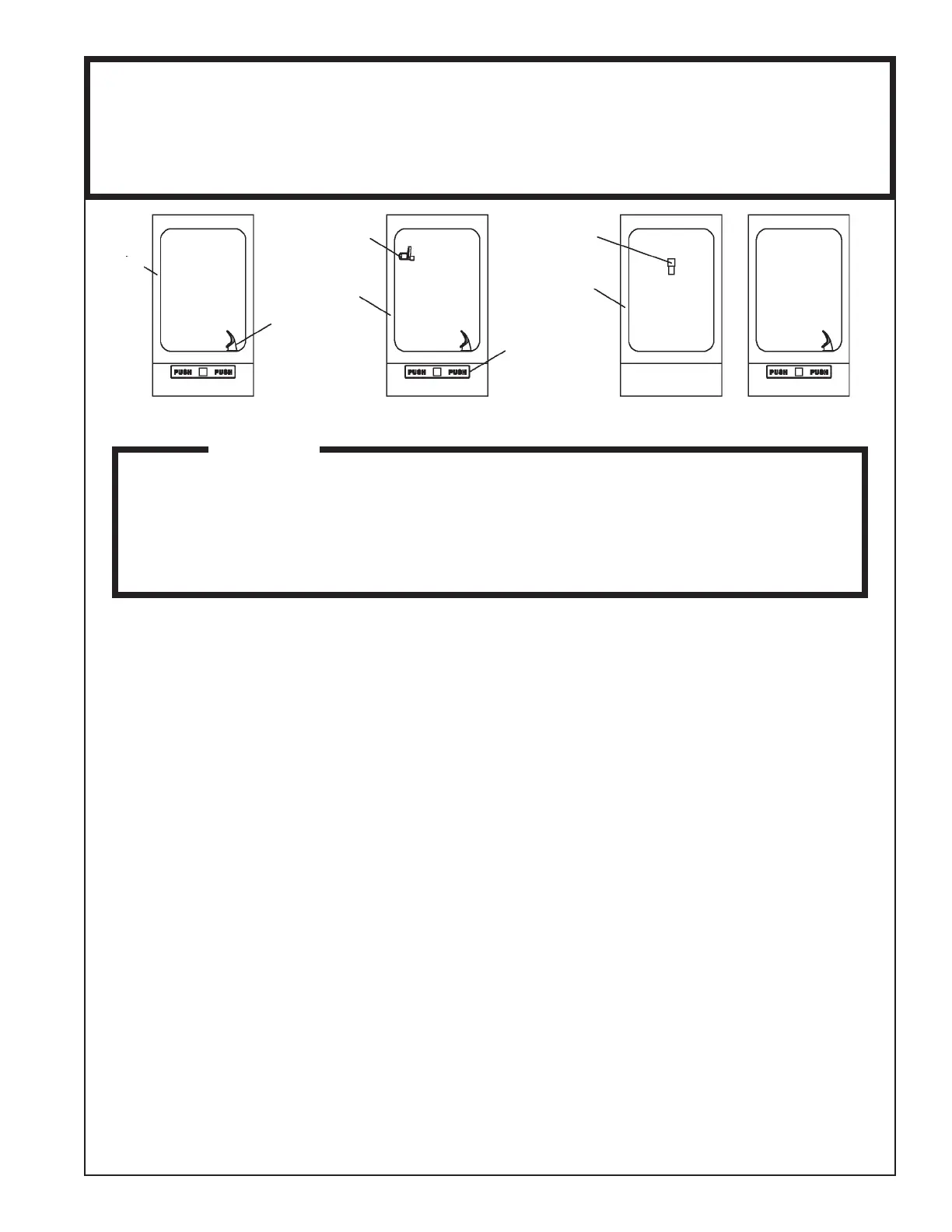

97165C (Rev. K - 08/16)
EDFB12C*A EDFB12FC*A EDFBC212C*A
Page 1
Installation/Care/Use Manual
Fully Recessed Fountain/Cuspidor
with FLEXI-GUARD
®
IMPORTANT
ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON
To assure you install this model easily and correctly, PLEASE READ THESE
SIMPLE INSTRUCTIONS BEFORE STARTING TH INSTALLATION. CHECK YOUR
INSTALLA-TION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL AND OTHER
APPLICABLE CODES. After installation, leave these instructions inside the fountain
for future reference.
SEE FIG. 3
20
EDFB12C EDFBC212CEDFB12FC
22
21
SEE FIG. 7
SEE FIG. 9
SEE FIG. 4
INSTALLATION INSTRUCTIONS
1. Prepare wall opening(s) and attach wall hanger bracket(s) for the fountain (and cuspidor when applicable) using dimensions shown in
Figures 1 and 2.
2. Remove lower panel from drinking fountain (and cuspidor) by removing the two screws at the lower corners. Rotate the bottom of the
panel out to clear the push bar, and pull gently downward to remove.
3. Water supply is 3/8" O.D. unplated copper and waste tailpiece(s) are 1-1/4" O.D. Contractor is to supply waste trap(s) and service stop
valve in accordance with local codes.
4. Connecting lines to be unplated copper and thoroughly ushed to remove all foreign matter before connecting to fountain assembly.
5. Install fountain (and cuspidor) into rough-in opening(s).
6. Connect the fountain to the supply line with a shut off valve and install a 3/8" (10mm) unplated copper water line between the valve and
strainer. Push the tubes straight into the ttings until they reach a positive stop, approximately 3/4". See Figs. 5 and 6.
DO NOT SOLDER TUBES INSERTED INTO THE STRAINER AS DAMAGE TO THE O-RINGS MAY RESULT.
7. On cuspidor models, connect 1/4 tube coiled in fountain to spreader.
8. Turn water supply on and check thoroughly for leaks.
9. Release air from water line by depressing push bar; a steady stream of water assures all air is removed.
10. Re-check for leaks.
11. Stream height is factory set at 35 PSI. If supply pressure varies greatly from this, turn adjustment screw on regulator (item 1). Clockwise
adjustment will raise the stream height and counter-clockwise adjustment will lower stream height. For best adjustment, stream should hit
basin approximately 6-1/2" from the bubbler.
TROUBLE SHOOTING AND MAINTENANCE
1. Orice Assy: Mineral deposits on orice can cause water ow to spurt or not regulate. Mineral deposits may be removed from orice with
a small round le not over 1/8 diameter or a small diameter wire. CAUTION: Do not le or cut orice materials.
2. Actuation of Quick Connect Water Fittings: Cooler is provided with lead-free connectors which utilize an o-ring water seal. To remove
tubing from the tting, relieve water pressure, push in on the gray collar while pulling on the tubing (See Fig. 6). To insert tubing, push tube
straight into the tting until it reaches a positive stop, approximately 3/4".
THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES
IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM
THE BUILDING. THIS GROUNDING CAN CAUSE ELECTRICAL FEEDBACK INTO A FOUNTAIN, CREATING AN
ELECTROLYSIS WHICH CAUSES A METALLIC TASTE OR AN INCREASE IN THE METAL CONTENT OF THE WATER.
THIS CONDITION IS AVOIDABLE BY USING THE PROPER MATERIALS AS INDICATED. ANY DRAIN FITTINGS
PROVIDED BY THE INSTALLER SHOULD BE MADE OF PLASTIC TO ELECTRICALLY ISOLATE THE FOUNTAIN
FROM THE BUILDING PLUMBING SYSTEM.
