EDFP19C*B

98655C (Rev. B - 08/16)

Page 1

FIG. 1FIG. 2

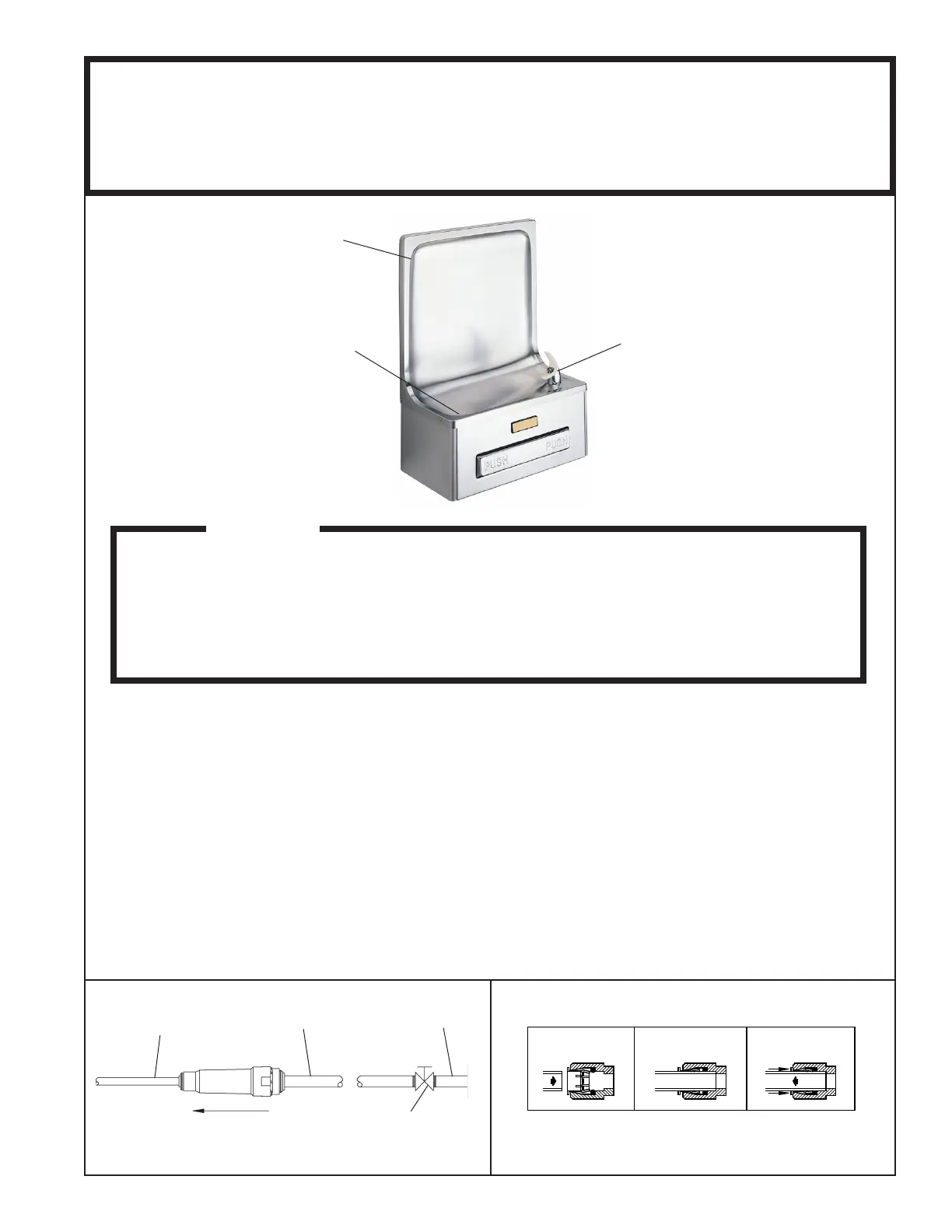

Installation/Care/Use Manual

Semi-Recessed Wall Mount Fountain with FLEXI-GUARD

®

To assure you install this model easily and correctly, PLEASE READ THESE SIMPLE

INSTRUCTIONS BEFORE STARTING THE INSTALLATION. CHECK YOUR

INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL AND OTHER

APPLICABLE CODES. After installation, leave these instructions inside the fountain

for future reference.

IMPORTANT

ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON

11

SEE FIG. 3

SEE FIG. 4

IMPORTANT! INSTALLER PLEASE NOTE.

THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO

WATER LINES IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY

OCCUR AWAY FROM THE BUILDING. THIS GROUNDING CAN CAUSE ELECTRICAL FEEDBACK INTO

A FOUNTAIN, CREATING AN ELECTROLYSIS WHICH CAUSES A METALLIC TASTE OR AN INCREASE

IN THE METAL CONTENT OF THE WATER. THIS CONDITION IS AVOIDABLE BY USING THE PROPER

MATERIALS AS INDICATED. ANY DRAIN FITTINGS PROVIDED BY THE INSTALLER SHOULD BE MADE

OF PLASTIC TO ELECTRICALLY ISOLATE THE FOUNTAIN FROM THE BUILDING PLUMBING SYSTEM.

Installer

BCA

SIMPLY PUSH IN

TUBETOATTACH

TUBE IS SECURED

INPOSITION

PUSH IN COLLET

TORELEASETUBE

OPERATIONOFQUICKCONNECTFITTINGS

PUSHINGTUBEINBEFORE

PULLINGITOUTHELPSTO

RELEASETUBE

OPERATION OF QUICK CONNECT FITTINGS

SIMPLY PUSH IN

TUBE TO ATTACH

TUBE IS SECURED

IN POSITION

PUSH IN COLLET

TO RELEASE TUBE

PUSHING TUBE IN BEFORE

PULLING IT OUT HELPS TO

RELEASE TUBE

ABC

NOTE: WATER FLOW

DIRECTION

BUILDING WATER

INLET

SERVICE STOP

(NOT FURNISHED)

1/4" O.D. TUBE

WATER INLET

TO COOLER

3/8" O.D. UNPLATED COP-

PER TUBE CONNECT

COLD WATER SUPPLY
