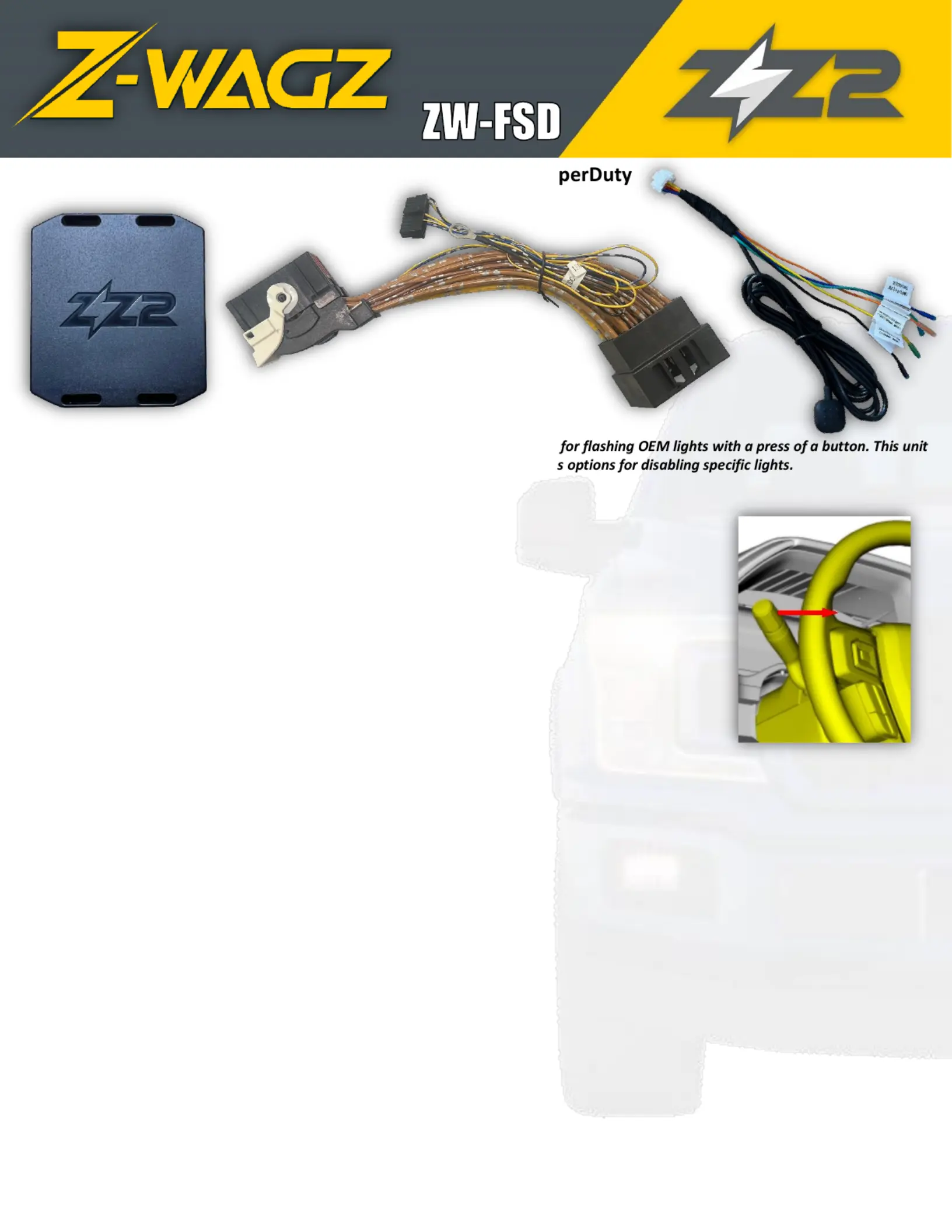

Plug & Play, OE Light-Controller for F’24 ORD F150 & ‘23+ Su

Thank you for purchasing a genuine Z-WAGZ unit, the simplest Plug & Play module

comes pre-programmed with 3 different light patterns and ha

ZW-FSD Operation:

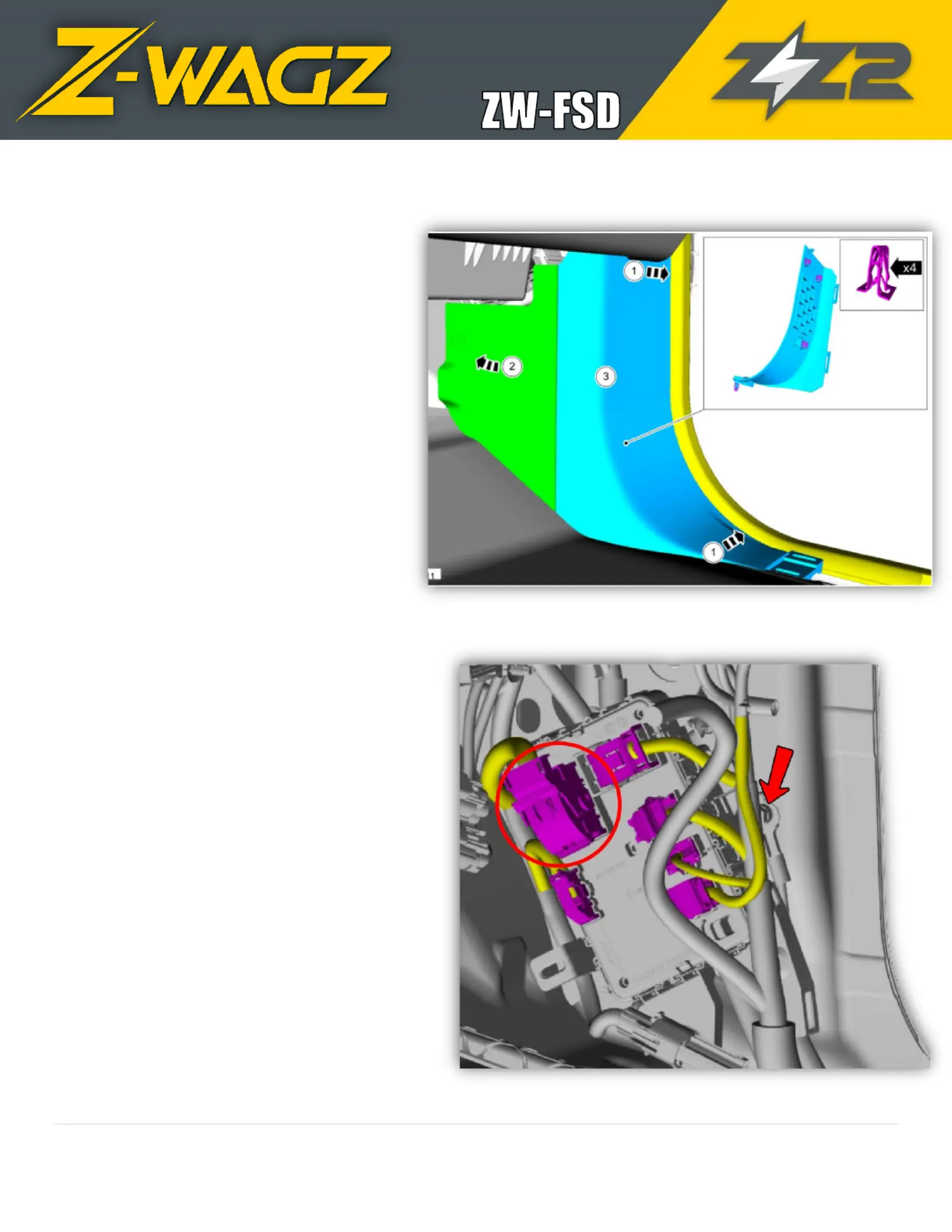

1.Install the Z-WAGZ unit to the factory Body Control Module (BCM). Follow instructions on page

2 for more details and important information with this process.

2.Turn Ignition ON or start vehicle (Ignition must be ON or vehicle running for proper operation)

3.To activate Z-WAGZ:

oPress and HOLD the high beam lever (5 sec) OR

oPress and HOLD the provided push button (3 sec) OR

oSend a (+) signal to the 12vblue wire (designed to be extended for OE up-fitter

switches or any aftermarket toggle). For this input method, as long as the wire has 12v

(+), the Z-WAGZ unit will stay active.

Pattern 1 will begin to flash. Once pattern 1 begins, the cluster turn signal (indicators) will blink 1 time,

indicating Pattern 1 has been selected. The LED on the unit will blink BLUE. See chart on page 4 for

remaining pattern color indication.

4.To switch to Pattern 2: (Pattern 1 must be currently active)

oEngage either turn signal, then press and HOLD the high beam lever once more (5

sec) . OR

oPress & release the provided push button one time

T cluster turn signal (indicators) will blink twice indicating Pattern 2 has been selected. heRepeat this

process to switch to the next pattern.

5.To deactivate Z-WAGZ:

oPress and HOLD the high beam lever (5 sec) OR

oPress and HOLD the provided push button (3 sec) OR

oRelease (+) signal to the 12vblue wire (if connected this way) OR

oTurn vehicle OFF

GENERAL NOTES:

•Vehicles equipped with LED lights should use LED patterns. Vehicles equipped with standard bulbs should use bulb patterns

but may get away with LED patterns (although some consistency may be lost).

•Not all lights on the vehicle are necessarily used, some lights are not controllable via CAN data commands.

•Z-WAGZ will retain the last used pattern, even after being disconnected from the harness (if ever).

•Turn signals, headlights & reverse lights will override pattern flashing when used, until turned off again.

•Lights on the external mirrors will only flash if wired with turn signals from factory .

•‘Plow Mode’, when active (INPUT 2), disables High & Low beam flashing and slows the pattern down so that the relay box

(plow module) can keep up with the flashing (prevents overheating).

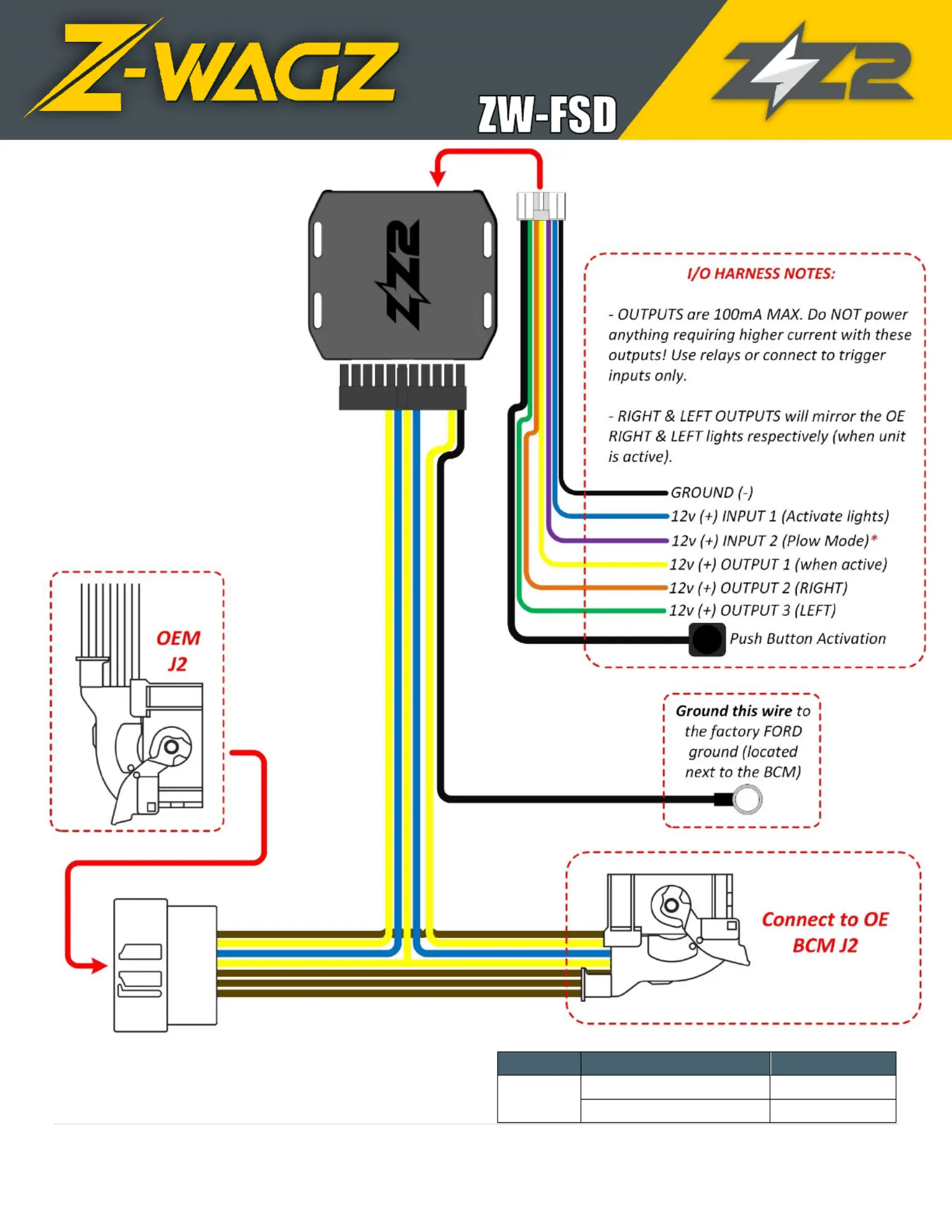

Activation Switch

and I/O Harness

ZW-FSD BCM

T-Harness
