Installation

2023/06/V1

Features

Pin

Pin-1

Pin-2

Pin-3

Pin-4

Black

Black

Red

Red

GND

GND

+12V

+12V

Cable

Colour

Signal

43

12

❹

❺

❺

❶

AKASA Company Notices

The information contained in this document is subject to change without notice. All rights reserved.

Reproduction, adaptation, or translation of this material is prohibited without prior written permission of

AKASA, except as allowed under copyright laws. The only warranties for AKASA products and services are

set forth in the express warranty statements accompanying such products and services. Nothing herein

should be construed as constituting an additional warranty. AKASA shall not be liable for technical or

editorial errors or omissions contained herein.

Warning

Electrostatic discharge (ESD) can damage system components. Use an ESD controlled workstation. If such

a workstation is not available, wear an antistatic wrist strap or touch an earthed surface before handling

any PC components.

Warranty

Warranties extend only to defects that occur during normal use and do not extend to

damage to products that results from incompatibility, abuse, misuse, negligence,

unauthorized repair, modification, incorrect installation, incorrect voltage supply,

air/water pollution, any accident or natural disasters. The warranty extends only on

Akasa product and does not cover a defective HDD, motherboard etc. as a result of a defective enclosure

or power adapter. Keep your original sales receipt in a safe place. Nothing herein should be construed as

constituting an additional warranty.

User Manual

Product Code: AK-PE200-01

Compact Power 200

200W DC-to-DC ATX Adapter with

4-pin Power DIN

ES

Características

• su diseño compacto soporta chasis de factor de forma pequeño

• conectar directamente en un conector ATX de 24 contactos

• transferencia de energía de alta eficiencia

• protección contra subidas de tensión y sobrevoltaje

JP

機能

•コンパクトなデザインで小型ファクタシャシ対応

•直接ATX24pinコネクタへ接続

•高効率の送電

•過電流・過電圧保護

CN

產品特色

• 小巧設計適合小尺寸機箱

• 可直接插於主板ATX 24pin接口

• 高效功率轉換

• 過功率及過電壓保護功能

FR

Caractéristiques

• design compact prenant en charge les châssis à petit facteur de forme

• brancher directement dans le connecteur ATX 24 broches

• transfert d'alimentation à haute ecacité

• protection de surpuissance et contre les surtensions

GB

Features

• Compact design supports Small Form Factor chassis

• Directly plug into ATX 24-pin connector

• High ecient power transfer

• Over power and over voltage protection

RU

Особенности

• Компактный дизайн с поддержкой шасси малого форм-фактора (SFF)

• Прямое подключение к 24-конт. разъему ATX

• Высокоэффективная передача питания

• Защита от перегрузок по мощности и напряжению

CZ

Vlastnosti

• Kompaktní konstrukce podporuje skříně s malými rozměry

• Zapojuje se přímo do 24pinového konektoru ATX

• Vysoce účinný přenos energie

• Ochrana proti přepětí a podpětí

PL

Cechy

• Kompaktowa konstrukcja obsługuje obudowy o niewielkich rozmiarach

• Bezpośrednie podłączenie do 24-pinowego złącza ATX

• Wysokowydajny transfer mocy

• Zabezpieczenie przed nadmiernym zasilaniem i napięciem

DE

Leistungsmerkmale

• kompaktes Design geeignet für Gehäuse mit kleinem Formfaktor

• direkter Anschluss an ATX 24-Pin Anschluss

• hocheziente Stromübertragung

• Überstrom- und Überspannungsschutz

PT

Características

• Formato compacto para gabinetes pequenos

• Conectado diretamente no ATX 24 pinos

• Alta eficiência na transferência de energia

• Proteção contra sobrecarga e voltagem

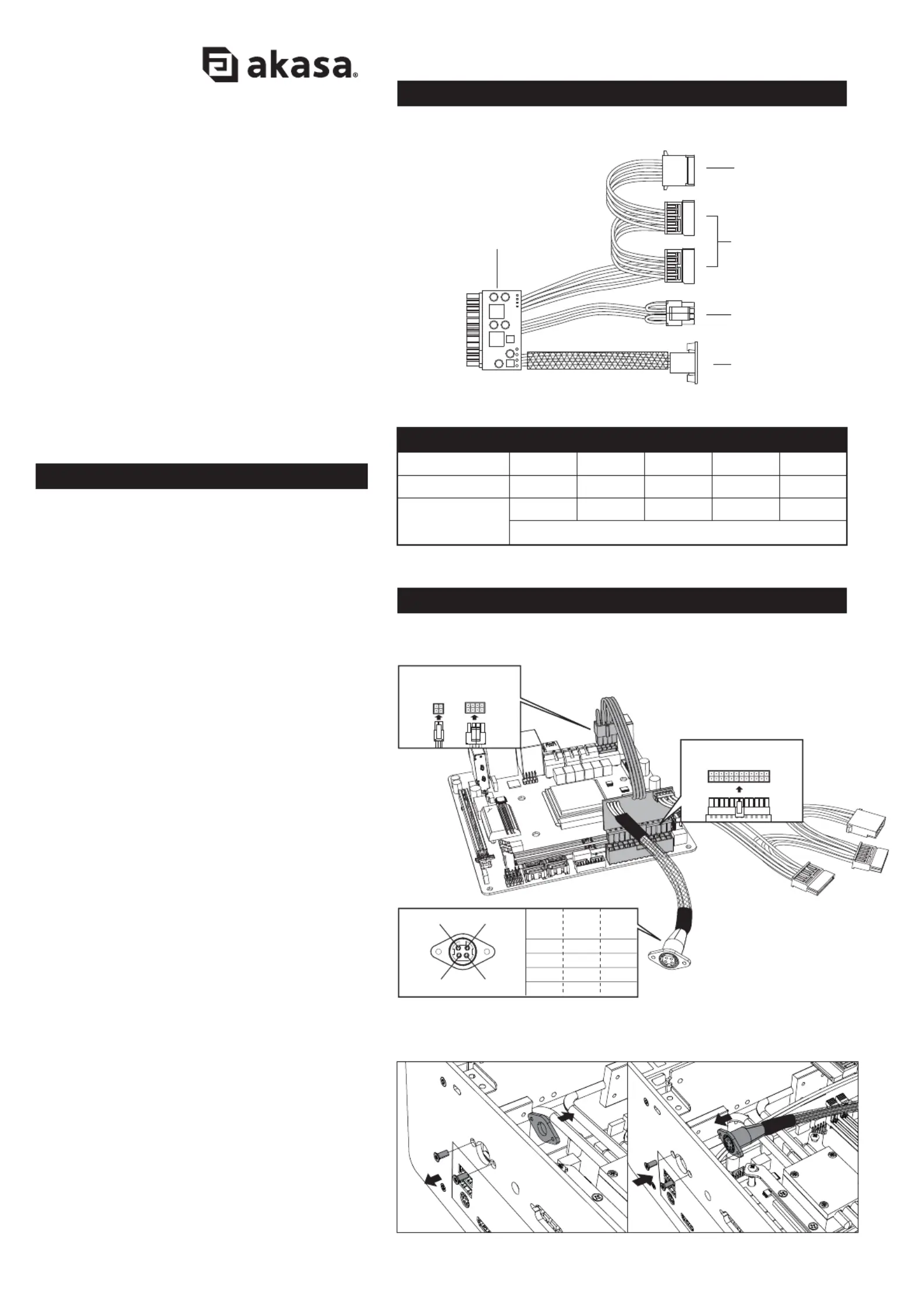

Layout

❶

ATX 24-pin

❺Power DIN 4-pin

❹CPU 8-pin

❷Molex 4-pin

❸SATA

ATX 24-pin

power cable connector

ATX 12V 4-pin or 8-pin

power cable connector

Output Specification

+3.3V

5A

16.5W

200W MAX.

+5V

5A

25W

+12V

15A

180W

-12V

0.1A

1.2W

+5VSB

1A

5W

Voltage

Max. Load

Combined

Wattage
