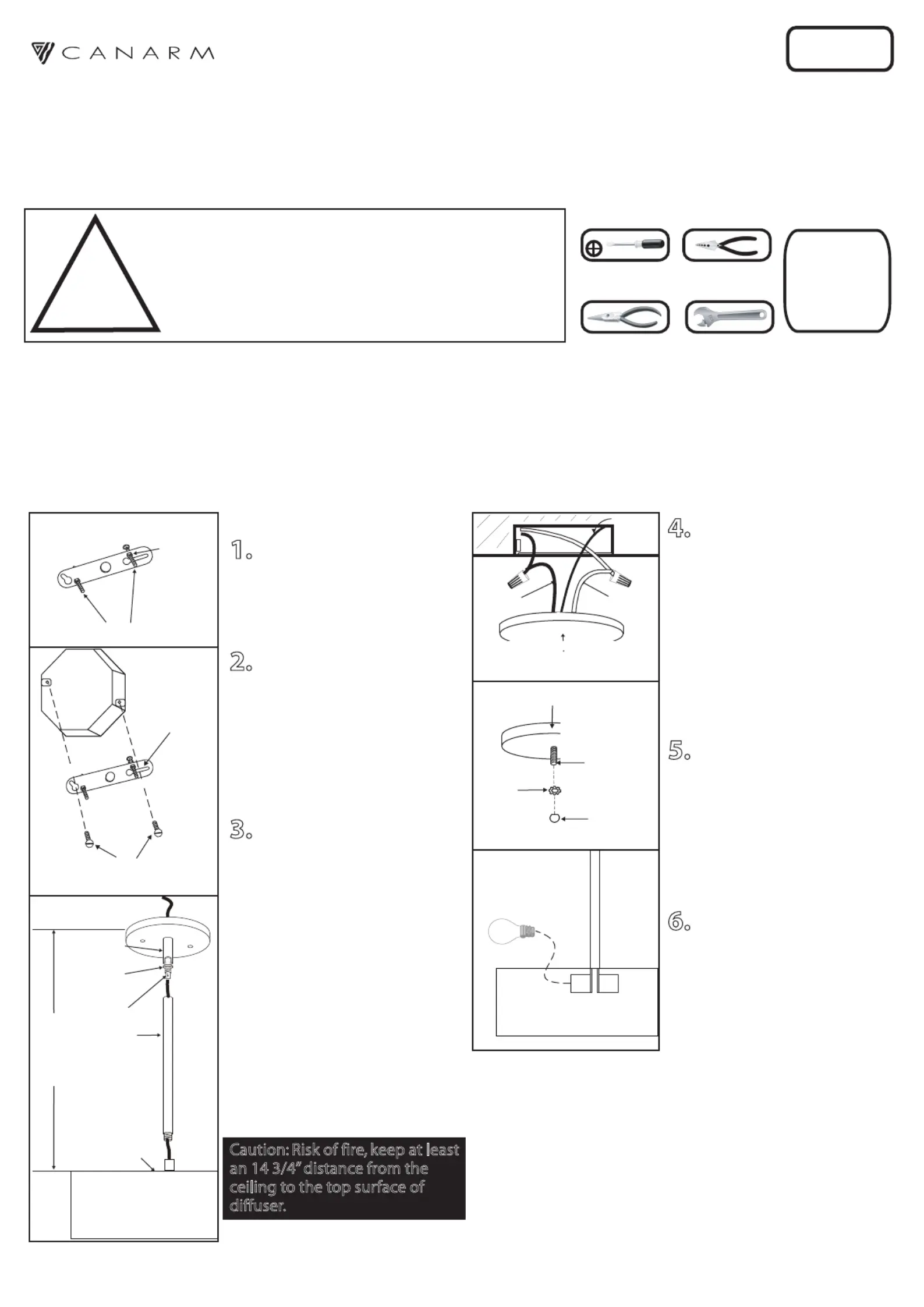

INSTALLATION:

Imported By: CANARM LTD., 2157 Parkedale Ave., Brockville, Ontario, K6V 5V6, Tel: (613) 342-5424, Fax: (613) 342-8437

SAFETY PRECAUTIONS:

!

“INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS”

“READ ALL INSTRUCTIONS”

“IMPORTANT SAFETY

INSTRUCTIONS”

“SAVE THESE INSTRUCTIONS”

4. Connect the ground wire

(bare copper or green) from

your fixture to the ground

wire (bare copper or green)

or ground screw in the

electrical outlet box. Connect

black wire from fixture to black

wire in outlet box and connect

the white wire from fixture to

white wire in outlet box.

5. Tuck electrical wires into

outlet box and position fixture

over studs or nipple on

mounting bracket assembly.

Secure fixture in place with star

washers and cap nuts.

6. Install the proper bulb

type and wattage (not

included).

White

Fixture

Black

Ground

Wire

Studs

“B”

Star

Washer

Cap

Nut

Fixture

Stud

1.Loosen “B”. Adjust stud to

desired length and lock in place

with “B”.

2. Mount the mounting

bracket to outlet box using

outlet box screws

(not included)

.

Make sure the studs or nipple

on the mounting bracket are

facing out from the outlet box.

3. Screw lower downrod into

the fixture. Install swivel to the

rod, ensuring that the sleeve is

at the swivel. Tighten the

locking nut to secure rod to the

fixture.

Note: Remove fixture pan, plate

and rods if required (If you wish

to change the downrod length)

Install the length of rod that is

required by threading wire

through the rod and securing it

to the fixture.

Caution: Risk of fire, keep at least

an 14 3/4” distance from the

ceiling to the top surface of

diffuser.

Outlet Box

Screws (not included)

Outlet

Box

Mounting

Bracket

Fixture

Locking

Nut

Sleave

Rod

at

least

14 3/4”

Swivel

TOOLS AND MATERIALS REQUIRED:

Star-headed

Screwdriver

Wire Cutters

PliersWrench

Wiring supplies

as required by

the Canadian

Electrical Code

and/or the

Quebec

Electrical code

QUESTIONS OR CONCERNS CONTACT CANARM AT:

1-800-265-1833 (English) 1-800-567-2513 (French)

Monday through Friday 8:00 AM to 5:00 PM E.S.T.

IPL318A03

01/16

SUSPENDED

TRACK LIGHTING

1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.

2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE

BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE

HAZARDS INVOLVED.

3. CONNECT THE GROUND WIRE (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND

WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL OUTLET BOX.

Bulb
