1. Confirm your frame has the correct diameter

seat tube for your new eeSilk

+

seatpost. eeSilk

+

seatposts are available in 27.2mm and 31.6mm

post diameter but Cane Creek offers several

seatpost adapters to accommodate larger size

seat tubes.

2. eeSilk

+

: Grease shim (if applicable) and

seatpost before installing into frame. DO NOT

lubricate seat tubes of carbon frames unless

specified by the manufacturer.

eeSilk

+

Carbon: Cane Creek recommends

using carbon fiber paste with the carbon post.

For carbon frames, ensure the carbon paste is

approved by the manufacturer.

3. Insert shim (if applicable) into the bicycle

frame with the split aligned with the split in

the seat-tube.

4. Install eeSilk

+

seatpost into the bicycle frame

to approximately the correct height using

the height indicators on the back of the post

and fasten the seatpost clamp to the frame

manufacturers specifications. Confirm the seatpost is installed so that

the minimum insertion line

is not exposed above the seat tube of the bicycle frame.

5. Loosen the two saddle clamp bolts until the threads are barely

engaging the Barrel Nut and the Spherical Nut. Be sure grease is

applied to the interface between the lower clamp and cradle.

6. Place one rail of the saddle in position between the upper and lower

clamps. Then rotate saddle so the other rail slips over the far edge

of the upper clamp and into position in the rail grooves of the lower

clamp. eeSilk

+

seatposts are designed to accommodate 7mm diameter

metal seat rails and 7mm by 9mm oval composite seal rails.

7. Begin to tighten the front and rear clamp bolts. The saddle tilt is

controlled by these two bolts. Check that the saddle tilt and position

of the saddle are correct before final tightening. The front bolt can

be adjusted by hand, a 4mm hex, or 17mm wrench on eeSilk

+

Carbon

or a 10mm wrench on eeSilk

+

. The rear bolt must be tightened to

44in*lb (5.0 N*m). The front bolt must receive an additional half turn of

preload once the rear bolt has been properly torqued.

8. Adjust saddle height if necessary.

355 Cane Creek Rd, Fletcher NC USA 28732

canecreek.com | 828-641-9560

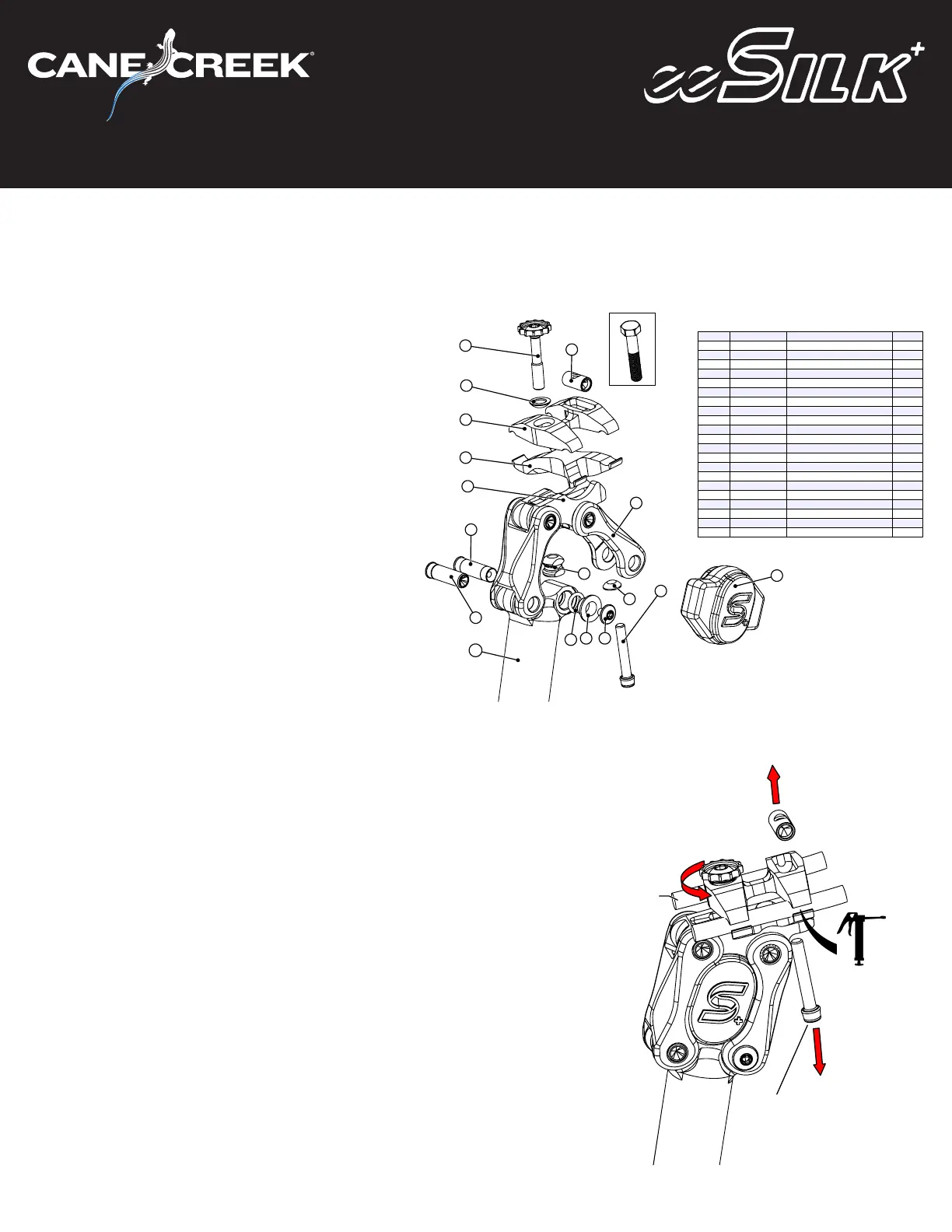

7

17

13

14

8

16

10

15

5

9-1

11

6

2

12

4

3

1

IDNumberQty

1AAE0096Ti

2AAE0135

3AAE0120

4AAE0089

5AAE0088

6AAE0280

7AAE0282

8AAE0281

9-1AAE0289

9-2AAE0286

9-3AAE0291

9-4AAE0290

10AAE0285

11AAE0300

12AAE0283SS

13AAE0097Ti

14AAE0090

15AAE0115

16AAE0313

17AAE0323

1*AAE0302

Description

M6 x 1 x 33 Thumb Bolt - Ti

Barrel Nut 15.5mm - SS

Spherical Washer M6

Upper Clamp

Lower Seat Clamp

Clamp Cradle

Removable Axle

Press Axle

Carbon Post - 27.2 x 350

Aluminum Post - 27.2 x 375

Carbon Post - 31.6 x 350

Aluminum Post - 31.6 x 375

O-ring 7.8x1.9 - NBR

Arm Bushing

Axle Bolt

M5 x 0.8 x 33 Bolt - Ti

Spherical Washer M5

Spherical Nut

Arm

Elastomer - Medium

M6 x 1 x 32 - 10mm Hex

1

1

1

1

1

1

1

3

1

1

1

1

4

8

1

1

1

1

2

1

1

1*

Saddle

Rails

4mm HEX

Loosen

Grease these

surfaces

if nessesary

Loosen or remove

Seatpost Installation Instructions
