1.Confirm your frame has the correct diameter

seat tube for your new eeSilk seatpost. eeSilk

seatposts are available in 27.2mm and 31.6mm

post diameter but Cane Creek offers several

shims to accommodate larger size seat tubes.

2.eeSilk: Grease shim (if applicable) and

seatpost before installing into frame. DO NOT

lubricate seat tubes of carbon frames unless

specified by the manufacturer.

eeSilk Carbon: Cane Creek recommends using

carbon fiber paste with the carbon post. For

carbon frames, ensure the carbon paste is

approved by the manufacturer.

3.Insert shim (if applicable) into the bicycle

frame with the split aligned with the split in

the seat-tube.

4.Install eeSilk seatpost into the bicycle frame

to approximately the correct height using

the height indicators on the back of the post

and fasten the seatpost clamp to the frame

manufacturers specifications. Confirm the

seatpost is installed so that the minimum insertion line is not exposed

above the seat tube of the bicycle frame.

5.Loosen the two saddle clamp bolts until the threads are barely

engaging the Barrel Nut and the Spherical Nut. Be sure grease is

applied to the interface between the lower clamp and cradle.

6.Place one rail of the saddle in position between the upper and lower

clamps. Then rotate saddle so the other rail slips over the far edge

of the upper clamp and into position in the rail grooves of the lower

clamp. eeSilk seatposts are designed to accommodate 7mm diameter

metal seat rails and 7mm by 9mm oval composite seal rails.

7.Begin to tighten the front and rear clamp bolts. The saddle tilt is

controlled by these two bolts. Check that the saddle tilt and position

of the saddle are correct before final tightening. The front bolt can be

adjusted by hand, a 4mm hex, or 17mm wrench on eeSilk Carbon or

a 10mm wrench on eeSilk. The rear bolt must be tightened to 44in*lb

(5.0 N*m). The front bolt must receive an additional half turn of

preload once the rear bolt has been properly torqued.

8.Adjust saddle height if necessary.

355 Cane Creek Rd, Fletcher NC USA 28732canecreek.com

7

18

14

15

8

13

10

17

9

11

16

12

5

6

2

4

3

1

1*

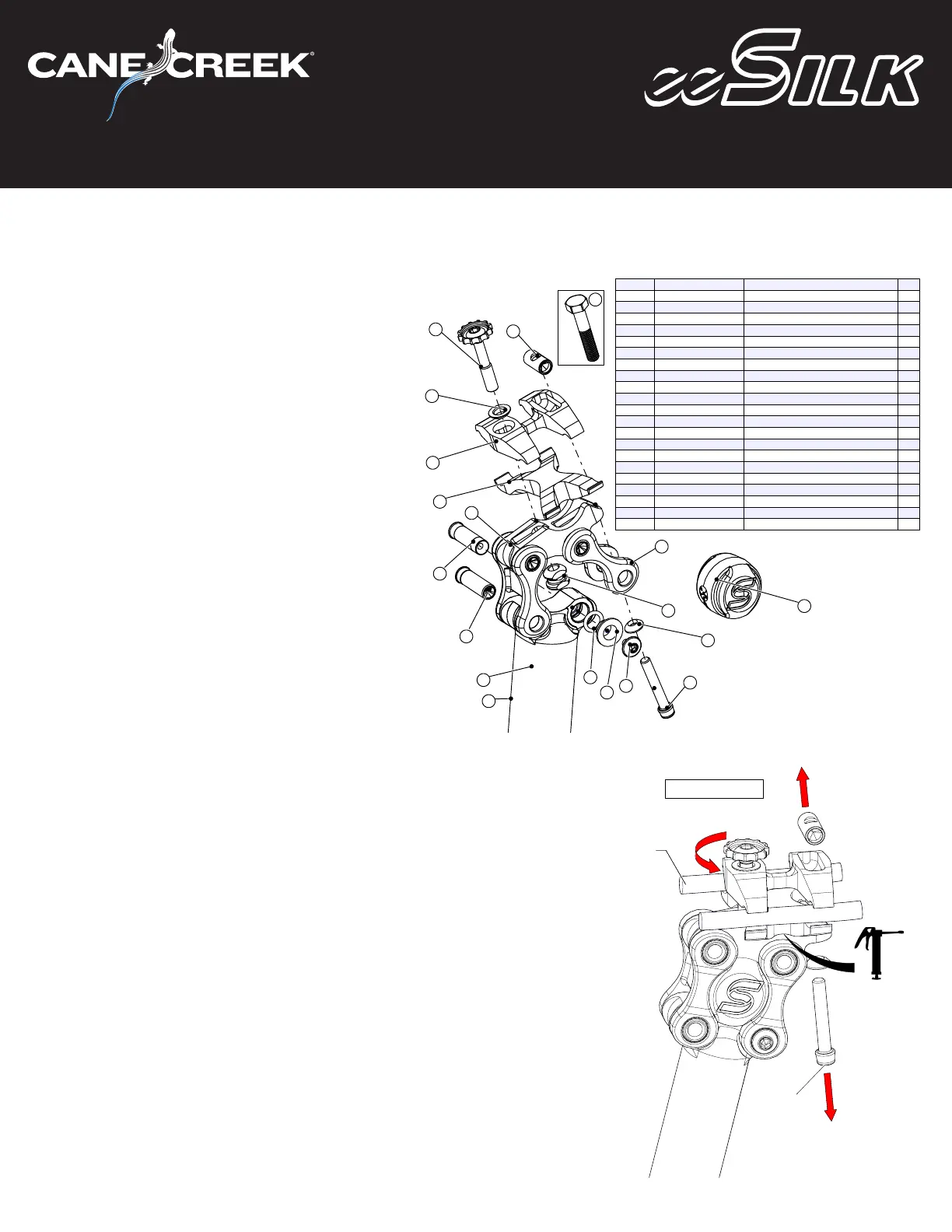

10AAE0291Carbon Post - 31.6 x 350

1AAE0096TiM6 x 1 x 33 Thumb Bolt - Ti1

9AAE0289Carbon Post - 27.2 x 350

BOM IDPart NumberDescriptionQty

11AAE0285O-ring 7.8x1.9 - NBR2

12AAE0300Arm Bushing4

13AAE0283Ti/SSAxle Bolt1

14AAE0097Ti/SSM5 x 0.8 x 33 Bolt1

15AAE0090Spherical Washer M51

16AAE0115Spherical Nut1

17AAE0278Arm2

18AAE0100Elastomer #5 (Medium)1

10AAE0290Aluminum Post - 31.6 x 3751

2AAE0135Barrel Nut 15.5mm SS1

3AAE0120Spherical Washer M61

4AAE0089Upper Clamp1

5AAE0088Lower Seat Clamp1

6AAE0280Clamp Cradle1

7AAE0282Removable Axle1

8AAE0281Press Axle3

9AAE0286Aluminum Post - 27.2 x 3751

1

1

1*AAE0302

M6 x 1 x 32 Clamp Bolt (10mm)

1

Saddle

Rails

Saddle

Rails

Grease these

surfaces

Loosen

4mm HEX

Installing saddle

Loosen or remove

if nessesary

Seatpost Initial Installation Instructions
