EGSS-BS

Mini slide unit

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com

Operating instruction

8199414

2023-11e

[8199416]

8199414

Translation of the original instructions

© 2023 all rights reserved to Festo SE & Co. KG

IO-Link is a registered trademark of its respective trademark holder in certain

countries.

1

Applicable documents

All available documents for the product

è

www.festo.com/sp.

DocumentProduct

Operating instructionIntegrated drive EMCS-ST

Operating instructionMini slide EGSC

Assembly instructionsAxial kit EAMM-A

Assembly instructionsParallel kit EAMM-U

Assembly instructionsAdapter NEFC-M12G8-0.3-M12G5-LK

Tab. 1:

Applicable documents for the product

2Product version

This documentation refers to the following datasets:

–

Hardware version of the integrated drive up to "Rev02" or "RevB"

–Firmware version of the integrated drive from "v19.0.4.107_release"

–

IO-Link device description file (IODD) from V1.2.6

–Adapter NEFC from production date 01/2022

When using a different firmware version, check whether a corresponding version

of the documentation is available

è

www.festo.com/sp.

3

Safety

3.1

Safety instructions

–Observe the identifications on the product.

–

Before working on the product, switch off the power supply and secure it

against being switched on again.

–

Store the product in a cool, dry environment protected from UV and corrosion.

Keep storage times short.

–Observe the tightening torques. Unless otherwise specified, the tolerance is

±20%.

3.2

Intended use

The mini slide unit EGSS positions payloads between two end positions.

The mini slide unit EGSS is approved for slide operation.

Fig. 1:

Slide operation

3.3Training of qualified personnel

Work on the product may only be carried out by qualified personnel who can

evaluate the work and detect dangers. The qualified personnel have knowledge

and experience in dealing with electric drive systems.

4Additional information

–Contact the regional Festo contact if you have technical problems

è

www.festo.com.

–Accessories and spare parts

è

www.festo.com/catalogue.

5Product overview

5.1Scope of delivery

The following components are included in the scope of delivery:

–Mini slide unit EGSS

–Operating instructions for mini slide unit EGSS

–Adapter for IO-Link operation (optional accessory)

è

www.festo.com/catalogue

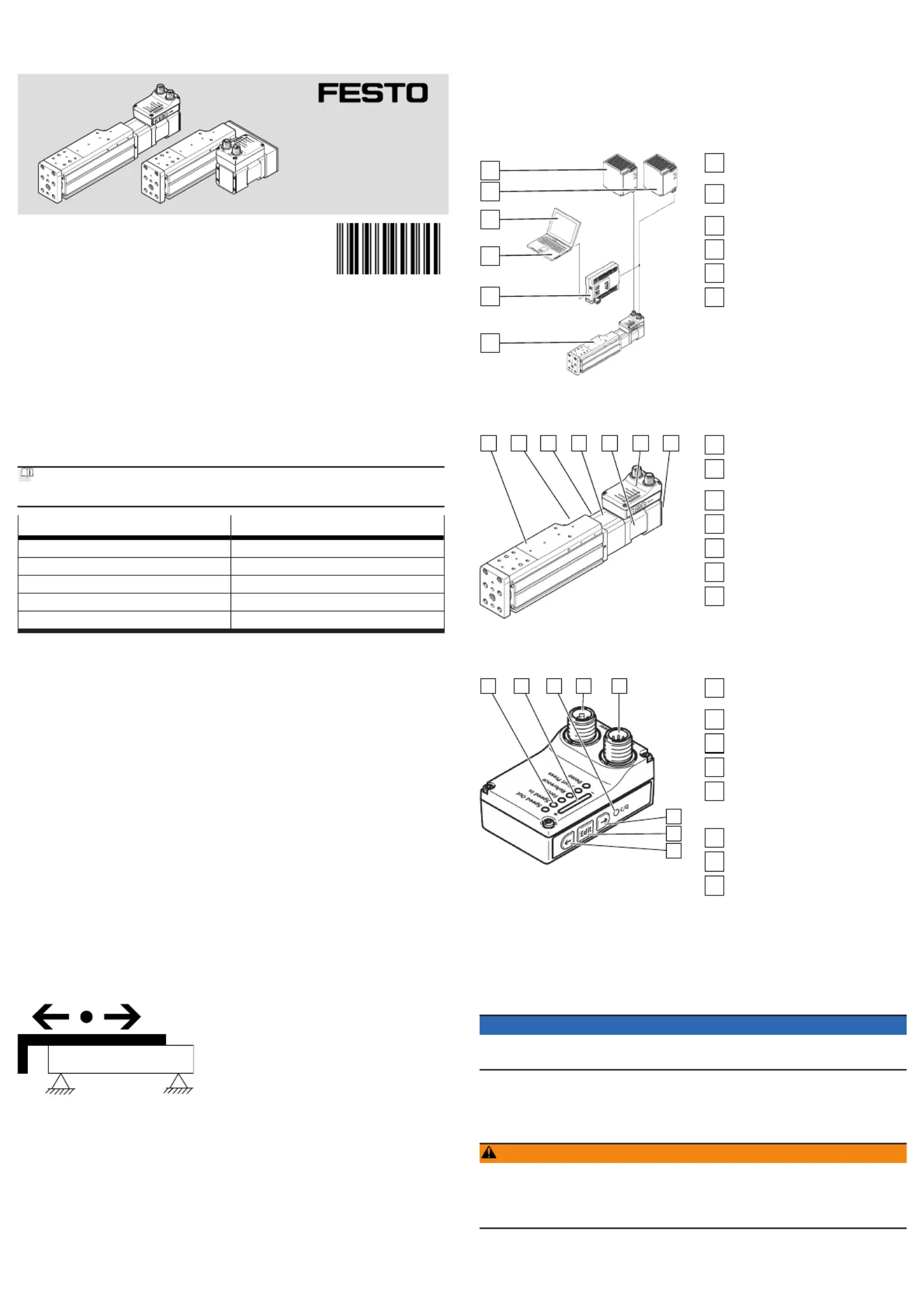

5.2

System overview

1

2

3

4

5

6

Fig. 2:System overview EGSS-BS,

example with axial kit

1

PELV fixed power supply for load

voltage

2

PELV fixed power supply for logic

voltage

3

Application software

4

PC or laptop

5

Controller or IO-Link master

6

Mini slide unit EGSS-BS

5.2.1Product design

1234567

Fig. 3:

Product design EGSS-BS,

example with axial kit

1

Mini slide EGSC-BS

2

Sealing air connection with filter

element

3

Axial kit EAMM-A

4

Product labelling

5

Integrated drive EMCS-ST

6

Controller housing

7

Warning symbol "Attention! Hot

surface"

Electrical connections, display elements and HMI control elements

12345

6

7

8

Fig. 4:

Electrical connections, display

elements and HMI control

elements

1

LED display menu (Speed Out, ...,

Demo)

2

LED parameter display

3

LED C/Q

4

Load voltage connection [Power]

5

Logic voltage connection and dig-

ital I/O or IO-Link connections

[Logic]

6

Pushbutton actuator (right arrow)

7

Pushbutton actuator (Edit)

8

Pushbutton actuator (left arrow)

5.3Function

The mini slide unit converts the rotary motion of the mounted motor into a linear

motion of the slide. The screw drive converts the torque of the motor into a feed

force. The linear movement of the slide is precisely guided by the guide.

6

Transport

NOTICE

Unexpected and unbraked movement of components

•Secure moving components for transport.

1.Take product weight into account

è

14 Technical data.

2.Maintain support clearance300mm when attaching transportation aids.£

7

Mounting

WARNING

Risk of injury due to unexpected movement of components.

The drive can move freely in the voltage-free state. This can cause unexpected

movements of the connected mechanics and crush parts of the body.

•

Bring moving parts of the mechanical system into a safe position.

•

Mounting product Operating instructions for mini slide EGSC.è
