EMMB-AS

Servo motor

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Deutschland

+49 711 347-0

www.festo.com

Operating instructions

8163182

2021-08b

[8163184]

Translation of the original instructions

© 2021 all rights reserved to Festo SE & Co. KG

1

About this document

1.1Applicable Documents

All available documents for the product

è

www.festo.com/sp.

1.2Product version

This documentation describes the following product versions:

EMMB-AS-...-K-...S/M/BProduct version

Kwith featherkey

SAbsolute encoder, single-turn

MAbsolute encoder, multi-turn

Bwith holding brake

Tab. 1:

Product version

2Safety

2.1Safety instructions

–Observe labelling on the product.

–

Before working on the product, switch off the power supply and secure it

against being switched on again.

–Store the product in a cool, dry environment protected from UV and corrosion.

Keep storage times short.

–Observe tightening torques. Unless otherwise specified, the tolerance is

± 20 %.

–

Store the product in ambient conditions without oils, greases and grease-dis-

solving vapours.

2.2Intended use

The motor is intended to be used as a component in drive systems in accordance

with EN 61800 and may only be operated in combination with a suitable servo

drive.

2.3Foreseeable misuse

The holding brake must not be used for braking the motor.

2.4Training of qualified personnel

Work on the product may only be carried out by qualified personnel who can

evaluate the work and detect dangers.

The qualified personnel must be familiar with the assembly and installation of

electric drive systems.

2.5Area of application and approval

In combination with the UL inspection mark on the product, the information in this

section must also be observed in order to comply with the certification conditions

of Underwriters Laboratories Inc. (UL) for USA and Canada.

UL certification information

Product category codePRHZ2 (USA) or PRHZ8 (Canada)

File numberE342973

Considered standardsUL 1004-1/-6, C22.2 No.100

UL mark

Tab. 2:

UL/CSA certification information

3

Additional Information

–Accessories

è

www.festo.com/catalogue.

4Product overview

4.1Function

The product is a permanently excited, electrodynamic, brushless servo motor. The

integrated absolute encoder serves to record the angular position and derives the

angular velocity signals and other status variables. These signals are evaluated

by a higher-order servo drive. The de-energised holding brake enables the motor

shaft to be held at a standstill.

4.2Product design

123456

7891011

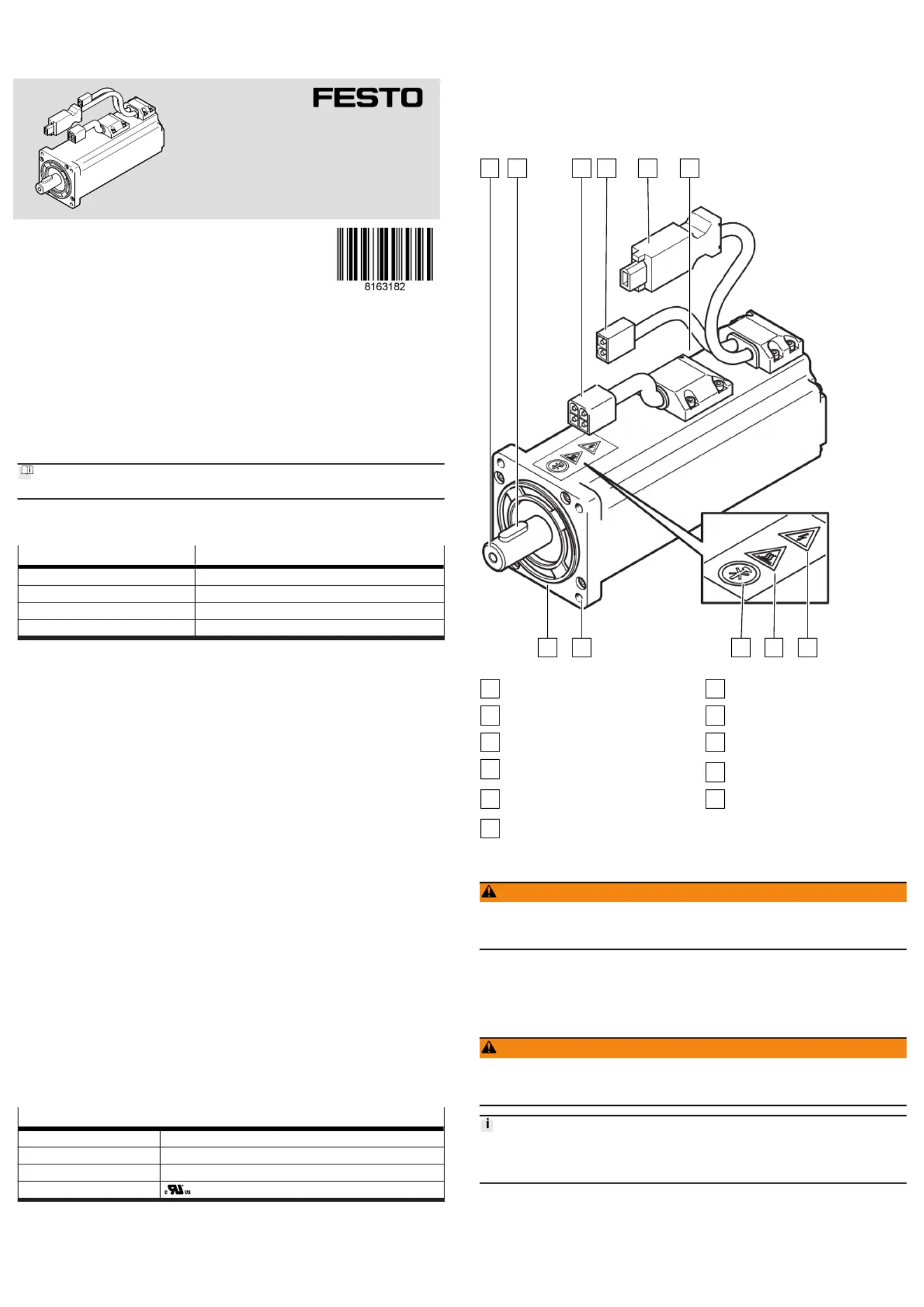

Fig. 1:Product design EMMB-AS (example EMMB-AS-60-04-K-S30MB)

1

Motor shaft

2

Featherkey

3

Electrical connection: motor

4

Electrical connection: holding

brake

5

Electrical connection: absolute

encoder

6

Product labelling

7

Motor flange

8

Through-hole for mounting

9

Note: mechanical impacts not

permitted

10

Warning: hot surface

11

Warning: dangerous electrical

voltage

5

Transport

WARNING

Risk of injury due to falling product

If the product is lifted incorrectly, it may fall and cut, crush or separate body parts.

•Lift the product only with suitable load-bearing equipment.

–Store and transport the product in its original packaging. Observe the weight,

the dimensions and the ambient conditions.

–Store and transport the product in a horizontal position.

6Assembly

WARNING

Risk of injury due to unexpected movement of components.

•Bring moving parts of the connected mechanical system into a secure position

(e.g. move into the lower end position).

Axial and radial forces on the motor shaft.

Excessive axial and radial forces on the motor shaft can damage the motor.

•Comply with maximum permissible shaft loads

è

www.festo.com/catalogue.

6.1Unpacking product

1.

Open packaging.

2.Remove all transport materials, e.g. foils, caps, cardboard boxes.

3.

Remove the product from the packaging and place it on the mounting surface.

4.Dispose of packaging and transport materials.
