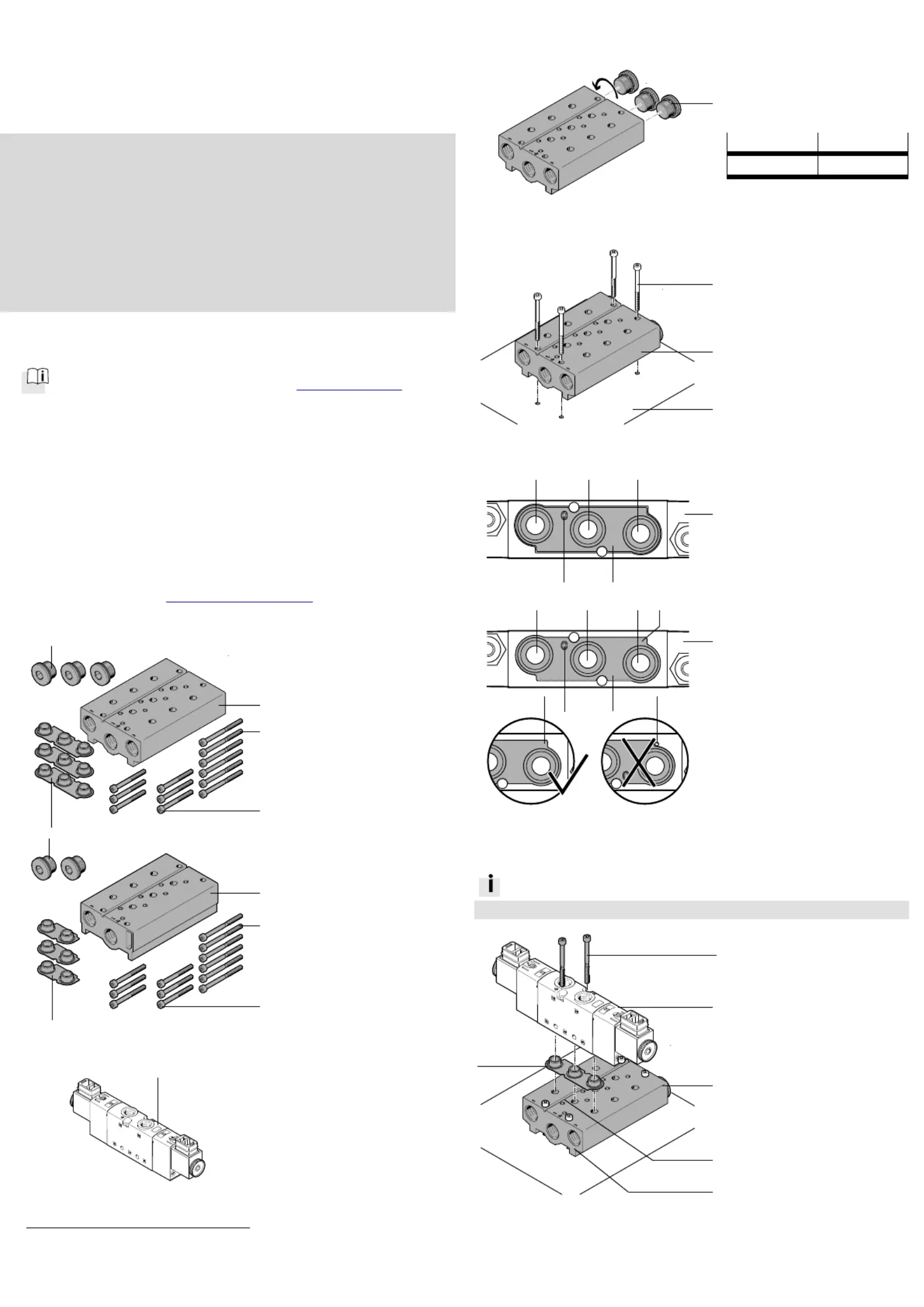

Assembly instructions (Original instructions)

8067317

1701b

[8067319]

†‡

Connection block

VABM-B10-25S

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com

1.Applicable documents

All available documents for the product www.f

esto.com/pk

2.Safety

Switch off compressed air before mounting work.

Observe tigh

tening torques.

3.Intended use

Pneumatic linking of the valves.

4.Further info

rmation

Accessories for VABM www.fes

to.com/catalogue

5.Scope of delivery

20518d_3

VABM-B10-25S-...

1Connection block

2Screw M4x50

1)2)

3Screw M4x40

1)2)

4Seal

1)

5Blanking plug B-3/8

(1x)

(nx)

(nx)

(nx)

(3x)

20518d_4

VABM-B10-25S-...-P3

1Connection block

2Screw M4x50

1)2)

3Screw M4x40

1)2)

4Seal

1)

5Blanking plug B-3/8

(1x)

(nx)

(nx)

(nx)

(2x)

6.Not in scope of delivery

20520d_3

6Solenoid valve

VUVS-... or

pneumatic valve

VUWS-...

1)

(nx)

1)

The number of screws , seals 23/4 and valves 6 is dependent on the available valve

positions.

2)

Number = 2 x available valve positions

7.Mounting of blanking plugs 5

5

5

55

20518d_8

Screw in the blanking

plugs 5 at the desired

position, as required.

Blanking plug [Nm]

58.5 ± 15 %

8.Mounting of connection bl

ock 1

1

1

11

20518d_9

Place connection block 1

on mounting surface (A).

Tighten screws (B).

9.Alignment of seal 4

4

4

44

20518d_11

For valves VUVS-L/LT...:

Place the seal 4 in the

depression of the valve 6

so it is positive-locking.

Observe channel

designation 1/3/5 or 1/3.

20518d_12

For valves VUVS-LK...-S:

Place seal 4 on the

valve 6. Observe channel

designation 1/3/5 or 1/3.

Indexing hole (X) on the

valve 6 is:

–only relevant for the

connection block

VABM-B10-25S-...

–hidden according to the

alignment of the seal 4.

10.Mounting of valve 6

6

6

66

Information

Screws 3 can only be mounted with solenoid valves 6 VUVS-LK…-S.

20518d_10

/Push screws 23 into the

drill holes of the valve 6.

Only screws 2 are

loss-protected.

Position valve 6 on the

connection block 1.

Check:

–Projection (C) is in the

slot (D)

–Valve 6 is aligned parallel

to the surface (E)

–Channel designations 1/3/5

or 1/3 agree with each

other.

Tighten screws 23/.

6

3 Nm _ 20 %

2

/

3

1

1

5

2

4

5

A

B

6

4

D

1

E

5

6

4

C

315

6

4

C

315

X

3

1

2

3

4

X

X
