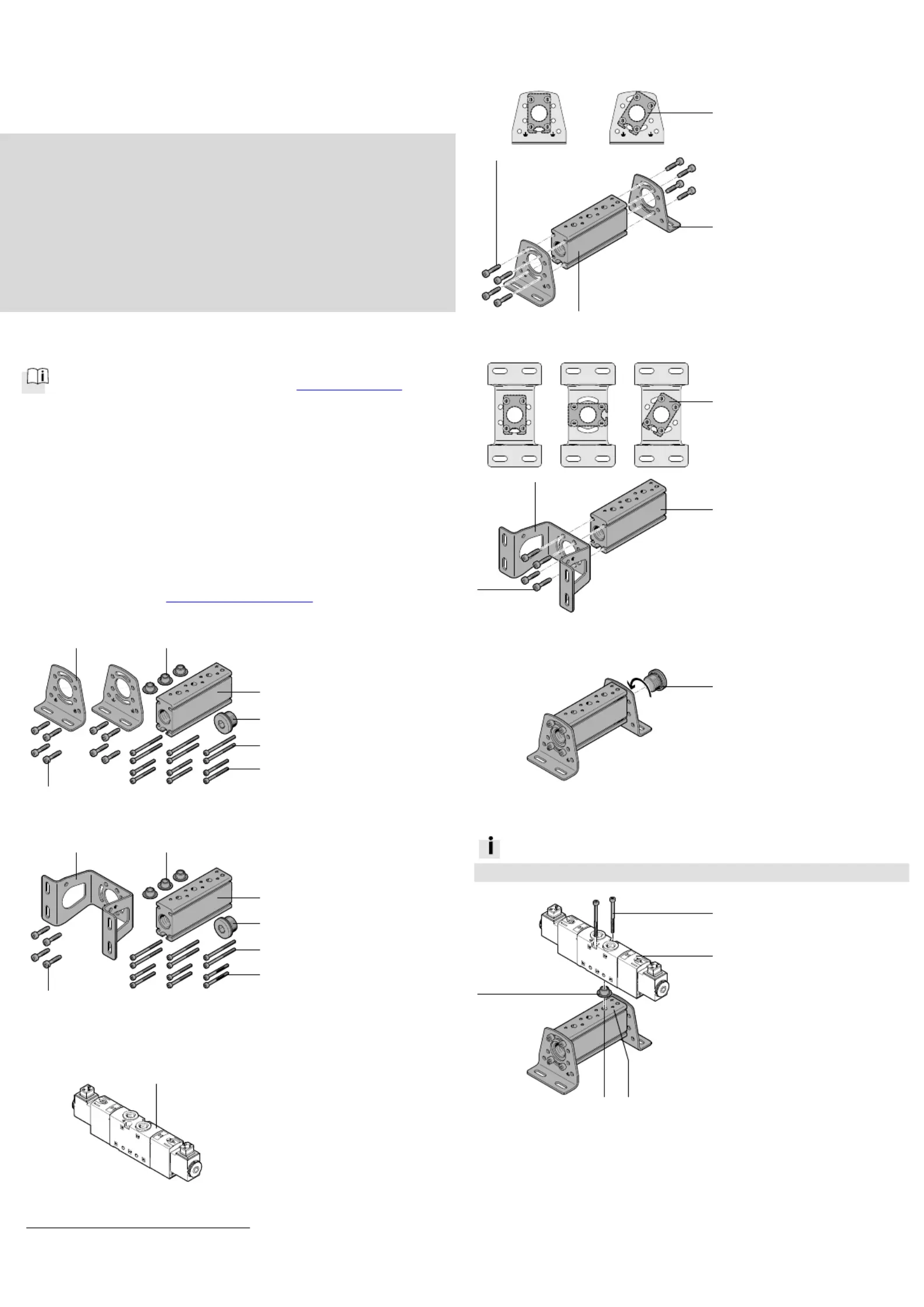

Assembly instructions (Original instructions)

8067341

1701c

[8067343]

†‡

Common supply manifold

VABM-B10-20-...-P53

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com

1.Applicable documents

All available documents for the product www.f

esto.com/pk

2.Safety

Switch off compressed air before mounting work.

Observe tigh

tening torques.

3.Intended use

Pneumatic linking of the valves.

4.Further info

rmation

Accessories for VABM www.fes

to.com/catalogue

5.Scope of delivery

20260d_1

VABM-B10-20-...-P53

1Common supply

manifold

2Blanking plug B-3/8

3Screw M3x40

1)2)

4Screw M3x30

1)2)

5Screw M4

(thread-cutting)

6Mounting bracket

7Seal

1)

(1x)

(1x)

(nx)

(nx)

(8x)

(2x)

(nx)

20260d_2

VABM-B10-20-...-P53-E

1Common supply

manifold

2Blanking plug B-3/8

3Screw M3x40

1)2)

4Screw M3x30

1)2)

5Screw M4

(thread-cutting)

6Mounting bracket

7Seal

1)

(1x)

(1x)

(nx)

(nx)

(4x)

(1x)

(nx)

6.Not in scope of delivery

20260d_3

8Solenoid valve

VUVS-... or

pneumatic valve

VUWS-...

1)

(nx)

1)

The number of screws , seals 34/7 and valves 8 is dependent on the available valve

positions.

2)

Number = 2 x available valve positions

7.Mounting the mounting bracket 6

6

6

66

7a.VABM-B10-20-...-P53

20260d_4

Define alignment of

the common supply

manifold 1.

20260d_7

Place both mounting

brackets 6 on the common

supply manifold 1.

Tighten all screws 5. If you

screw it in again, use the

threads already present.

7b.VABM-B10-20-...-P53-E

20260d_5

Define alignment of

the common supply

manifold 1.

20260d_8

Place the mounting

bracket 6 on the common

supply manifold 1.

Tighten all screws 5. If you

screw it in again, use the

threads already present.

8.Mounting of blanking plugs 2

2

2

22

2026

0d_6

Screw the blanking plug 2

in at the desired position,

as required.

9.Mounting of valve 8

8

8

88

Information

Screws 4 can only be mounted with solenoid valves 8 VUVS-LK…-S.

20260d_9

/Push screws 34 into the

drill holes of the valve 8.

Only screws 3 are

loss-protected.

Push seal 7 into channel 1

of the valve 8. Rotating

movement required during

mounting.

Place channel 1 of the

valve 8 onto the

opening (A).

Position the valve 8 on

the threads (B).

Tighten screws 34/.

1

1

2

2

5

5

7

7

6

6

8

3 Nm _ 20 %

3 Nm _ 20 %

1.4 Nm _ 20 %

3

/

4

6

5

1

1

5

6

8

7

AB

1

1

2

8.5 Nm

_ 15 %

3

4

3

4
