Operation Manual

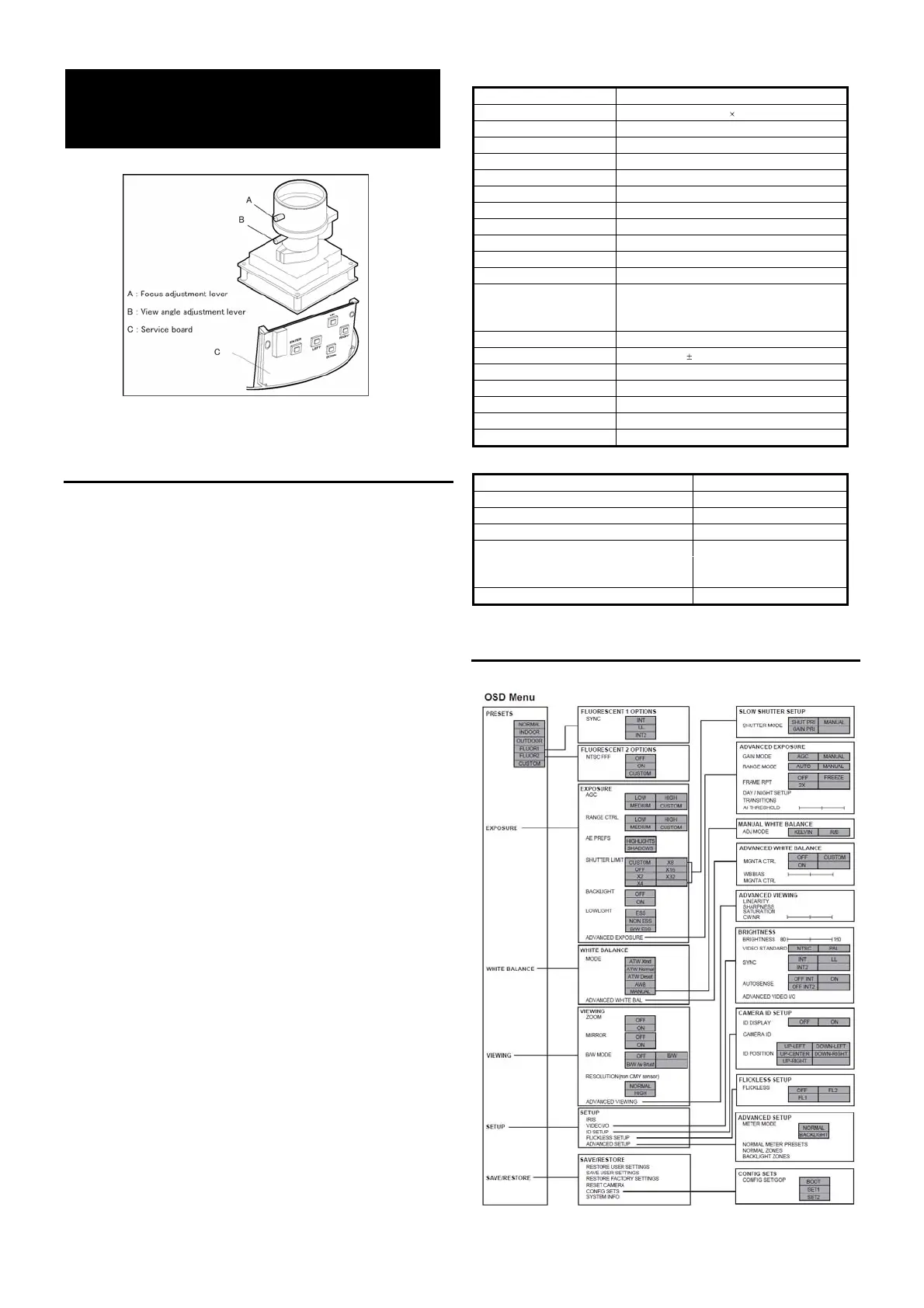

Camera Adjustments
Camera Adjustment and Programming
With the exception of the focus and field of view adjustments (made using levers A and B), all
settings for the ZC-DWT4312 camera are made using its onscreen menu display. A functioning
video monitor and a separate plug-in service board (C) are required to view and select
options.
Menu Description
PRESETS
These are "factory-set" general configurations. Select from the preconfigured camera modes
for the best performance in the specified environment. Pressing the ENTER key on the
selected option will display the pre-configured set-up parameters.
NORMAL - This should provide the most versatile settings for general purpose applications.
INDOOR or OUTDOOR - These settings are optimized for indoor/outdoor lighting conditions.
FLUOR1 - Line lock recommended.
INT 1 - Internally generated sync.
LL - Line lock - sync is locked to the AC supply cycle and permits adjustment of V-phase to
correct vertical sync picture roll. (Applicable for 24 V AC supply only. If a 12 V DC power
supply is used, then the camera will run in INT1 or INT2.)
INT 2 - Internal flickerless - Internally generated sync that can
reduce flick
er under florescent
lighting.
FLUOR2 - DC IRIS recommended.
EXPOSURE
EXPOSE MODE has 4 Exposure modes for selection. Each Exposure mode uses the
electronic shutter differently and is suitable for a specific environment.
AGC - Automatic gain control - When low light priority is set to gain, gain increases as light
decreases up to the maximum set using gain limit. No color artifacts are visible nor does the
dynamic range decrease as gain increases.
WDR RANGE CTRL - Use WDR control, electronic shutter c
ontrol, mechan
ical iris control,
and the low brightness zone controls selected in LOW Lux MODE to automatically control the
exposure time. Seamless switching between control zones delivers shockless AE.
**Requires a separate mechanical lens.
AE PREFs - Automatically optimizes the scene for highlights or for shadows.
SHUTTER LIMIT - Limits the shutter value.
WHITE BALANCE
WHITE BALANCE has 4 modes for selection. Each mode uses the electronic shutter
differently and is suitable for a specific environment.
ATW Xtnd - Extended auto white
balance range - use this setting for scenes that may have an
extremely wide range of color temperatures.
ATW Normal - Selects a normal auto white balance range for general operation. If necessary,
the range is configurable with low limit (to help with reds) and high limit (to help with blues)
adjustments.
AWB - Save or cancel AWB and all changes.
MANUAL - Allows manual setting of the image's color temperature. This can be achieved by
using the Kelvin option, by the method familiar to the installer. This setting is al
so good
for
static environment applications where the lighting conditions never change, such as in indoor
hallways.
VIEWING
MIRROR - This mode reverses the top and bottom sides of the linear.
GAMMA MODE - Select appropriate gamma mode for type of display. Gamma correction
compensates for a non linear grayscale in a display device or to create non-standard
luminance.
MANUAL - Manual Gamma may be used to enhance detail in low light areas of an image
which would normally not be visible with highlights present in the image.
SHARPNESS - Adjusts
o
verall image sharpness.
SATURATION - Adjusts overall color content of the image.
SETUP
IRIS- DC GAIN - Adjusts the iris control gain when using a DC iris.
AI THRESH - Adjusts the threshold at which the automatic iris becomes active.
DAY/NIGHT SETUP - Day/Night operation. This feature may be used to improve low light
performance by reducing noise from the video signal or force the camera into night mode
regardless of lighting conditions.
SAVE/RESTORE
RESTORE USER SETTINGS - This will undo any changes made since the last time the
settings were saved.
SAVE USER SETTINGS - Save any programming changes to ensure they are retained after
power loss or reset. If changes are not saved, the camera will revert to the previous settings
on power-up.
RESTORE FACTORY SETTINGS - Restore camera settings to factory default - full reset, all
previous programming will be lost including the video standard, which will default to NTSC.
RESET CAMERA - This is a soft reset and has the same effect as cycling the camera power.
SYSTEM INFO - Displays the camera firmware version.
ZC-DWT4312NHA/PHA Specifications
rosneSmixiPtnemelEerutciPegamI
)H(027tnemelEerutciPevitceff )V(045E
025)senilVT(noituloseR
noitanimullImuminiM
Bd24>oitaRN/S
tib71/Bd021egnaRcimanyDediW
Wide Dynamic Range Area 1 Zone - Fully Adjustable
x23xam,x2tluafeDrettuhSwolS
000001/1~06/1ro05/1rettuhScinortcelE
ffO/nO/otuANDSthgiN/yaD
hcuoT-1,BWM,WTAecnalaBetihW
Auto White Balance Range 2200°K ~ 7500°K, 2000°K ~ 11000°K
kcoLeniL/lanretnImetsyScnyS
CSTNrofzH4.26-zH75
LAPr
ofzH25-zH5.74
decnalabnUmho57,ppV0.1tuptuOoediV
Power
Range AC: 24 V AC 20% or DC: 12 V DC -10% +20%
noitpmusnoCrewoP
C°05+otC°01-erutarepmeTgnitarepO
C°06+otC°53-erutarepmeTegarotS
(041noisnemiDlanretxE
φ
)mm x 100(H)mm
g006thgieW
Lens Specifications
ZC-DWT4312NHA/PHA Menu Map
Press the ENTER button on the control panel for three seconds to view the menu.
htgneLlacoF
.oN-F
egnaRsirI
m5.0ecnatsiDtcejbOmuminiM
Angle Of View Diagonal 125.7°~29.9°
latnoziroH
lacitreV
epyTsneL
3.3~12 mm
F1.4
F1.4~F360
89.8°~23.9°
63.6°~17.9°
Aspherical
4.2W
1.7 lx @ F1.4
English
