Assembly Instructions: 1821-9
IMPORTANT:
•ALL INSTALLATION WORK SHOULD BE DONE BY ACCREDITED PROFESSIONAL.
•SHUT OFF POWER SUPPLY AT FUSE OR CIRCUIT BREAKER!
•USE ONLY THE SPECIFIED BULBS. DO NOT EXCEED THE MAXIMUM WATTAGE!
CLEANING TIPS
Treat the xture gently! Regular cleaning will reduce the need for deep cleaning. For regular cleaning, turn off the light and wipe
down the xture with a clean lint-free cotton or microber cloth. Never spray cleaner directly onto the xture.
For Customer Service, please
contact the place of purchase.
PREPARING FOR INSTALLATION
Remove all of the contents from the carton. See the important notes
above. Shut off the power at the circuit breaker and completely
remove the old xture from the ceiling, including the old mounting
strap.
1. Take the mounting strap assembly from the parts bag. One end of the
nipple (C) should be attached to mounting strap (A) with a washer and
hex nut. The other end should have canopy loop (F) attached.
2. Use a screwdriver and mounting screws (B) to attach mounting strap
(A) to the junction box. About half of the exterior threads of nipple (C)
shouldbeexposed,allowingthecanopyloop(F)totsnuglyontonipple
(C).Testtoensurethatwithcanopy(D)inplace,canopyloop(F)tsonto
nipple (C).
3. Remove the canopy and set aside for later. Pull house wires through
the center of the mounting strap (A).
House Wires
Fixture Wires
Hot
How to Identify the Fixture’s Wires
HotNeutralGround
Smooth
Ribbed
Bare Metal,
Green, or
Green Inner
Thread
Black
White
Black Inner
Thread
White Inner
Thread
CONNECTING THE WIRES
5.Haveanassistantsupporttheweightofthexturewhilecompleting
the wiring. Cut away any excess wire while leaving a 8 to 10 inches
ofwireforinstallation.Attachthexture’swirestothehousewires
which were pulled earlier from the junction box through the mounting
strap (A). Connect black to black (transparent wire with black inner
thread or smooth); white to white (transparent wire with white inner
thread or ribbed); ground to ground (green, transparent wire with green
inner thread, or copper). Twist the ends of the wire pairs together, and
then twist on a wire connector. Make sure all twists are in the same
direction. If there is no ground wire (green or copper) coming from the
junction box, locate ground screw (E) on the mounting strap and wrap
thexture’sgroundwirearoundthegreengroundscrew(E).Usea
screwdriver to secure ground screw (E) onto the mounting bracket. Tuck
all wires neatly into the junction box.
FINISHING THE INSTALLATION
6. Attach one end of each decorative chains (J) to the hooks found on the bottom of the top loop (H).
7. Push canopy (D) up to the ceiling and slide canopy loop collar (I) up beneath the canopy. Tightly thread canopy loop collar (I) onto
canopy loop (F) to secure canopy (D) in place.
Installlightbulbs(notincluded)intosockets(K)inaccordancewiththexture’sspecications.Donotexceedmaximum
recommended wattage.
Yourinstallationisnowcomplete.Turnonthepowerandtestthexture.
ASSEMBLING THE FIXTURE
4. Measure to determine the number of chains needed for proper hanging
height. If necessary use a chain opener to remove excess chain. Attach
one chain connector (G) to each end of the chain. Attach one end of the
chain with chain connector to the top loop (H). Attach the remaining chain
with chain connector to the canopy loop (F). Close the chain connectors
(G)tosecure.Feedxturewiresthroughthetoploop(H)andupthechain
(every three links or so). Feed the remaining wires through the canopy
loop (F) and canopy (D). Pull the wires until taut. Slide the canopy (D) and
canopy loop collar (I) down the chain for now.

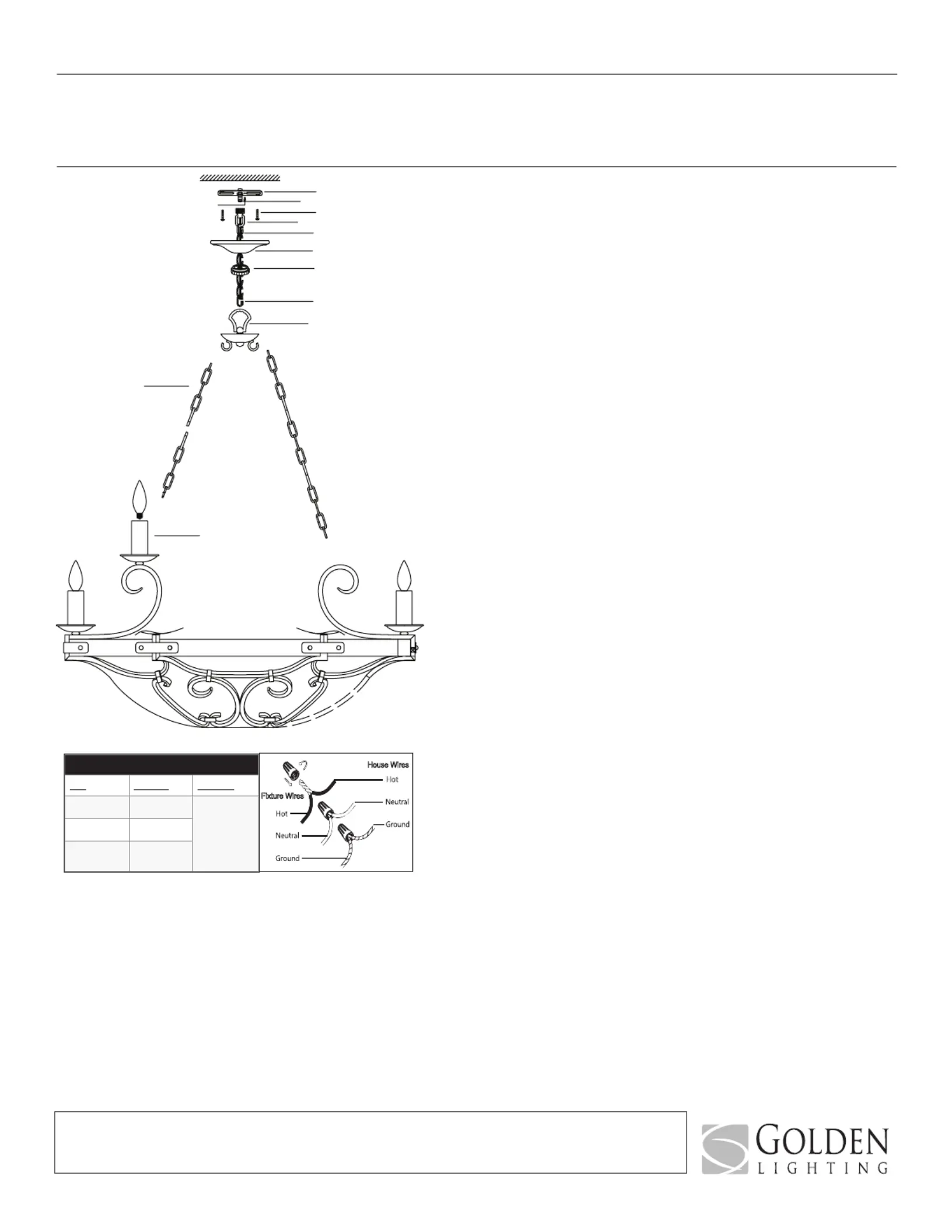

J
A
C
B
F
G
D
E
G
H
I
K
