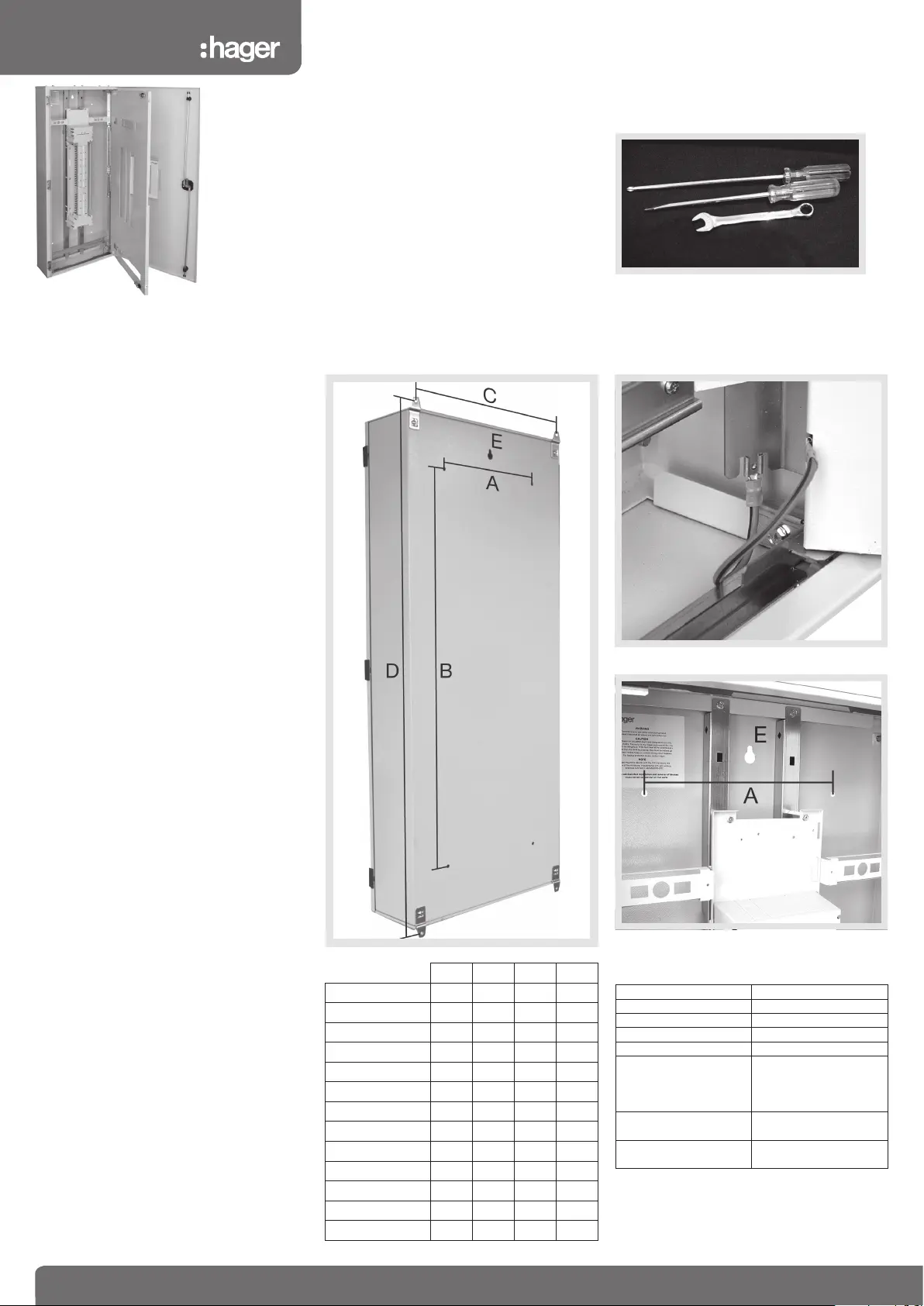

User Instructions

Tools needed

16A XXXX.a

6AA XXXXX.a

6A XXXX.a

performa 2

apex & apex PLUS

Panelboard

#2 Phillips head screwdriver

Flat Blade screwdriver

8mm & 13mm spanner

Earth wire fitted

Earth and Neutral links

E = Central keyhole fixing point

Board mounting

Dimensions

ABCD

apex 24 pole 350500560820

apex 36 pole3507005601020

apex 48 pole3509005601020

apex 60 pole3509005601220

apex 72 pole35011005601220

apex 96 pole35013005601420

apex + 24 pole3507005601020

apex + 36 pole3509005601220

apex + 48 pole3509005601220

apex + 60 pole35011005601420

apex + 72 pole35011005601420

apex + 96 pole35013005601620

apex extension350150560420

Note: Only registered Electrical

Contractors are to do any

installation to panelboards

The electrical contractor is to ensure

that the panelboard meets site specific

requirements. Final installation is to

meet all rules as described in

AS/NZS 3000:2007.

Switchboard Mounting

The electrical contractor must

ensure that the support structure

or wall is adequate to support

the weight of the panelboard.

All cables entering or exiting

the switchboard are to be via a

gland or sealed as required.

All panelboards have lockable doors

suitable for restricted areas as per

AS/NZS 3439.3:2002.

Switchgear mounting in Panelboard

The electrical contractor is to ascertain

that all installed devices are suitable

to meet the appropriate fault

current ratings required.

The chassis on this panel board

is suitable for Hager 10kA type

of MCBs and RCBOs and was

designed to suit only Hager MCBs.

Hager’s recommends fitting only

Hager approved switchgear otherwise

this may void warranty. If the fault level

at the switchboard is greater than the

MCB fault rating, they must be backed

up by current limiting fuses or current

limiting circuit breakers. For backup

protection levels refer to Hager.

Devices are to be mounted

with the DIN clip toward the

centre of the enclosure.

Transportation may cause

terminations, mechanical supports

and other connections to become

loose. The electrical contractor is

to ensure all these connections are

tightened prior to any energisation.

Final overview prior to Energisation

Review alignment of all devices

and ensure there has been no

damage during final terminations.

The panelboard is to be cleaned

and vacuumed from filings and

other foreign objects after final

terminations are completed.

Neutral barsIntegrated neutral bars

Neutral bar size (mm)12x9

Split neutralAs standard

Earth barsEarth bars both sides

Earth bar size (mm)12x9

Earth and neutral

bar tunnels

Single screw tunnel

Ø7mm (up to 25mm²

cable) solid and

stranded conductors

1

Earth and neutral

bar connection

Single stud (M6

= 2.5Nm)

Earth and neutral

bar rating

250A

1 Copper strands must be firmly twisted together using

a tool i.e. pliers.
