1

Heating actuator

6-gang RMD

Heizungsaktor 6f REG

z

e

TYF656T

6LE000480A 82590306

6LE000480A

Safety instructions

• Electrical equipment may only be installed and

tted by electrically skilled persons.

• Serious injuries, re or property damage

possible. Please read and follow manual fully.

• Danger of electric shock. Always disconnect

before carrying out work on the devise or load.

At the same time, take into account all circuit

breakers that supply dangerous voltage to the

device or load.

• Danger of electric shock. Device is not suitable

for disconnection from supply voltage.

The load is not electrically isolated from the

mains even when the device is switched off.

• These instructions are an integral part of

the product, and must remain with the end

customer.

(6) A1...A6: Status LEDs for outputs

]1-3, ]4-6: Display "Overload/short-circuit" for

output group

(8) Button � – Manual operation

(9) LED � – On: Continuous manual mode active

(10) OPEN button – Open valve

(11) LED OPEN– On: Valve opened, manual

operation

(12) CLOSE button – Close valve

(13) LED CLOSE– On: Valve closed, manual

operation

(14) ALL OP / CL button – Central operating

function for all outputs: Open and close all

valve alternatively

Status display and output behaviour

The Status LEDs A1...A6(6) show whether the

current ow is switch on or switched off at the

appropriate output. The connected heating or

cooling valves open and close according to their

characteristics.

Valve driveLED onLED off

Deenergised

closed

Heating/

cooling

Valve opened

Off

Valve closed

Deenergised

opened

Off

Valve closed

Heating/

cooling

Valve opened

- LED ashes slowly: Output in manual mode

- LED ashes quickly: Output disabled via

continuous manual mode

Operating modes

-

Bus operation: Operation via push-button sensors

or other bus devices

- Short-term manual operation: Manual operation

locally with button eld, automatic return to bus

operation.

- Continuous manual mode: Exclusively manual

operation on the device

No bus operation is possible in manual mode.

No manual mode is possible in case of bus

failure.

The behaviour after bus failure and return can

be set.

The manual mode can be disabled in ongoing

operation via a bus telegram.

Switching on the temporary manual control

Operation using the button eld is programmed

and not disabled.

• Press the � button briey.

Status-LET A1 ashes, LED � remains off.

After 5 seconds without a button-press, the

actuator returns automatically to bus operation.

Switching off temporary manual operation

The device is in short-term manual mode.

• No button-press for 5 seconds.

- or -

• Press �button briey as many time as necessary

until the actuator leaves the shorttime manual

mode.

LEDs A1... no longer ash, but rather indicate the

output status.

Switching on permanent manual control

Operation using the button eld is programmed

and not disabled.

• Press the � button for at least 5 seconds.

LED � is illuminated, status LED A1ashes,

continuous manual mode is switched on.

Intended use

- Switching of electrothermal actuators for heaters

or cooling ceilings

- Installation in distribution boxes on DIN rail

according to EN 60715

Product characteristics

- Switching operation or PWM operation

- Actuators with characteristics opened or closed

without power

- Valve drives 230 V or 24 V controllable

- Outputs can be operated manually, construction

site mode

- Feedback in manual mode and in bus mode

- Disabling of individual outputs manually or via bus

- Overload-protected, short circuit-protected, error

message with LED

- Protection against jamming valves

- Forced position

- Various setpoints for forced position or emergency

operation in case of bus failure for summer or

winter

- Cyclical monitoring of the input signals can be

parameterized

- Feedback via bus, e.g. in case of mains failure,

overload or sensor failure

- Bus connection with standard bus connecting

terminal

PWM operation: electrothermal actuators only

have the positions "open" and "closed". In PWM

operation, switch-on and switch-off during the drive's

cycle time achieves an almost constant behaviour.

Overload protection

In order to protect the device and connected

actuators, in case of overload the device determines

which output is involved and switches it off.

Nonoverloaded outputs continue to work, which

means that the rooms in question are still heated.

- In case of major overloads the actuator initially

switches all off the outputs A1...A6 off.

- In the case of more minor overloads the actuators

switches output groups A1...A3 and/or A4...A6 off.

- The actuator determines the overloaded output in

up to 4 test cycles.

- If in the event of only a minor overload it is not

possible to unambiguously identify any output as

overloaded, then the actuator switches individual

outputs off one after the other.

- The overload can be reported to the bus for each

output.

LED display:

- Overload LED ashes slowly: Test cycle active.

- Overload LED ashes quickly: Test cycle

completed.

Operation

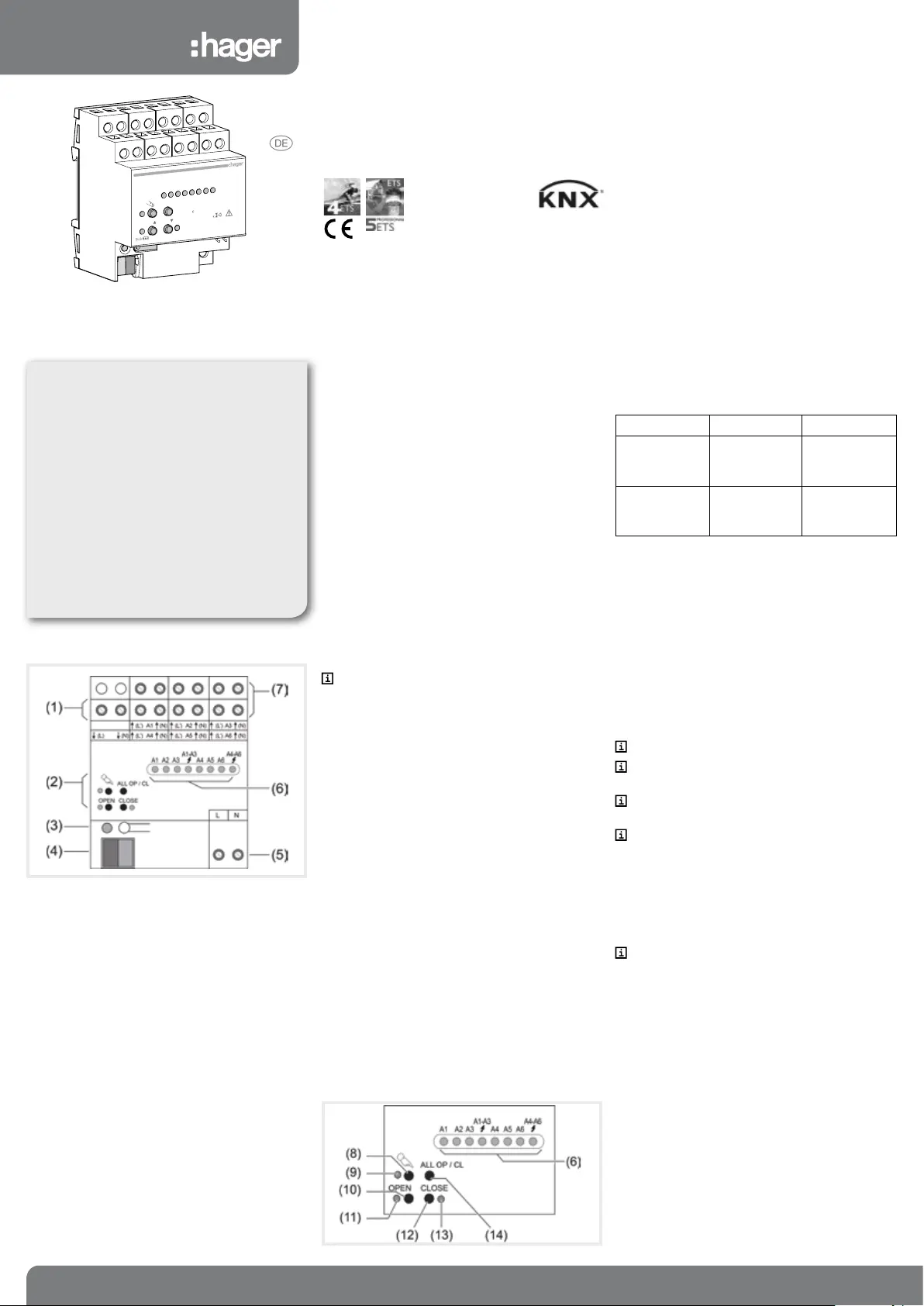

Figure 2: Operating elements – Overview

Device components

Figure 1: Front view

(1) Supply of electrothermal valve drives

(2) Button eld for manual operation

(3) Programming button and LEDs

(4) KNX connection

(5) Connection for mains supply

(6) Status LEDs for outputs

(7) Connection of electrothermal actuators

Function

System informatione

This device is a product of the KNX system and

complies with the KNX directives. Detailed technical

knowledge obtained in KNX training courses is a

prerequisite to proper understanding.

The function of this device depends upon the

software. Detailed information on loadable software

and attainable functionality as well as the software

itself can be obtained from the manufacturer´s

product database. Planning, installation and

commissioning of the device are carried out

with the aid of KNX-certied software. The latest

versions of product database and the technical

descriptions are available on our website.

Bn?.:

V2.7.0

TYF656T

A1A2A3A4A5A6

ALL OFF

ON

/

OFF

/

N5-N6 use only for

AC 230/240

V

A1-A4 µ 16 AX AC 250

V

A5-A6 max. 50 mA AC 250

V

L

N

30 V

s

TP / S

A7A8
