Seite 1/3
Please do the following to insure safe and easy installation:
A. Read installation instructions and review diagrams thoroughly before beginning.
B. For proper installation, secure sevices of a qualied electrician.
DISCONNECT THE POWER (CAUTION)
Always shut o power at the circuit breaker or disconnect fuse when installing or
or repairing this item.
1. WIRE POWER TO FIXTURE LOCATION
A. Be sure to consult l al codes before beginning electrical work.oc
B. Wire power through conduit that meets l al codes from the power sou e to oc rc
the site of the xture.
C. It is recommended that there is 100 inches of wire above grade at the end of the run
to allow for wiring of xture.
2. PREPARE FOOTING
A. To ensure adequate support, the concrete footing used to mount the 6638 pole
should be 16” cubed, or according to local building codes. See installation instruction
sheet for more details.
B. This pole is supplied with a cast metal template for installing the anchor bolts in
there correct position. - .See Drawing 2
C. Thread anchor bolts into the corners of the cast metal triangle template. Making sure
the end of the bolt measure 2” (but not less than 1-3/4” ) f
rom the bottom of the metal
template. -See D wing 2.ra
D. Pour cement into prepared hole and before cement sets place prepared template
with anchor bolts into cement. Making sure cast metal template rests on top of cement.

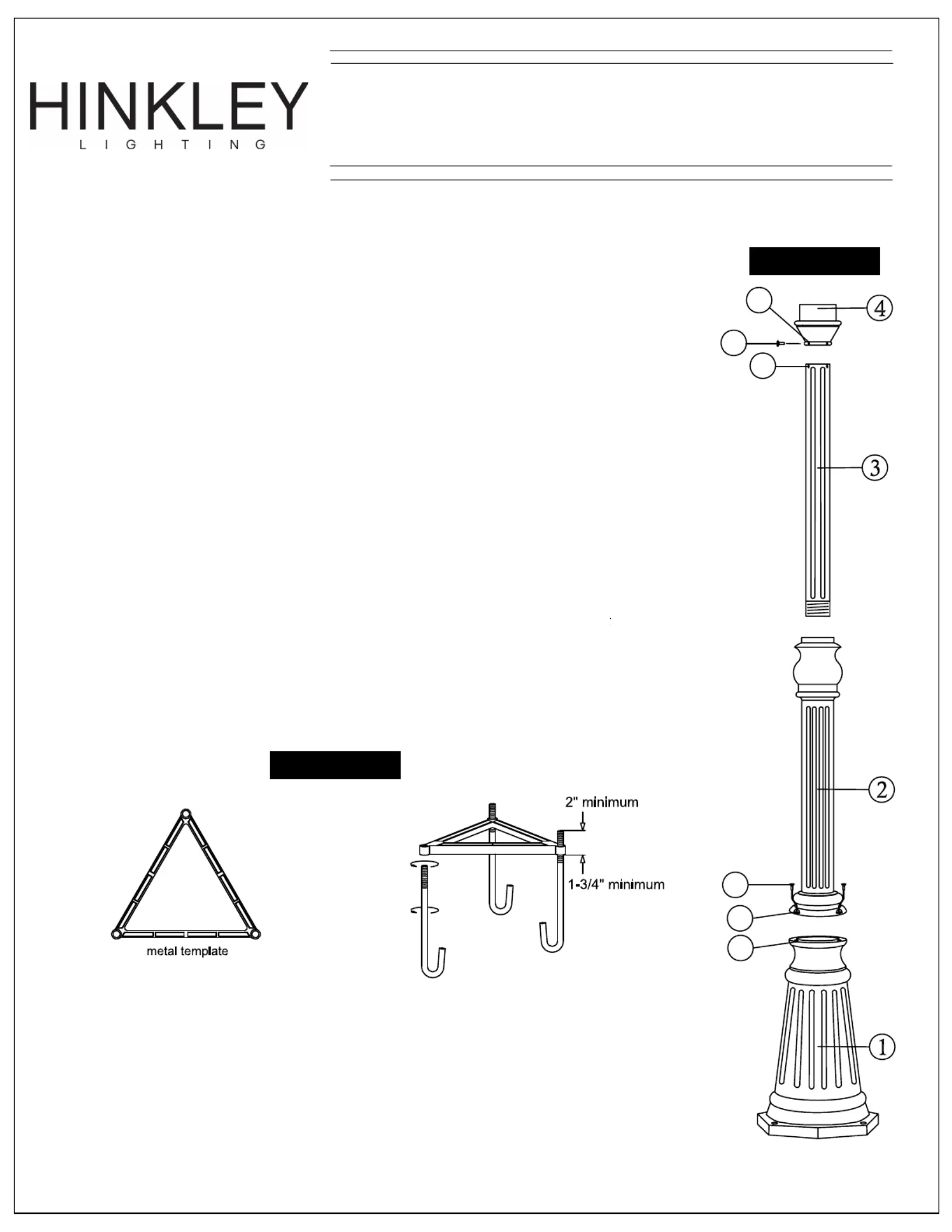

3. POLE ASSEMBLY
1. Take mid section of pole and line up holes with holes in the (2) (A) (B)
bottom section - for reference.(1) See Drawing 1
2. Thread allen head screws in place, to secure sections and .(C) (1) (2)
3. Thread top section into top of mid section and tighten. (3) (2)
4. (4) (3) Slip post cap over top of section . Making sure holes and are aligned.(D) (E)
5. Thread in at head phillip screws into hole to secure post cap . (F) (E) (4)
6. Pole is complete and may be mounted to footer.
F
D
E
DRAWING 2
DRAWING 1
A
C
B
Assembly and Installation instructions for 6638BK
METAL
TEMPLATE
W/ BOLTS
ELECTRICAL
SUPPLY
WIRE

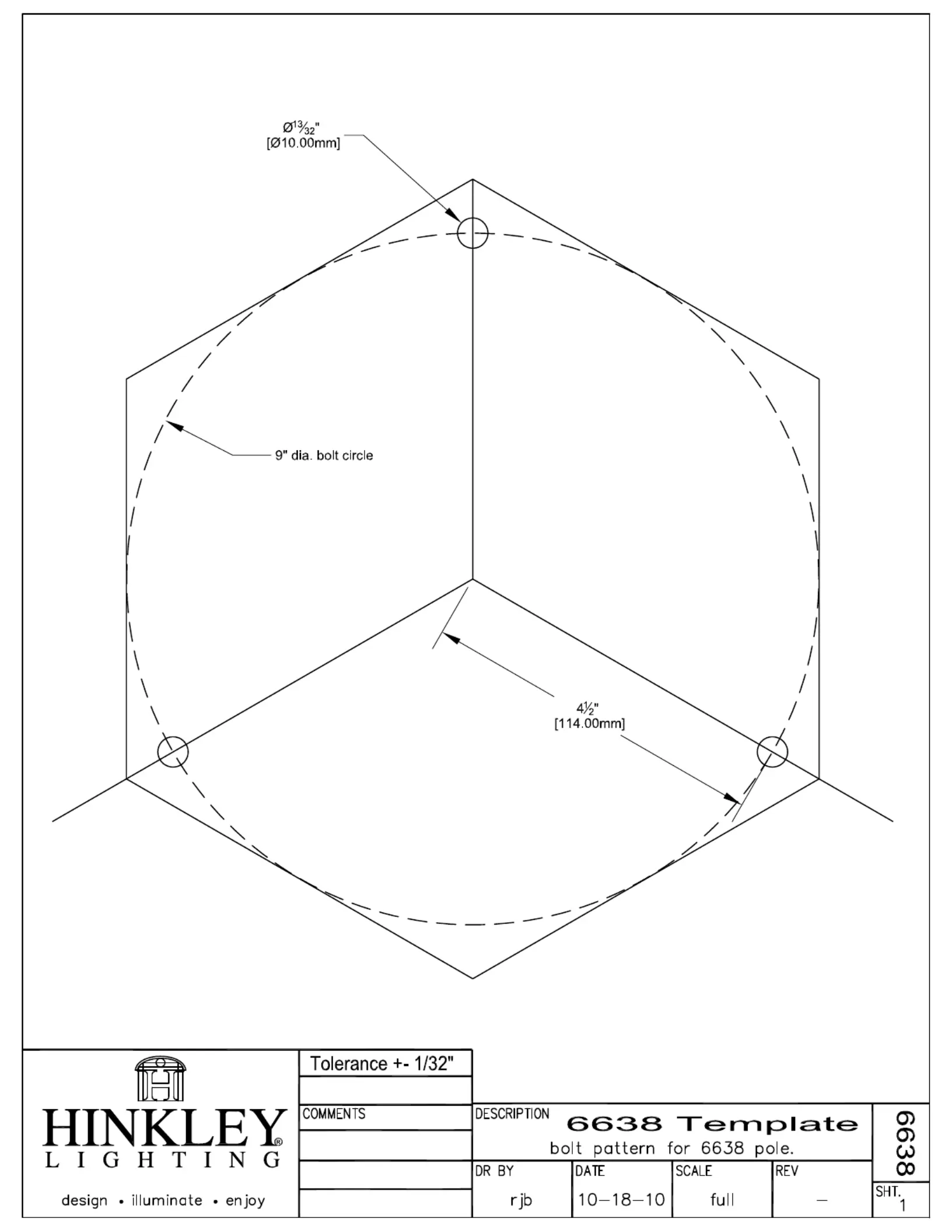

BOLT PATTERN
120
DEGREES
4-1/2”
9” bolt circle
use metal template provided with polecheck local building codes prior to installation
POST
BASE
CAP
NUT
HEX NUTS CAN BE
ADJUSTED TO
INSURE
POLE IS PLUM

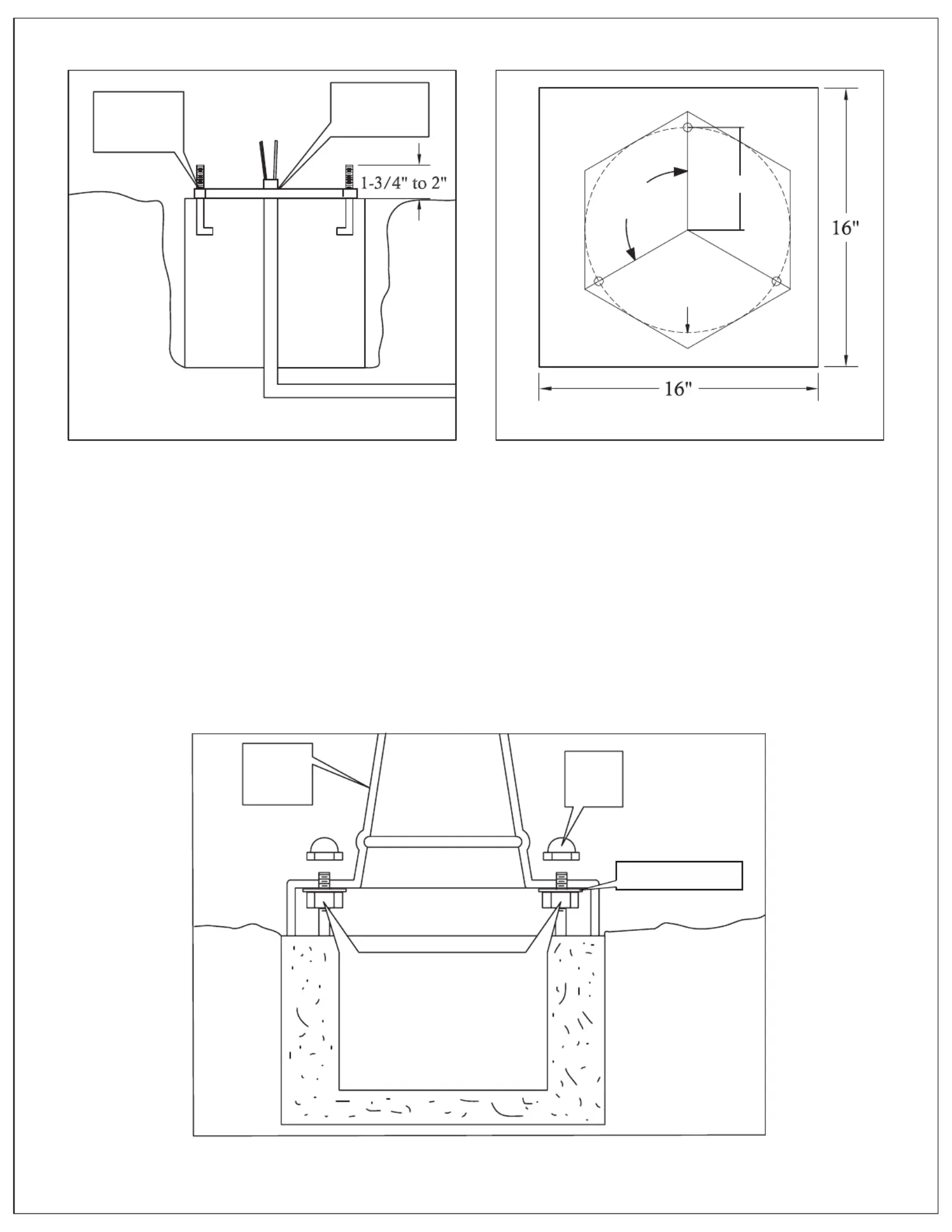

4. MOUNTING LAMP POST TO FOOTING
1. Thread hex nuts onto anchor bolts and adjust to that the tops of the hex nuts are above the 1-1/4”
footing - see Diagram C
2. Slip flat metal washer onto anchor bolts.
3. Slip pole base over anchor bolts and check for plum. If pole is not plum adjustments can be made to
hex nuts under base to correct any leaning.
4. When pole is plum finish installation by threading on the and tightening the cap nuts provided.
FOOTING DETAIL VIEW
Diagram C
FLAT WASHER
revised 12-01-10
