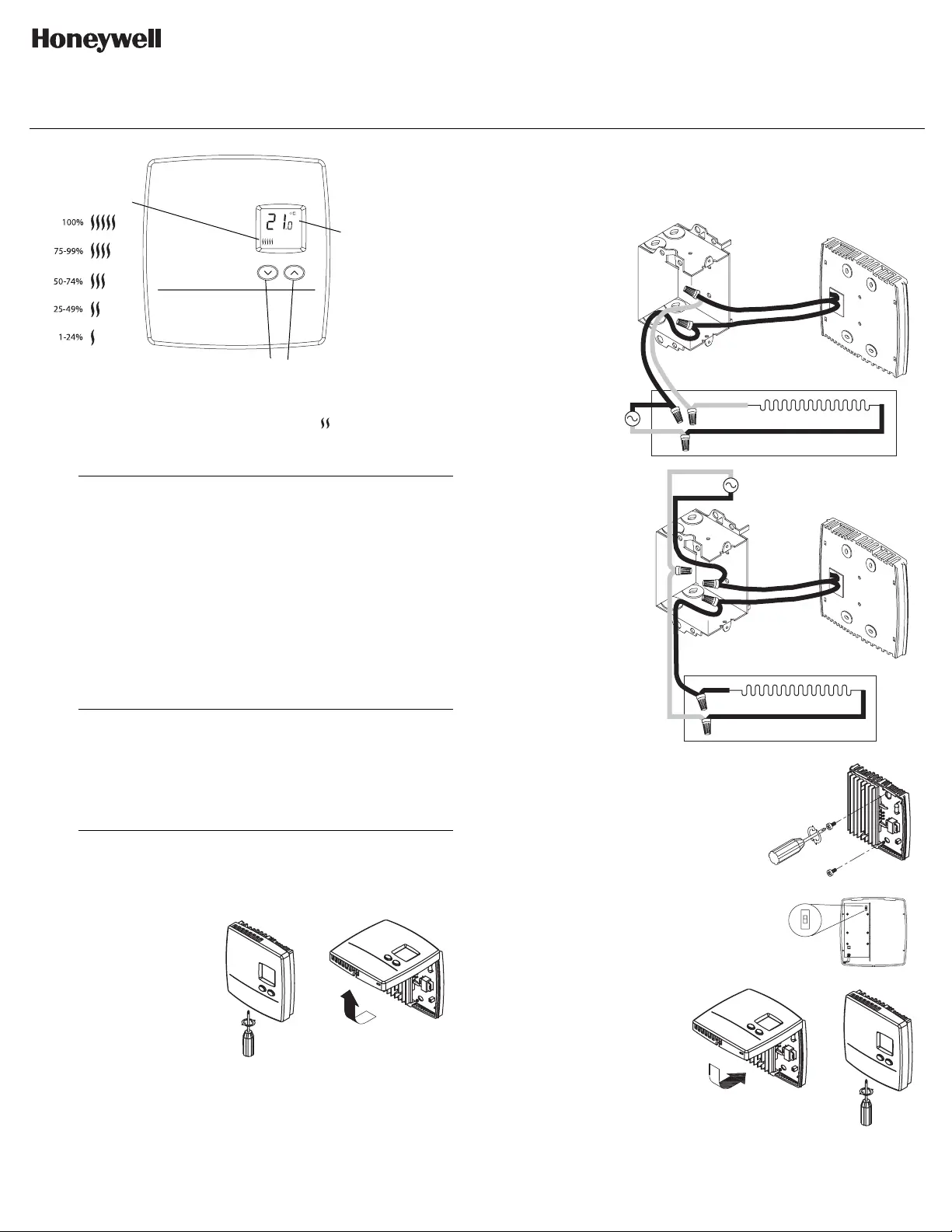

RLV3100 69-1917EF 7/24/06 1/2

The RLV3100 thermostat can be used to control an electric heating

system such as an electric baseboard heater, a radiant ceiling, a

radiant floor, a convector, etc.

The thermostat cannot be used with the following:

•a resistive load under 2 A

•a resistive load over 12.5 A

•systems driven by a contactor or a relay (inductive load)

•fan-forced heating systems

•central heating systems

•One (1) thermostat

•Two (2) 6-32 mounting screws

•Two (2) solderless connectors

TURN OFF POWER OF THE HEATING SYSTEM AT THE MAIN

POWER PANEL TO AVOID ELECTRIC SHOCK.

Loosen the screw

underneath the thermostat

and separate the front plate

from the base plate.

NOTE: The screw cannot be

completely removed.

Connect the thermostat wires to the power and to the load using

solderless connectors for copper wires. The thermostat wires are not

polarized; meaning either wire can be connected to the load or to the

power supply.

NOTE: All cables and connections must comply with local electrical

codes. This thermostat has tinned copper wires for line and load

connections. Special CO/ALR solderless connectors must be used if

these wires will be connected to aluminium conductors.

Mount the back plate to the electrical

box using the provided screws. Insert

the screws through the left or right pair

of mounting holes of the back plate.

Set the switch on the back of the

front plate to °C or °F to select

the temperature display format.

Re-install the front plate of

the thermostat on the base

plate and secure it in place

with the screw underneath

the thermostat.

NOTE: If there is a protective film or sticker on the display, peel it off.

n

Applications

1.

o

Supplied Parts

2.

p

Installation Procedure

3.

Temperature

display

Temperature adjustment buttons

Percentage of

heating time *

* The thermostat displays the percentage of heating time required to

maintain the desired temperature. For example, is displayed when

heating is activated 40 percent of the time.

2-wire Installation

4-wire Installation

RLV3100

User Guide

Digital Non-programmable Thermostat
