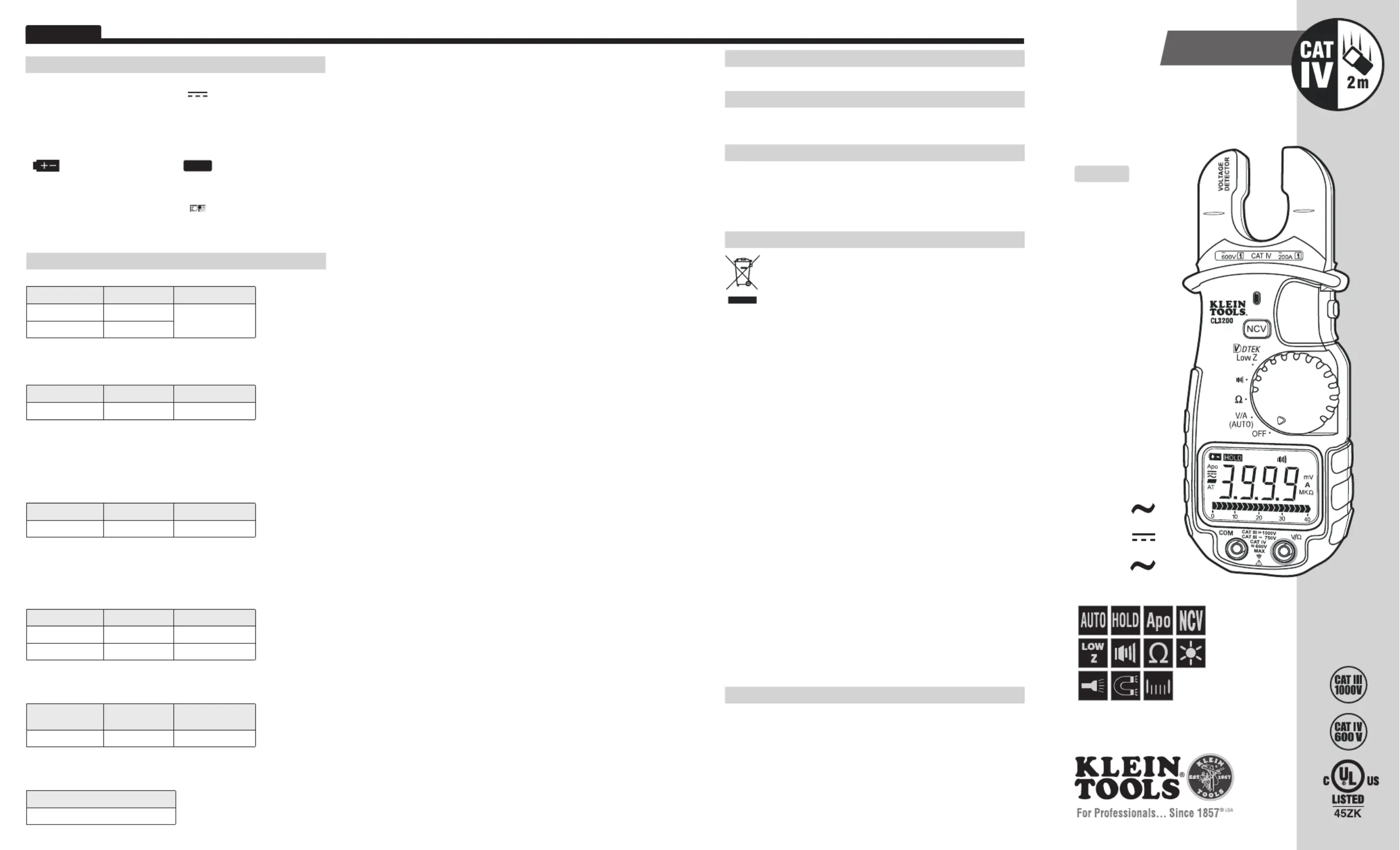

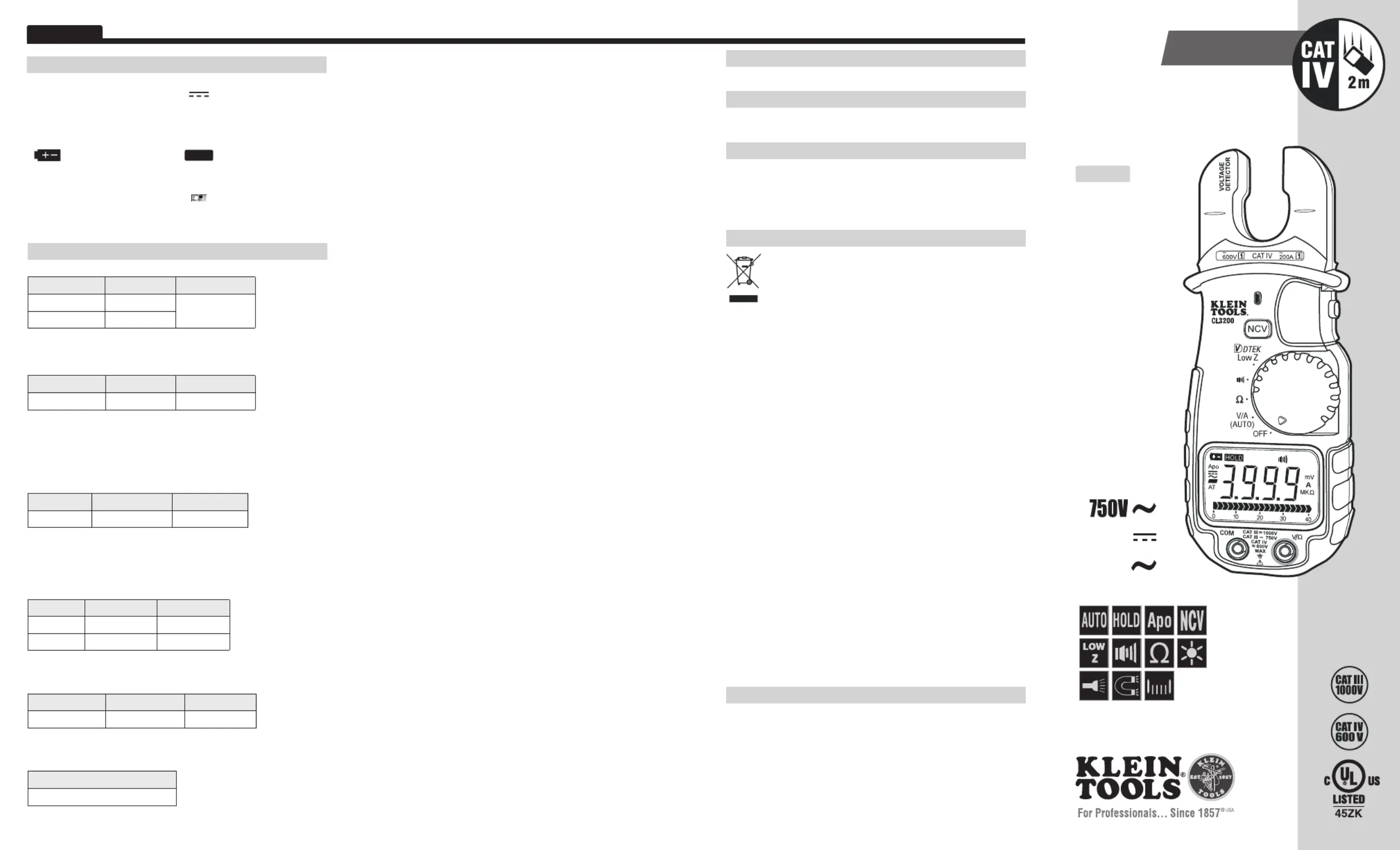

CUSTOMER SERVICE
KLEIN TOOLS, INC.
450 Bond Street
Lincolnshire, IL 60069
1-877-775-5346
customerservice@kleintools.com
www.kleintools.com
139680 Rev. 01/14 B
ENGLISH
• AUTO VOLTAGE
CURRENT
DETECTION
• BACKLIGHT
• WORKLIGHT
• LOW Z
• BAR GRAPH
• DATA HOLD
• 3-3/4 DIGIT
3999 COUNT LCD
• AUTO RANGE
• NON CONTACT
VOLTAGE TESTER
ENGLISH
ELECTRICAL SPECIFICATIONS
DC Voltage Measurement
Range Resolution Accuracy
1.0V ~ 1000V 0.001V ~ 1V
± (1.0% + 4 digits)
-1.0V ~ -1000V 0.001V ~ 1V
Overload Protection: 1000V
Input Impedance (Nominal):
>
10MΩ,
<
100pF
AC Voltage Measurement
Range Resolution Accuracy
1.2V
˜
750V 0.001 ~ 1V ± (1.5% + 3 digits)
Overload Protection: 750V RMS
Frequency Response: 45 to 400 Hz
Response: Averaging
Input Impedance (Nominal):
>
10MΩ,
<
100pF
Input Impedance (Low Z)
>
3kΩ,
<
200pF, up to 600V RMS
AC Current Measurement
Range Resolution Accuracy
0.9A ~ 200A 0.1A ± (2.0% + 8 digits)
Overload Protection:
• Current: 200A
Frequency: 45 to 1kHz
Response: Averaging
Resistance Measurement
Range Resolution Accuracy
400 Ω
˜
4M 0.1 Ω Ω
˜
0.001M Ω
± (1.0% + 4 digits)
40M 0.01MΩ Ω
± (2.0% + 4 digits)
Overload Protection: 600V RMS
Continuity Test
Overload Protection Open Circuit Voltage Threshold (Appx.)
600V RMS
<
0.44V
< 40Ω
Overload Protection: 600V RMS
Non Contact Voltage Detector
On Voltage
Appx. 25V AC and above
SYMBOLS USED ON LCD
~
AC Measurement
DC Measurement
-
Negative DC Value
AT
Auto Range Active
O
.L.
Overload: Range Exceeded
Apo
Auto Power-Off Active
Low Battery
HOLD
Hold Active
V
Voltage Measurement
A
Current in Amps
Ω
Resistance in Ohms
Continuity Test
k
Kilo 10
3
M
Mega 10
6
WARRANTY
www.kleintools.com/warranty
CLEANING
Turn instrument off and disconnect test leads. Clean the instrument by using
a damp cloth. Do not use abrasive cleaners or solvents.
STORAGE
Remove the batteries when instrument is not in use for a prolonged period of
time. Do not expose to high temperatures or humidity. After a period of storage
in extreme conditions exceeding the limits mentioned in the Specifications
section, allow the instrument to return to normal operating conditions before
using it.
DISPOSAL / RECYCLE
Do not place equipment and its accessories in the trash. Items
must be properly disposed of in accordance with local regulations.
1000V
200A
Instruction Manual
CL3200
ENGLISH
SYMBOLS
~
AC Alternating Current Warning or Caution
DC Direct Current Dangerous levels
DC/AC Voltage or Current Double Insulated Class II
Ground
Safe for disconnect
from live conductors
AC Source
CL3200
Instruction Manual
GENERAL SPECIFICATIONS
The Klein Tools CL3200 is an auto-ranging general-purpose clamp meter.
It measures AC / DC voltage, AC current, and resistance. It can also test
non-contact voltage and continuity.
• 2000 metersOperating Altitude:
• 10000 metersStorage Altitude:
• 0% to 80% at 32°F to 95°F (0°C to 35°C)Humidity:
0% to 70% at 32°F to 131°F (0°C to 55°C)
• Operating Temperature: 32°F to 104°F (0°C to 40°C) < 75% R.H.
• Storage Temperature: -4°F to 140°F (-20°C to 60°C) < 80% R.H.
• Accuracy Temperature: 64°F to 82°F (18°C to 28°C)
• Temperature Coefcient: 0.1*(specified accuracy) / °C
• 7" x 2.6" x 1.3"Dimensions:
• 8 oz. (227 g)Weight:
• Accurate for one yearCalibration:
• UL & cUL standard UL3111-1 ListedCertications:
• 2Pollution Degree:
• IP30Ingress Protection:
• 2 m (6 ft.)Drop Protection:
• CAT IV 600V, CATIII 1000VSafety Rating:
• ± (% of reading + # of least significant digits)Accuracy:

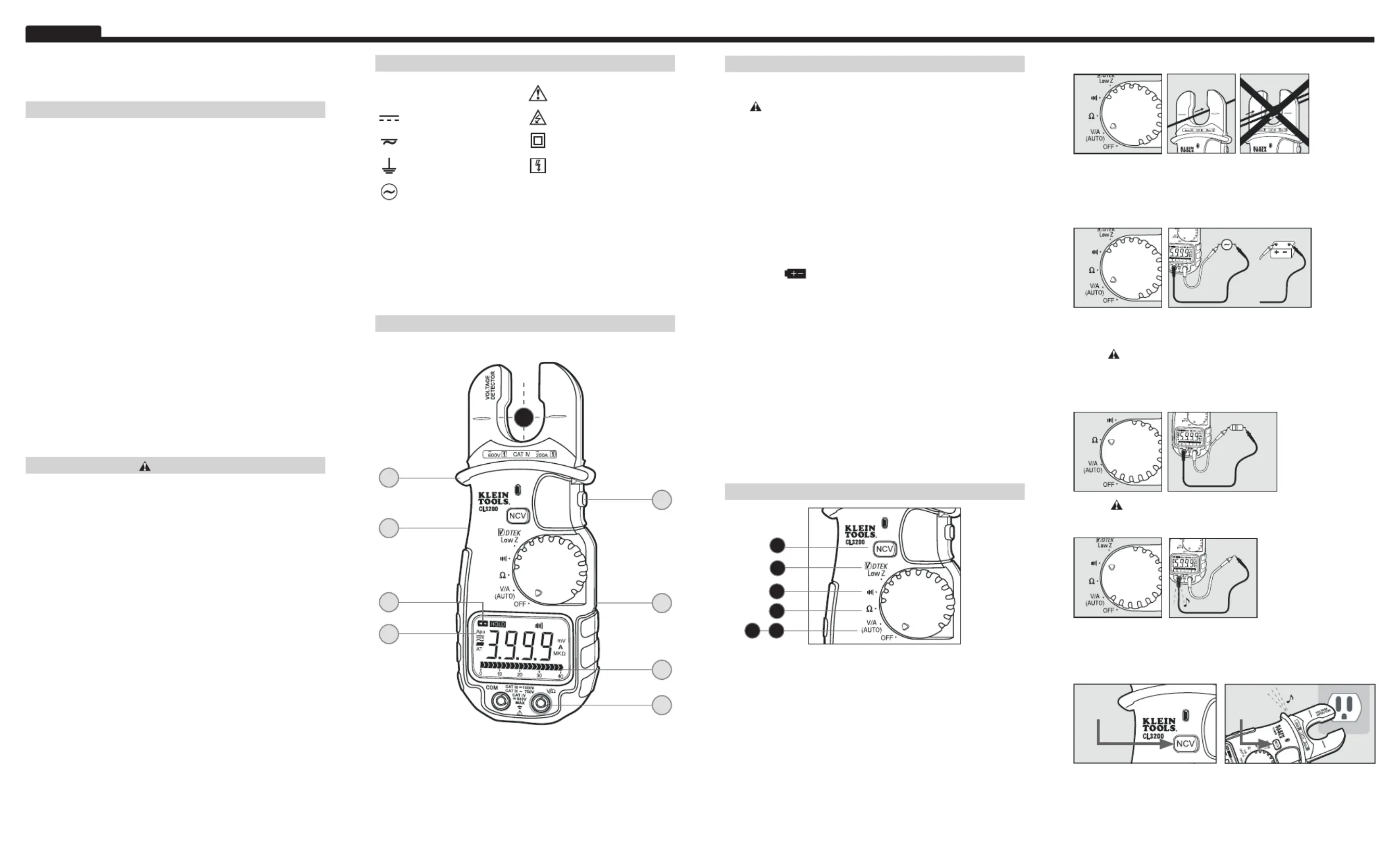

WARNINGS
To ensure safe operation and service of the tester, follow these instructions.
Failure to observe these warnings can result in severe injury or death.
• Before each use, verify meter operation by measuring
a known voltage or current.
• Never use the meter on a circuit with voltages that exceed the
category based rating of this meter.
• Do not use the meter during electrical storms, or in wet weather.
• Do not use the meter or test leads if they appear to be damaged.
• Ensure meter leads are fully seated, and keep fingers away from
the metal probe contacts when making measurements.
• Do not open the meter to replace batteries while the probes
are connected.
• Use caution when working with voltages above 60V DC,
or 25V AC RMS. Such voltages pose a shock hazard.
• To avoid false readings that can lead to electrical shock,
replace batteries if a low battery indicator appears.
• Unless measuring voltage or current, shut off and lock out
power before measuring resistance or capacitance.
• Always adhere to local and national safety codes. Use individual
protective equipment to prevent shock and arc blast injury where
hazardous live conductors are exposed.
A. Use CATIII 1000V or CAT IV 600V rated leads or higher.
Do not attempt to measure more than 1000V DC or 750V AC
B. Keep hands below line when measuring high current levels.
C. Auto Power-Off (Apo)
• Device will power off after 30 minutes non-use.
• Turn the dial or press a button to wake.
• Holding HOLD button while turning on disables Auto Power-Off.
D. Hold / Backlight / Worklight
• Press to hold the current input on the display.
• Press again to return to live reading.
• Press for 2 seconds to enable / disable lights.
• Using lights decreases battery life.
E. F. Battery Replacement
• When indicator is displayed on the LCD, batteries must be
replaced.
• Remove the back screw and replace 2 x AAA batteries.
G. Magnetic Back
• Attach instrument to metal for hands-free use.
H. Bar Graph
• The bar graph shows an approximate analog representation
of a measurement.
• The bar graph responds much faster than the digital display.
• The scale of the bar graph is zero to the maximum reading of
the selected range.
1. AC Current:
<
200A
• Center wire in guides for best accuracy.
• Opposing currents cancel (use line-splitter when necessary).
2. AC / DC Voltage:
<
750V AC or 1000V DC
AC / DC Voltage (Low Z):
<
600V
• The tester will automatically choose AC voltage or DC voltage or
AC current based on the inputs detected.
• AUTO will be displayed when no input is detected.
• DO NOT Use low impedance mode at voltages greater (Low Z)
than 600 V.
• Use low impedance mode to reduce ghost voltages.(Low Z)
3. Resistance:
<
40M
Ω
• measure resistance on a live circuit.Do not
4. Continuity
• Display shows resistance.
• Buzzer sounds if less than about 40
Ω.
B
A
D
H
C
G
E
1
F
5. Non Contact Voltage (NCV):
>
25V AC
• NCV works independently of other tester functions. The function
knob can be in the off position.
• Press and hold.
1 2
4
3
5
2
FUNCTION INSTRUCTIONS
FEATURE DETAILS
FEATURE DETAILS
PRESS
and
HOLD
PRESS
and
HOLD
SERVICIO AL CLIENTE
KLEIN TOOLS, INC.
450 Bond Street
Lincolnshire, IL 60069, EE. UU.
1-877-775-5346
customerservice@kleintools.com
www.kleintools.com
139680 Rev. 01/14 B
ESPAÑOL
• DETECCIÓN
AUTOMÁTICA DE
CORRIENTE Y
VOLTAJE
• RETROILUMINACIÓN
• LUZ DE TRABAJO
• BAJA Z
• GRÁFICO DE BARRAS
• RETENCIÓN DE DATOS
• PANTALLA LCD DE
3-3/4 DÍGITOS CON
RECUENTO DE 3999
• RANGO
AUTOMÁTICO
• PROBADOR DE
VOLTAJE SIN
CONTACTO
ESPAÑOL
ESPECIFICACIONES ELÉCTRICAS
Medición de voltaje de CD
Rango Resolución Precisión
1,0V ~ 1000V 0,001V ~ 1V
± (1,0% + 4 dígitos)
-1,0 V ~ -1000 V 0,001V ~ 1V
Protección contra sobrecarga: 1000V
Impedancia de entrada (Nominal):
>
10MΩ,
<
100pF
Medición de voltaje de CA
Rango Resolución Precisión
1,2V
˜
750V 0,001 ~ 1V ± (1,5% + 3 dígitos)
Protección contra sobrecarga: 750V RMS
Respuesta de frecuencia: 45Hz a 400Hz
Respuesta: Promedio
Impedancia de entrada (Nominal):
>
10MΩ,
<
100pF
Impedancia de entrada (Baja Z):
>
3kΩ,
<
200pF, hasta 600V RMS
Medición de corriente CA
Rango Resolución Precisión
0,9A ~ 200A 0,1A ± (2,0% + 8 dígitos)
Protección contra sobrecarga:
• Corriente: 200A
Frecuencia: 45Hz a 1kHz
Respuesta: Promedio
Medición de resistencia
Rango Resolución Precisión
400Ω
˜
4M 0,1Ω Ω
˜
0,001MΩ
± (1,0% + 4 dígitos)
40M 0,01MΩ Ω
± (2,0% + 4 dígitos)
Protección contra sobrecarga: 600V RMS
Prueba de continuidad
Protección contra
sobrecarga:
Voltaje de
circuito abierto
Umbral (aprox.)
600V RMS
<
0,44V
< 40Ω
Protección contra sobrecarga: 600V RMS
Detector de voltaje sin contacto
Voltaje
Aprox. 25V CA y superior
SÍMBOLOS QUE SE UTILIZAN EN LA PANTALLA LCD
~
Medición de CA
Medición de CD
-
Valor negativo de CD
AT
Rango automático activo
O
.L.
Sobrecarga: rango
excedido
Apo
Apagado automático
activo
Batería baja
HOLD
Retención activa
V
Medición de voltaje
A
Corriente en amperios
Ω
Resistencia en ohmios Prueba de continuidad
k
Kilo 10
3
M
Mega 10
6
GARANTÍA
www.kleintools.com/warranty
LIMPIEZA
Apague el instrumento y desconecte los cables de prueba. Limpie el instrumento
con un paño húmedo. No utilice solventes ni limpiadores abrasivos.
ALMACENAMIENTO
Retire las baterías si no va a utilizar el instrumento durante un tiempo
prolongado. No lo exponga a la humedad ni a altas temperaturas. Luego de un
período de almacenamiento en condiciones extremas que sobrepasen los límites
mencionados en la sección Especificaciones, deje que el instrumento vuelva a
las condiciones de funcionamiento normales antes de utilizarlo.
ELIMINACIÓN/RECICLAJE
No arroje el equipo ni sus accesorios a la basura. Los
elementos se deben desechar correctamente de acuerdo
conlas regulaciones locales.
750 V
1000 V
200 A
Manual de
instrucciones
CL3200
