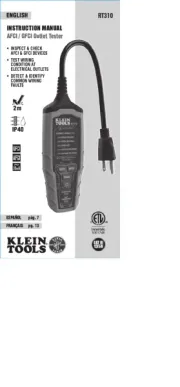

INSTRUCTION MANUAL
ENGLISH
FRANÇAIS pg. 13
ESPAÑOL pág. 7
AFCI / GFCI Outlet Tester
• INSPECT & CHECK
AFCI & GFCI DEVICES
• TEST WIRING
CONDITION AT
ELECTRICAL OUTLETS
• DETECT & IDENTIFY
COMMON WIRING
FAULTS
RT310
2
m
IP40
2

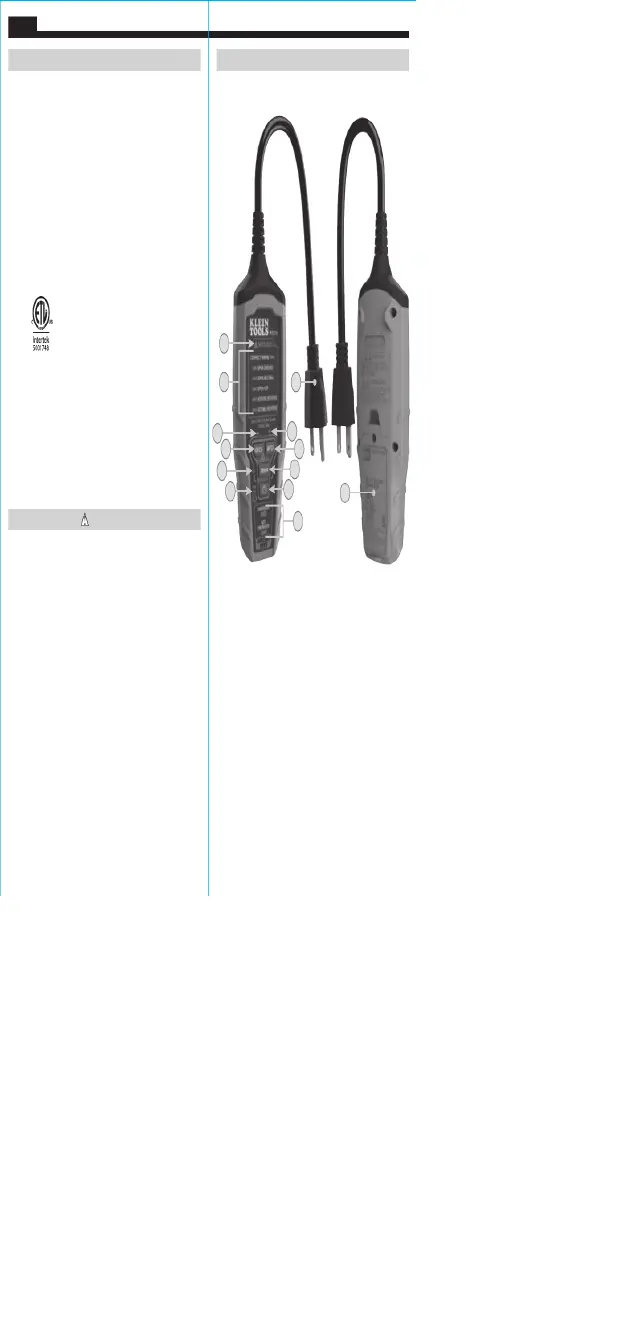

GENERAL SPECIFICATIONS
RT310 is an electrical outlet tester that tests the wiring condition at an
electrical outlet, and inspects GFCI and AFCI devices. It is designed for
use with North American 120V electrical outlets.
• Operating Altitude: 6562 ft. (2000m)
• Relative Humidity: <85% non-condensing
• Operating Temp: ° ° ° °32 to 122 F (0 to 50 C)
• Storage Temp: ° ° ° °-4 to 140 F (-20 to 60 C)
• Dimensions: 7.4" x 2.3" x 1.3" (188 x 58 x 32 mm)
• Weight: 8.5 oz. (241 g) including batteries
• Battery Type: 3 x 1.5V AAA Alkaline
• Standards: Conforms to UL STD.61010-1,
61010-2-030, 1436
Certified to CSA STD C22.2 # 61010-1,
61010-2-030, 160
• Pollution degree: 2
• Drop Protection: 6.6 ft. (2m)
• Ingress Protection: IP40 dust resistant
• Safety Rating: CATIII 135V
CAT III: Measurement category III is applicable to test and
measuring circuits connected to the distribution part of the
building’s low-voltage MAINS installation.
Specifications subject to change.
ENGLISH
WARNINGS
To ensure safe operation and service of the tester, follow these
instructions. Failure to observe these warnings can result in
severe injury or death.
• RT310 is designed for use with North American 120V electrical
outlets. connect to higher voltage electrical supplies.DO NOT
• Prior to use, always verify tester operation by testing on a known
live and correctly wired electrical outlet.
• DO NOT attempt an AFCI testing event on a circuit with powered
ON equipment or devices.Remove or power OFF prior to testing.
• DO NOT use if the tester appears damaged in any way.
• The tester is intended for indoor use only.
• Other equipment or devices attached to the circuit being tested
could interfere with the tester. Clear the circuit before testing.
• This tester only detects common wiring problems. Always
consult a qualified electrician to resolve wiring problems.
• DO NOT attempt AFCI, GFCI, or 30mA ground fault testing on an
incorrectly wired outlet. Consult a qualified electrician to resolve
wiring problems.
4
ENGLISH
OPERATING INSTRUCTIONS
RT310 is designed for use with North American 120V
electrical outlets. DO NOT connect to higher voltage
electrical supplies.
POWER ON/OFF
Press the Power button
1
to power ON/OFF the tester. When the
tester is powered ON, the Power ON indicator
8
will be illuminated.
The tester will automatically power OFF after 2 minutes of inactivity
to conserve battery life.
NOTE:
Always power ON the tester before inserting the plug
9
into
an electrical outlet.
WIRING CONDITION
Prior to use, always verify tester operation by testing on a
known live and correctly wired electrical outlet.
With the tester powered ON and inserted into the outlet, the wiring
condition will be indicated by the wiring condition indicators
3
.
If the outlet is energized, the
Hazardous Voltage Warning
2
and the
Energized Indicator
4
will be illuminated. The wiring condition will
be communicated as detailed in the table below.
If the tester indicates that the outlet is not wired correctly,
consult a qualied electrician.
NOTE: Conditions NOT indicated include, but are not limited to,
quality of ground, multiple hot wires, reversal of neutral and ground
conductors, and combinations of defects other than dual open neutral
and ground.
NOTE: All appliances or equipment on the circuit being tested should be
unplugged to help reduce the possibility of erroneous readings.
Hot
(Black)
Neutral
(White)
Ground (Green)
Indicator not illuminated
Indicator illuminated
Indicator blinking
INDICATOR
CORRECT WIRING
OPEN GROUND
OPEN NEUTRAL
OPEN HOT
HOT/GROUND REVERSED
HOT/NEUTRAL REVERSED
CIRCUIT ENERGIZED
CIRCUIT NOT ENERGIZED
HAZARDOUS VOLTAGE WARNING
WIRING CONDITION
WIRED CORRECTLY
OPEN GROUND
OPEN NEUTRAL
OPEN HOT
DUAL OPEN (NEUTRAL AND GROUND)
REVERSED HOT/NEUTRAL
REVERSED HOT/GROUND
