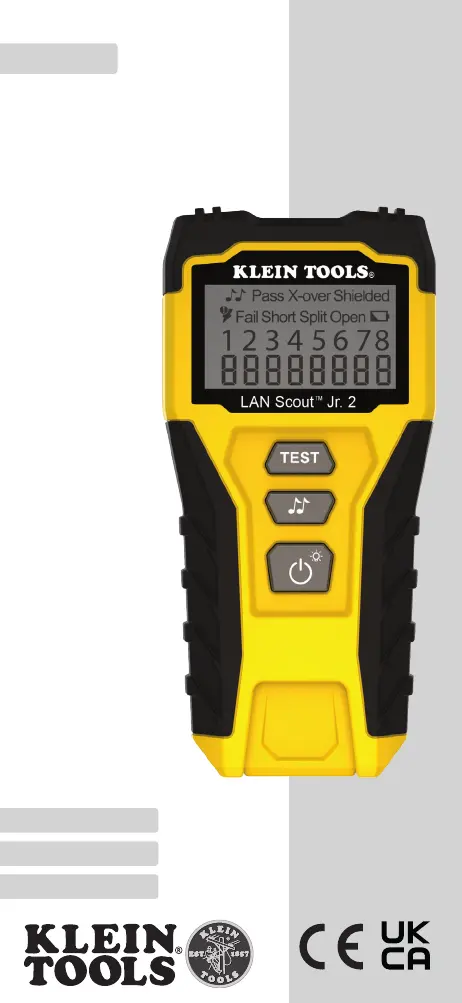

Seite 1/32

Dwg Name: VDV526-200E-1390462ART

Dwg No: 1390462

ECO No: 041006 Rev: B

Pkg Dwg Ref: 1290186

Finish Coat Requirements: N/A

INSTRUCTION MANUAL

FRANÇAIS pg. 17

DEUTSCH pg. 9

LAN Scout™ Jr. 2

ENGLISH

VDV526-200

NOTE: Pull out tab

on back of tester

before first use.

ESPAÑOL pg. 25

VDV526-200E-1390462ART.indd 1VDV526-200E-1390462ART.indd 1 7/30/21 8:47 AM7/30/21 8:47 AM

Dwg Name: VDV526-200E-1390462ART

Dwg No: 1390462

ECO No: 041006 Rev: B

Pkg Dwg Ref: 1290186

Finish Coat Requirements: N/A

ENGLISH

GENERAL SPECIFICATIONS

The Klein Tools LAN Scout™ Jr. 2 is a portable data cable tester. It tests and

troubleshoots RJ45 terminated cables and provides tone generation for

cable tracing.

•

Dimensions: 5.3" x 2.4" x 1.2" (13.5 x 6.1 x 3.0 cm)

•

Weight: 4.0 oz. (115 grams) with battery and remote

•

Operating temperature: 0°C to 50°C / 32°F to 122°F

•

Storage temperature: -20°C to 60°C / -4°F to 140°F

•

Humidity: 10% to 90%, non-condensing

•

Maximum Voltage between any two connector pins without damage:

RJ Jack: 66V DC or 55V AC

•

Battery Life typical: 2x AAA Alkaline batteries Standby: 3 years Active: 80 hours

•

Cable types: Shielded or Unshielded; Cat-7, Cat-6/6A, Cat-5E, Cat-3

•

Maximum Cable Length: 2000 feet (610 meters)

•

Minimum Cable Length for Split pair Detection: 1.5 feet (0.5 meters)

WARNINGS

To ensure safe operation and service of the tester, follow these instructions.

Failure to observe these warnings can result in severe injury or death.

•

The LAN Scout™ Jr. 2 is designed for use on unenergized cabling systems.

Connecting the LAN Scout™ Jr. 2 to live AC power may damage it and pose a

safety hazard for the user.

•

Improperly terminated RJ plugs have the potential to damage the jacks on

the LAN Scout™ Jr. 2. Visually inspect an RJ plug before inserting it into the

tester. Plugging 6-position plugs into the 8-position jack on the tester has

the potential to damage the outer-most contacts of the jack unless the plug is

specifically designed for that purpose.

SYMBOLS ON TESTER

Warning or Caution

Always wear approved eye protection

Do NOT use on energized circuits

Read instructions

Conformité Européenne - Conforms with European

Economic Area directives

UKCA: UK Conformity Assessment

This symbol indicates that equipment and its

accessories shall be subject to a separate collection

and correct disposal

VDV526-200E-1390462ART.indd 2VDV526-200E-1390462ART.indd 2 7/30/21 8:47 AM7/30/21 8:47 AM

Produktspezifikationen

Marke:	Klein Tools
Kategorie:	Messung
Modell:	VDV526-200
Display-Typ:	LCD
Breite:	64 mm
Tiefe:	130 mm
Gewicht:	122 g
Produkttyp:	Verdrilltes Doppelkabelprüfgerät
Produktfarbe:	Black, Yellow
Akku-/Batterietyp:	AAA
Akku-/Batterietechnologie:	Alkali
Höhe:	25 mm
Eingebautes Display:	Ja
Automatische Abschaltung:	Ja
Einfach zu bedienen:	Ja
Anzahl unterstützter Akkus/Batterien:	2
Ein-/Ausschalter:	Ja
Akkus/Batterien enthalten:	Ja
Kabeltyp:	Cat7, Cat6/6A, Cat5E, Cat3
Unterstützte Steckverbinder:	RJ-45
Testtyp:	Kontinuitätsprüfung
