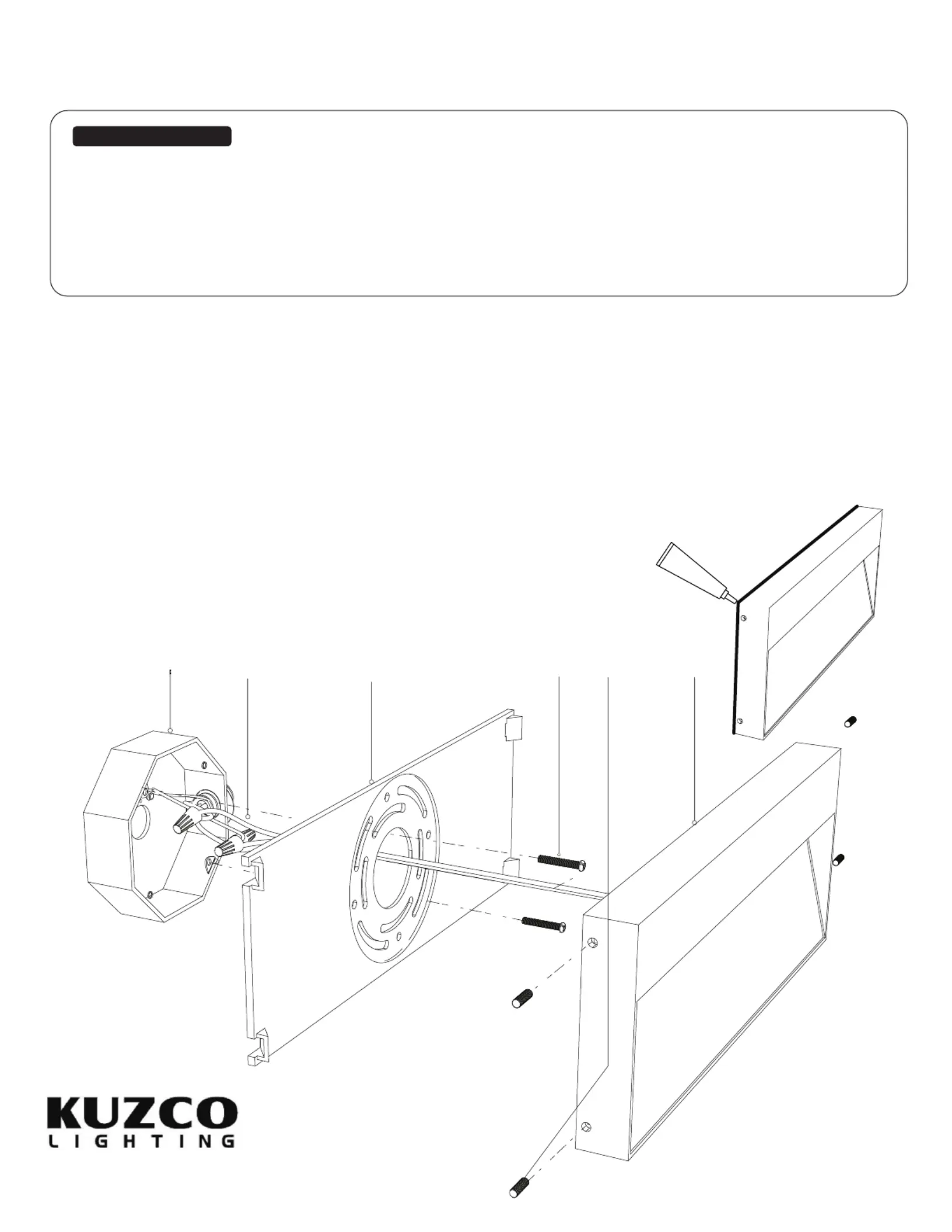

Remove the fixture from its original packaging. Remove the

mounting plate from within the canopy backplate (1c)(2b)

by unthreading four set screws Attach this backplate (2a).

(2b)(1a)(1d) to the electrical junction box , using screws

provided in the hardware package.

Attach the canopy backplate to the mounting plate, which

is attached to the electrical junction box on the wall. First

attach all wiring with the provided marrets (white to (1b)

white “N”, black to black “L”, ground to ground “G”). Now

place the canopy onto the mounting plate (2b)(1c). As

you move the backplate align the holes to the holes on the

mounting plate Next, turning clockwise tighten all (1c).

four set screws util the fixture is secure to the wall.(2a)

To prevent moisture from entering the outlet box and

causing a short, seal around the top and side perimeter

between the fixture and the wall surface with weather

resistant caulking (illustration 1). The space at bottom

should be left un-caulked to prevent moisture build-up.

Apply a small amount of weather resistant caulking around

the side perimeter between the cap nut and mounting

plate.

Illustration 1.

You have now completed the installation of your fixture,

enjoy.

Caulking

INSTALLATION SHEET

EW71412

LED Exterior Wall Sconce

START FROM HERE

•

Make sure power is completely off at the fuse box.

•

Have your fixture installed by a qualified licensed electrician

•

Prepare everything in a clear area.

•

Wear gloves at all times during this installation.

•

Read instructions carefully before you start assembly.

•

Keep this instruction sheet for future reference.

Technical Support: 1-877-452-6858
