INSTALLATION SHEET

MP18203

Ceiling LED Multi Pendant

START FROM HERE

•

Make sure power is completely off at the fuse box.

•

Have your fixture installed by a qualified licensed electrician

•

Prepare everything in a clear area.

•

Wear gloves at all times during this installation.

•

Read instructions carefully before you start assembly.

•

Keep this instruction sheet for future reference.

Technical Support: 1-855-855-8926

Please Note:

• For dimming, a TRIAC type of dimmer is required.

CAUN:TIO CAUN:URJUNCTIO HEAVY FIXTE, THE TIOOXN B

NDBRNED BRNAANAMONEES TO E EIFORCEFOE ISTLLTIO. LL UNTIG SCREWS

MUCRMUMNDDRST SEW INTO A MINI OF ” OF WOO1D BEHI THE YWLL. O OT ADN

MOHAUNT TIS FIXTST TO URE JUDRYWLL

. (Bereatscres su athll wood you wetd ino, i

secrecrsseamscestsryud o tthe o b/iling joi b dethehind wa) ll

2c.

2b.

1g.

2a.

1a.

1b.

1c.

1e.

1d.

1f.

1h.

1i.

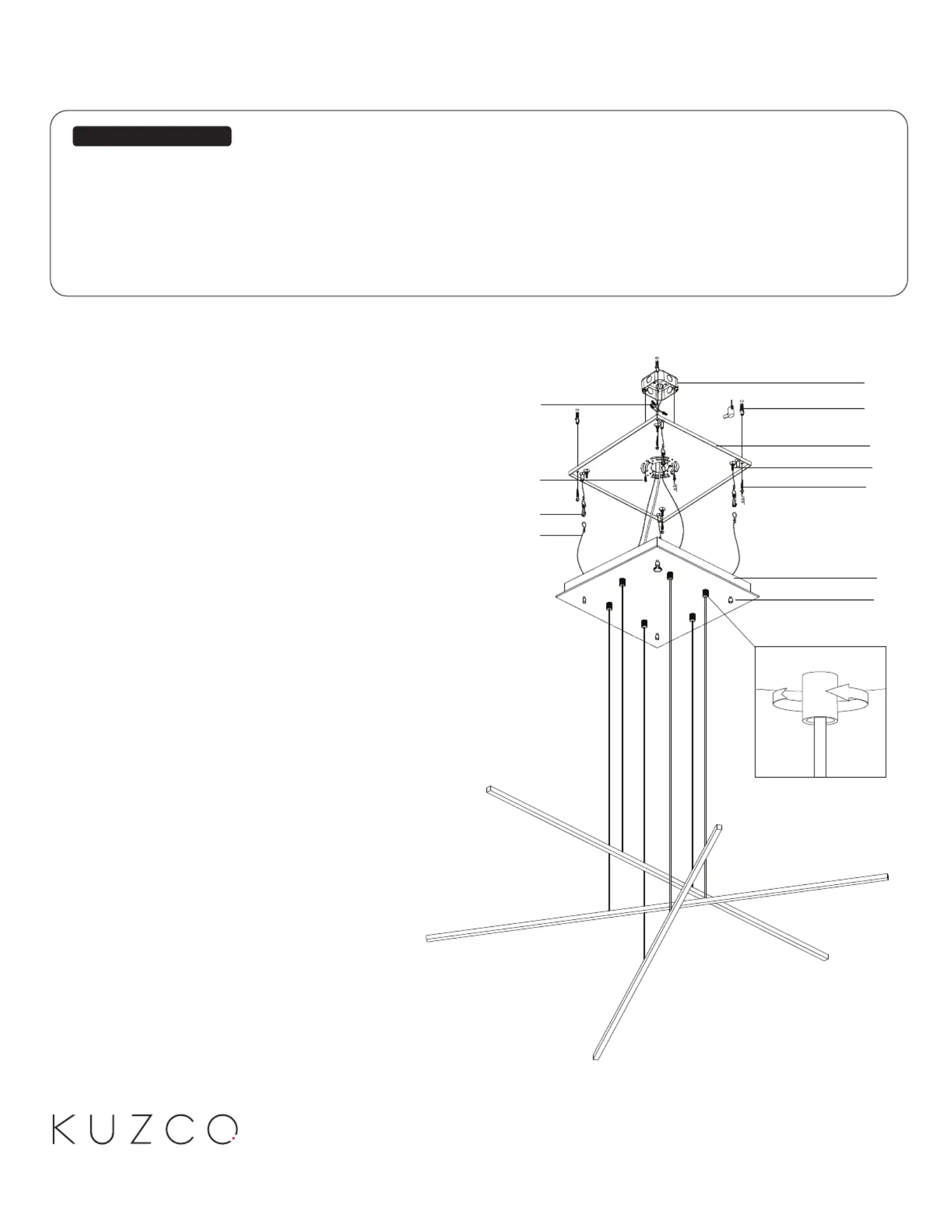

Remove the fixture from its original packaging. Next,

remove the mounting plate from within the canopy (1c)

cover by removing the four decorative nuts .(2a)(2b)

Install the mounting plate to the junction box (1c)(1a)

with screws . For additional security add screws (1f)(1d)

and plastic anchors through the mounting plate (1b) (1c)

to the ceiling and wood backing. To set the fixture

hanging height (120” maximum), loosen the wire lock nut

(2c) (2a)at the canopy where the wire comes out from.

Push the wire up to shorten, or pull the wire down to

lengthen. When you have selected your desired length,

just tighten back the nut and the wire will be held(2c)

tightly in place.

You are now ready to mount the canopy to the (2a)

mounting plate . First, (1c)connect all wires correctly G

ground to ground, N neutral wire (white to white), L live

wire (black to black) with provided marrettes from (1g)

the hardware package. Attach the steel wires (1i)

through the clips (1h). Align the four threaded studs (1e)

hanging downward from the mounting plate to the (1c)

four holes inside the canopy . Push the canopy (2a)(2a)

up towards the ceiling so the threaded studs clears (1e)

through the holes in the canopy cover . Next, screw (2a)

on the four decorative nuts this will secure the (2b)

canopy to the mounting plate .(2a)(1c)

You have now completed the installation of your

fixture, enjoy.

1.

2.

3.

4.
