INSTALLATION SHEET

EW19408

LED Exterior Wall Sconce

START FROM HERE

19054 28th Avenue Surrey, BC Canada V3Z 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W: kuzcolighting.com

caulking

• Make sure is POWERCOMPLETELY OFF at the fuse box

• Have your fixture installed by a qualified licensed electrician

• Prepare everything in a clear area

• Wear gloves at all times during this installation

• Read instructions carefully before you start assembly

• Keep this installation sheet for future reference

Technical Support: 1-855-855-8926

Please Note:

• This Kuzco LED fixture comes with pre-wired LED module(s)

• Unless instructed, Do Not touch any part of the LED module(s) as any unnecessary

contact with the module could cause permanent damage

• Use ELV (Electronic Low Voltage) or TRIAC type of dimmer for dimming application

• 120V input

20210414

1a.1b.1c.1e.2f.2a.

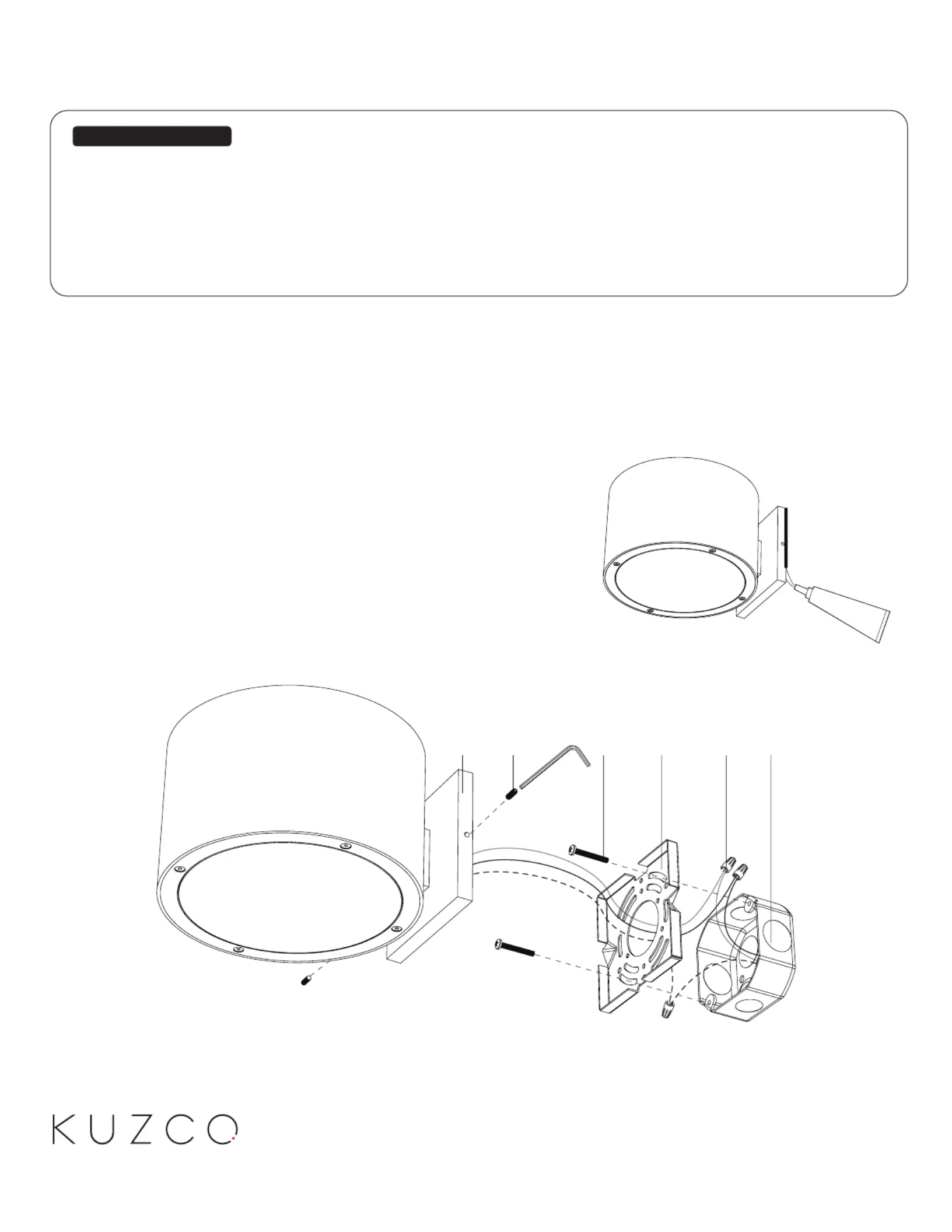

Illustration 1

To prevent moisture from entering the electrical junction

box (1a) and causing a short, seal around the top and side

perimeter between the fixture and the wall surface with

weather resistant caulking . The space at (Illustration 1)

the bottom should be left un-caulked to prevent moisture

build up

1.

2.

3.

4.

5.

6.

Remove fixture from its original packaging

Separate the mounting platefrom the canopy by (1c) (2a)

removing the set screws with allen key(2f)

Attach mounting plate to electrical junction box (1c)(1a)

using junction box screws provided in hardware package(1e)

Make proper electrical connections ( to “L”, blackhot

whiteground“GND”)(1b) to “N”, neutral to with wire nuts

provided in hardware package

Secure canopy to mounting plate with set screws (2a)(1c)

(2f) and allen key
